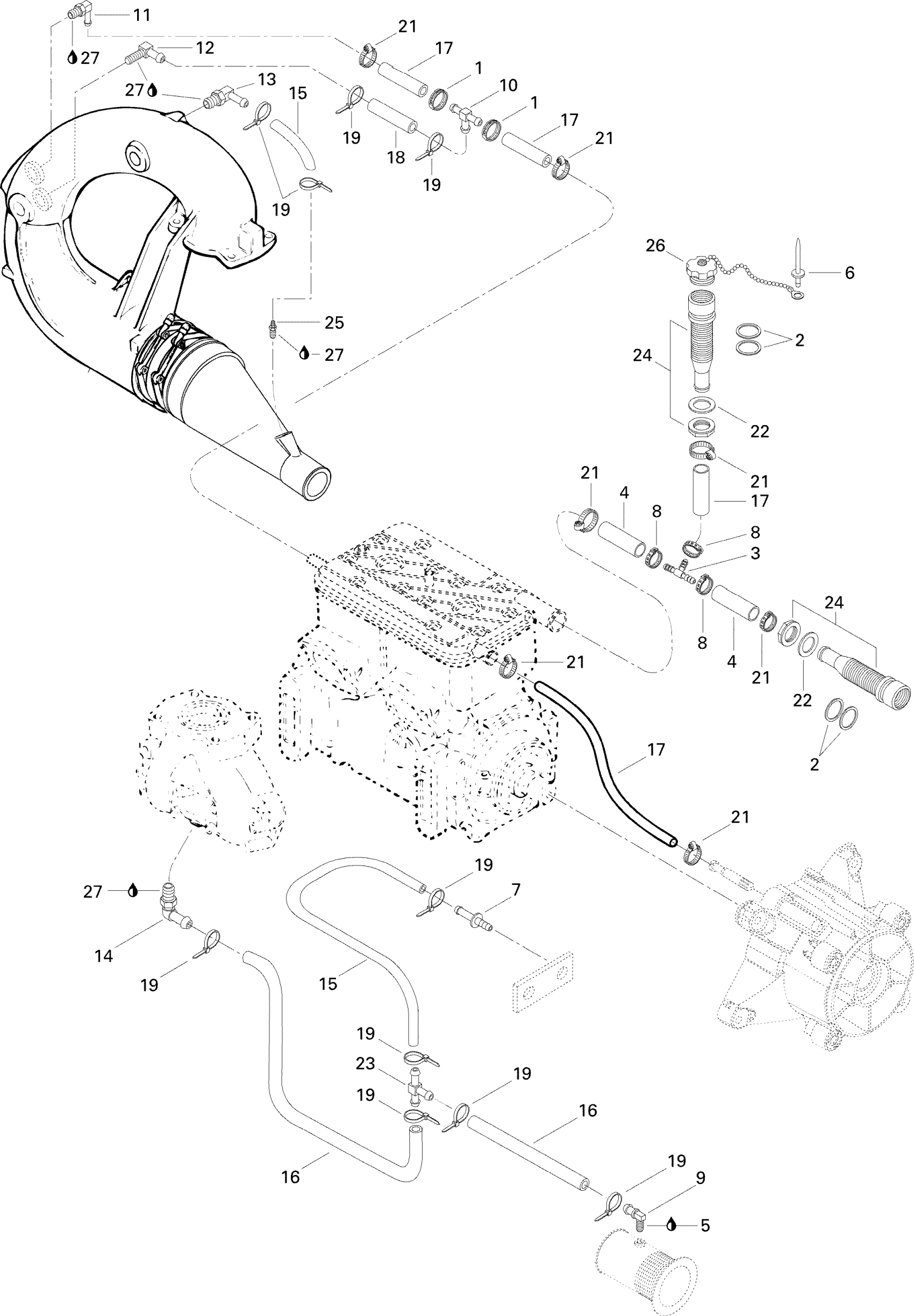

Sea-doo Sportster, 5895, 1996 01- Cooling System SPORSTER Diagram
#
Description
Price
1
Caillau Clic Clamp
293650018
Unavailable
2
GASKET - Call your local BRP dealership
293250028
Unavailable
3
T-FITTING - Call your local BRP dealership
293710053
Unavailable
4
Was 276000001 Hose 12.5 mm
219704394
$51.99
5
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
6
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
7
BLEED FITTING - Call your local BRP dealership
291000306
Unavailable
8
Caillau Clic Clamp
293650018
Unavailable
9
Elbow Fitting
293700016
Unavailable
10
T-FITTING - Call your local BRP dealership
293710052
$12.70
11
Elbow Fitting 90° | Without Catalyst
293700023
$20.99
12
Elbow Fitting 90°
293710048
Unavailable
13
Elbow Fitting 90°
293710018
Unavailable
14
Elbow Fitting
293700016
Unavailable
15
Was 415110000 Polyurethane Hose 5.2 mm
219704414
$121.99
16
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
17
Was 276000001 Hose 12.5 mm
219704394
$51.99
18
Hose 6 Mm 15000Mm Long
219704360
$132.49
19
Tie Wrap 94 mm | 4X4
293750001
$1.03
20
Tie Wrap 142 mm
293750002
$1.25
21
Tridon Gear Clamp
293650172
$3.09
22
WASHER - Call your local BRP dealership
293050003
Unavailable
23
<> FITTING - Call your local BRP dealership
293710042
Unavailable
24
Fitting
293710063
Unavailable
25
Male Connector
293710037
$10.49
26
PLUG - Call your local BRP dealership
293000055
Unavailable
27
Was 293800013 Loctite 56765
219704454
$65.99
