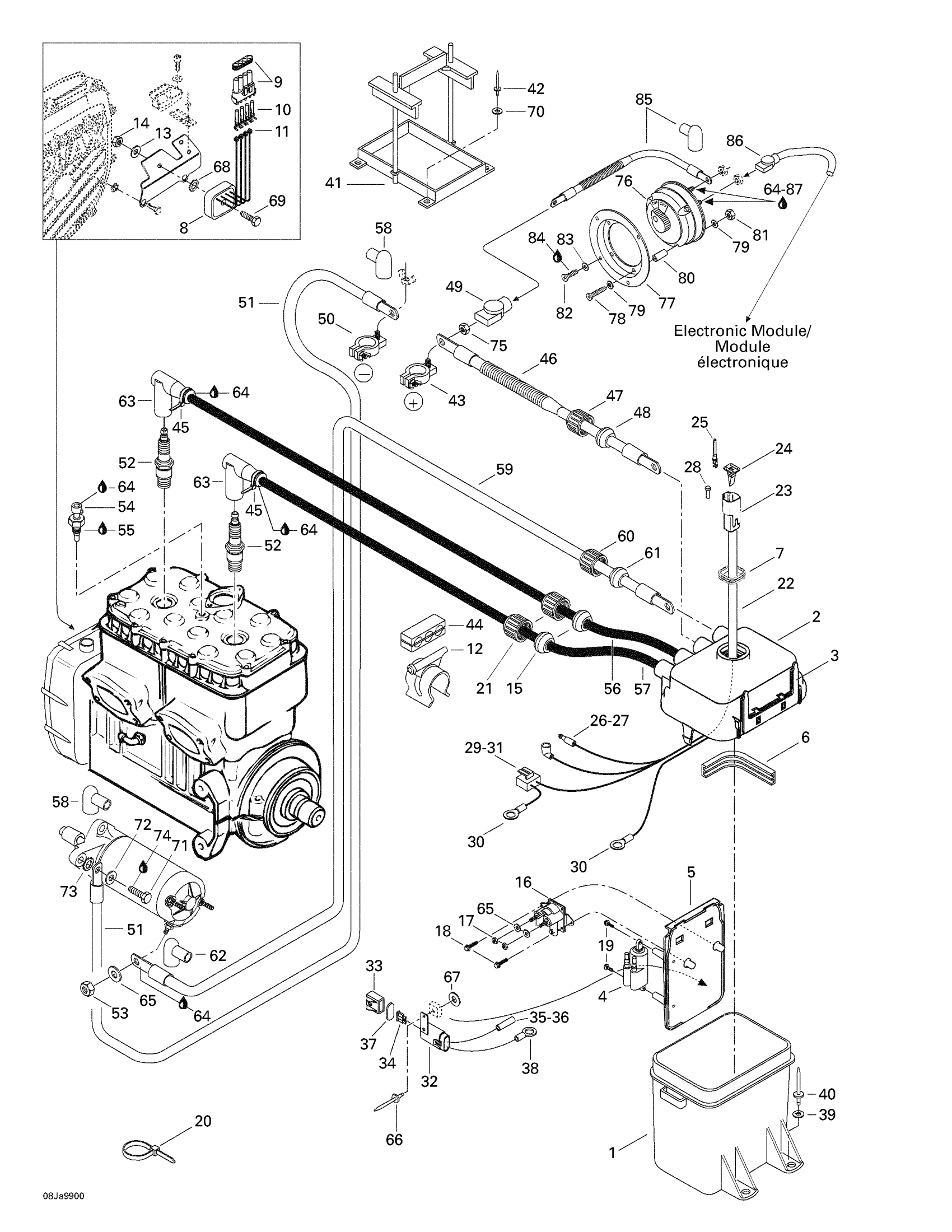

Sea-doo Sportster, 5673, 2000 10- Electrical System Diagram
#
1
High Voltage Box Base
278001089
Unavailable
2
Cover
278001265
Unavailable
3
Ground Plate
278000732
Unavailable
4
IGNITION COIL - Call your local BRP dealership
278000586
Unavailable
5
Mounting Plate
278000826
Unavailable
6
GASKET - Call your local BRP dealership
278000440
Unavailable
7
Gasket
293200030
Unavailable
8
RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.
278001239
Unavailable
9
Male Housing, 4 Circuits
278000395
$15.99
10
Female Terminal
409007300
$0.45
11
Wire Seal
278000218
$4.39
12
COLLAR SUPPORT - Call your local BRP dealership
278000559
Unavailable
13
Stainless Flat Washer M6
234061600
$0.33
14
Hex. Elastic Stop Nut M6
232561600
$1.15
15
Grommet
278000682
Unavailable
16
Starter Relay
278003012
$42.49
17
Hex. Elastic Stop Nut M6
232561600
$1.15
18
Hex. Flange Screw M6 X 10
210261040
$1.48
19
14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.
296000365
Unavailable
20
Tie Wrap 94 mm | 4X4
293750001
$1.03
21
Electric Wire Cap
278000100
Unavailable
22
Electric Box Harness | Includes 22 - 31.
204470160
Unavailable
23
Male Terminal Housing, 6 Circuits
710001539
$19.99
24
Female Lock, 6 Circuits
278000735
$3.19
25
Male Terminal
278000631
$4.39
26
Male Terminal
278000230
$4.39
27
Insulated Sheath
278001008
$3.28
28
Sealing Cap
293000052
$3.19
29
Female Terminal
278001114
$3.19
30
Open Barrel
278000992
$2.21
31
Male Connector, 2 Circuits
278001113
$16.86
32
Harness Fuse 15 Amp | Includes 32 - 38.
204470161
Unavailable
33
Fuse Holder Cap
278001326
$7.69
34
Fuse, 15 Amperes
278000343
$3.28
35
Female Terminal | DS 650 X
278001009
$3.19
36
Insulated Sheath
278001007
$3.58
37
Cushion
278000805
$3.28
38
Ring Terminal
278000300
Unavailable
39
Flat Washer 5 mm, Stainless
234052600
$0.77
40
Pop Rivet 3/16"
293150008
$0.50
41
Battery Support
278000573
Unavailable
42
Pop Rivet 3/16"
293150008
$0.50
43
Battery Pole (Positive)
278000679
Unavailable
44
3 WIRE SUPPORT - Call your local BRP dealership
278000245
Unavailable
45
Tie Wrap 142 mm
293750002
$1.25
46
Battery Cable (Red)(Port side) | Includes 46 - 49.
204470150
Unavailable
47
Electric Wire Cap
278000100
Unavailable
48
GROMMET - Call your local BRP dealership
278000098
Unavailable
49
RED BOOT - Call your local BRP dealership
204470269
Unavailable
50
Battery Pole (Negative)
278000680
Unavailable
51
Battery Ground Cable
278000723
Unavailable
52
NGK Spark Plug BR8ES This part replaces 278000609.
219703119
$4.23
53
Hex. Elastic Stop Nut M6
232561600
$1.15
54
Temperature Sensor
278000965
$73.99
55
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
56
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
57
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
58
PROTECTION CAP - Call your local BRP dealership
278000020
Unavailable
59
Starter Cable (Red) | Includes 59 - 62.
204470149
Unavailable
60
Electric Wire Cap
278000100
Unavailable
61
GROMMET - Call your local BRP dealership
278000098
Unavailable
62
PROTECTION CAP - Call your local BRP dealership
278000020
Unavailable
63
Spark Plug Cap
204470091
Unavailable
64
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
65
Stainless Flat Washer M6
234061600
$0.33
66
Pop Rivet 3/16"
293150005
$0.52
67
Flat Washer, Emhart
213200016
$0.72
68
External Serrated Lock Washer 6 mm
234461608
$1.15
69
Hex. Screw M6 X 35
207163560
$1.49
70
Flat Washer 5 mm, Stainless
234052600
$0.77
71
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
72
Flat Washer M8, Stainless
234080600
$1.48
73
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
74
Loctite 271, 10 ml
293800005
$26.99
75
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
76
Battery Switch
204470329
Unavailable
77
SWITCH SUPPORT - Call your local BRP dealership
204470259
Unavailable
78
Phillips Screw M5 X 25
208652560
$3.39
79
Flat Washer M5, Stainless
234051600
$0.77
80
NYLON SPACER - Call your local BRP dealership
204470330
Unavailable
81
Hex. Elastic Nut M5 | X
232551600
$1.15
82
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
83
Flat Washer 4 mm, Stainless
234041600
$1.15
84
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
85
POSITIVE SWITCH CABLE - Call your local BRP dealership
204470250
Unavailable
86
RED BOOT - Call your local BRP dealership
204470269
Unavailable
87
Loctite 243, 10 ml
293800060
$21.49
