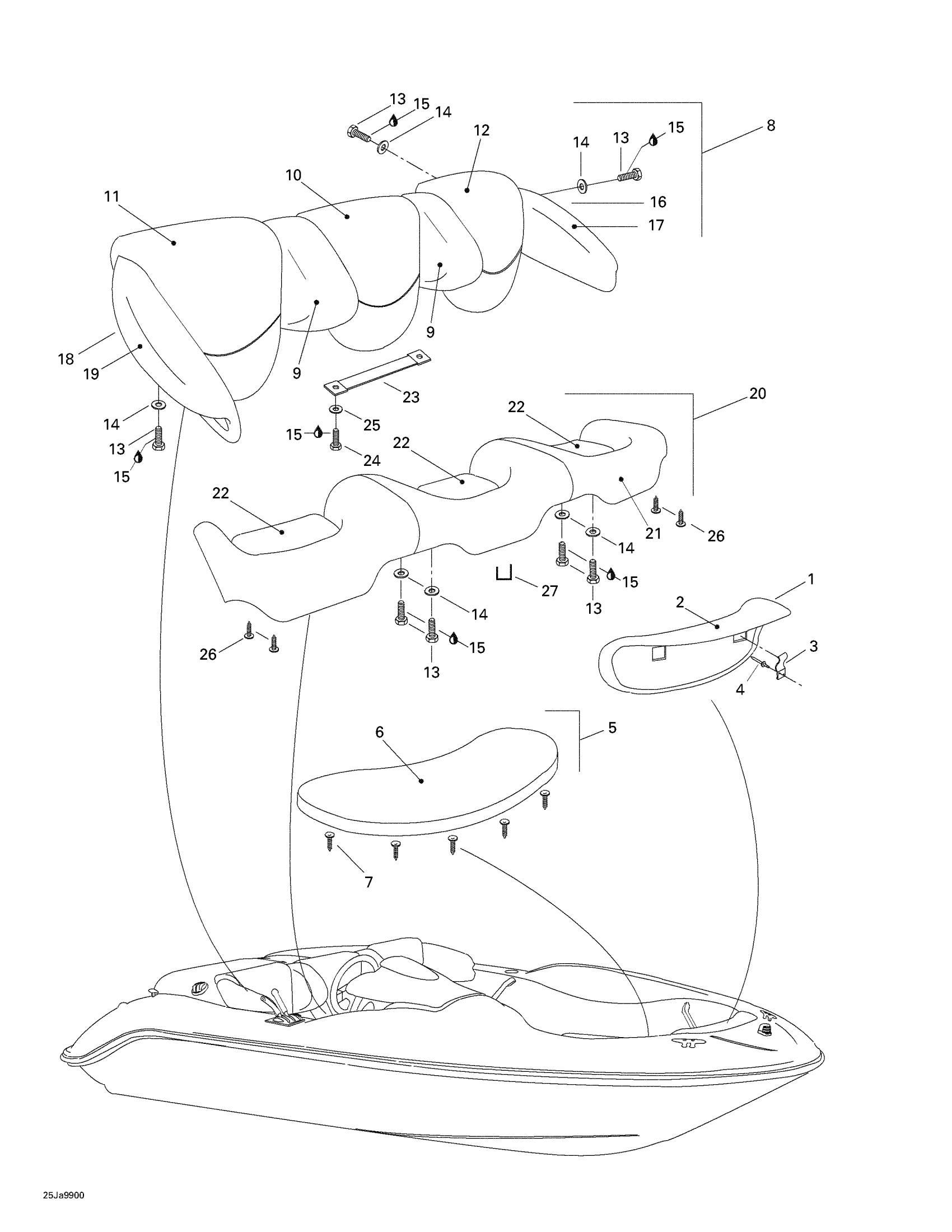

Sea-doo Sportster, 5673, 2000 09- Seats Diagram
#
Description
Price
1
Front Backrest (Ultra-Marine) | Includes 1 - 2.
204610094
Unavailable
2
Front Backrest Cover (Ultra-Marine)
204610096
Unavailable
3
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
4
Pop Rivet 3/16"
293150043
$2.09
5
Front Seat | Includes 5 - 6.
204610296
Unavailable
6
Front Seat Cover
204610301
Unavailable
7
Black, Dart
293730006
$0.99
8
Rear Backrest Ass'y (Ultra-Marine) | Includes 8 - 12.
204610297
Unavailable
9
Backrest Cover
204610091
Unavailable
10
Backrest Cover (Center)
204610309
Unavailable
11
RH Backrest Cover
204610310
Unavailable
12
Backrest Cover (Left)
204610468
Unavailable
13
Hex. Screw M6 X 30
207163060
$1.48
14
Flat Washer M6, Stainless
234062600
$0.77
15
Loctite 243, 10 ml
293800060
$21.49
16
LH Armrest | Includes 16 - 17.
204610299
Unavailable
17
LH Armrest Cover
204610313
Unavailable
18
RH Armrest | Includes 18 - 19.
204610300
Unavailable
19
RH Armrest Cover
204610317
Unavailable
20
Rear Seat Ass'y (Ultra-Marine) | Includes 20 - 25.
204610298
Unavailable
21
Rear Seat Cover
204610093
Unavailable
22
Rear Seat Pillow Cover
204610307
Unavailable
23
Strap
204610286
Unavailable
24
Hex. Screw M6 X 16
207161660
$1.59
25
Flat Washer M6, Stainless
234062600
$0.77
26
Black Dart
293730014
$0.99
27
Staple
293730005
Unavailable
