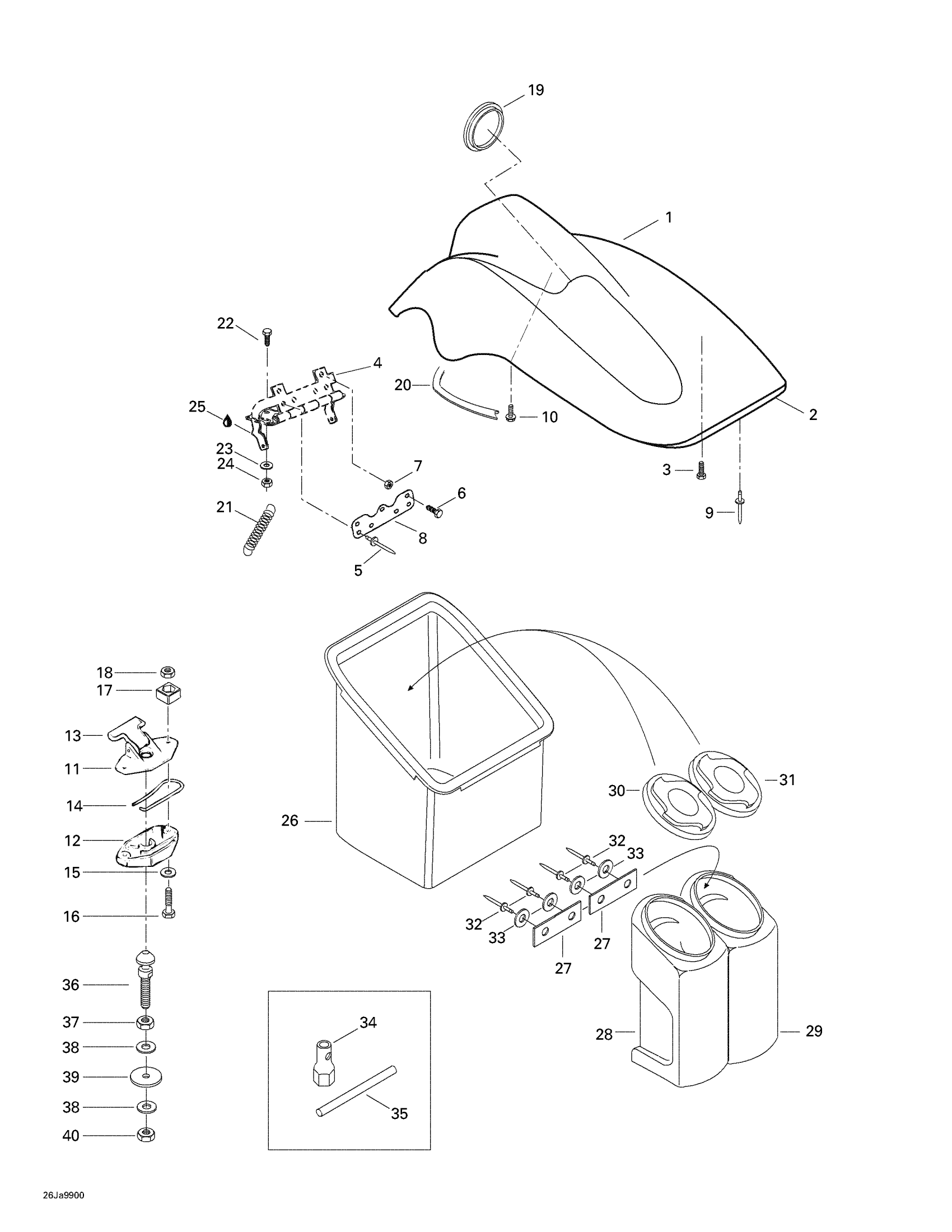

Sea-doo Sportster, 5673, 2000 09- Front Storage Compartment Diagram
#
1
Upper Storage Cover
204620016
Unavailable
2
Lower Storage Cover
204620017
Unavailable
3
Screw K40 X 10
241140060
$1.48
4
HINGE ASS'Y - Call your local BRP dealership
204620281
Unavailable
5
Pop Rivet 3/16"
293150039
$1.49
6
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
7
Hex. Elastic Nut M5 | X
232551600
$1.15
8
Retainer Plate
269500107
Unavailable
9
Pop Rivet 3/16"
293150039
$1.49
10
Hex. Flange Screw K40 X 16
241141660
$1.48
11
Latch Ass'y
269700109
$24.99
12
Latch Ass'y
269700109
$24.99
13
Latch Ass'y
269700109
$24.99
14
Latch Spring
269700017
$9.19
15
Stainless Flat Washer M6
234061600
$0.33
16
Hex. Screw M6 X 35
207163560
$1.49
17
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
18
Hex. Nut M6
232061600
$1.15
19
Cap-Gauge
204620033
Unavailable
20
Seal Tray 1000Mm Long
219704368
$13.99
21
HINGE SPRING - Call your local BRP dealership
204620018
Unavailable
22
Hex. Screw M5 x 16
207151600
Unavailable
23
Flat Washer M5, Stainless
234051600
$0.77
24
Hex. Elastic Nut M5 | X
232551600
$1.15
25
Synthetic Grease, 400 G
293550010
Unavailable
26
STORAGE TRAY - Call your local BRP dealership
269501940
$53.99
27
GASKET - Call your local BRP dealership
293250037
Unavailable
28
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
29
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
30
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
31
Storage Cap
269500604
Unavailable
32
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
33
Flat Washer M3, Stainless
234032600
$0.55
34
Socket Wrench
204630050
Unavailable
35
Steel Bar
204630051
Unavailable
36
LATCH STUD - Call your local BRP dealership
291000691
Unavailable
37
Hex. Jam Nut M10
232100600
$2.22
38
Flat Washer 10 mm, Stainless
234002600
$2.22
39
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
40
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
