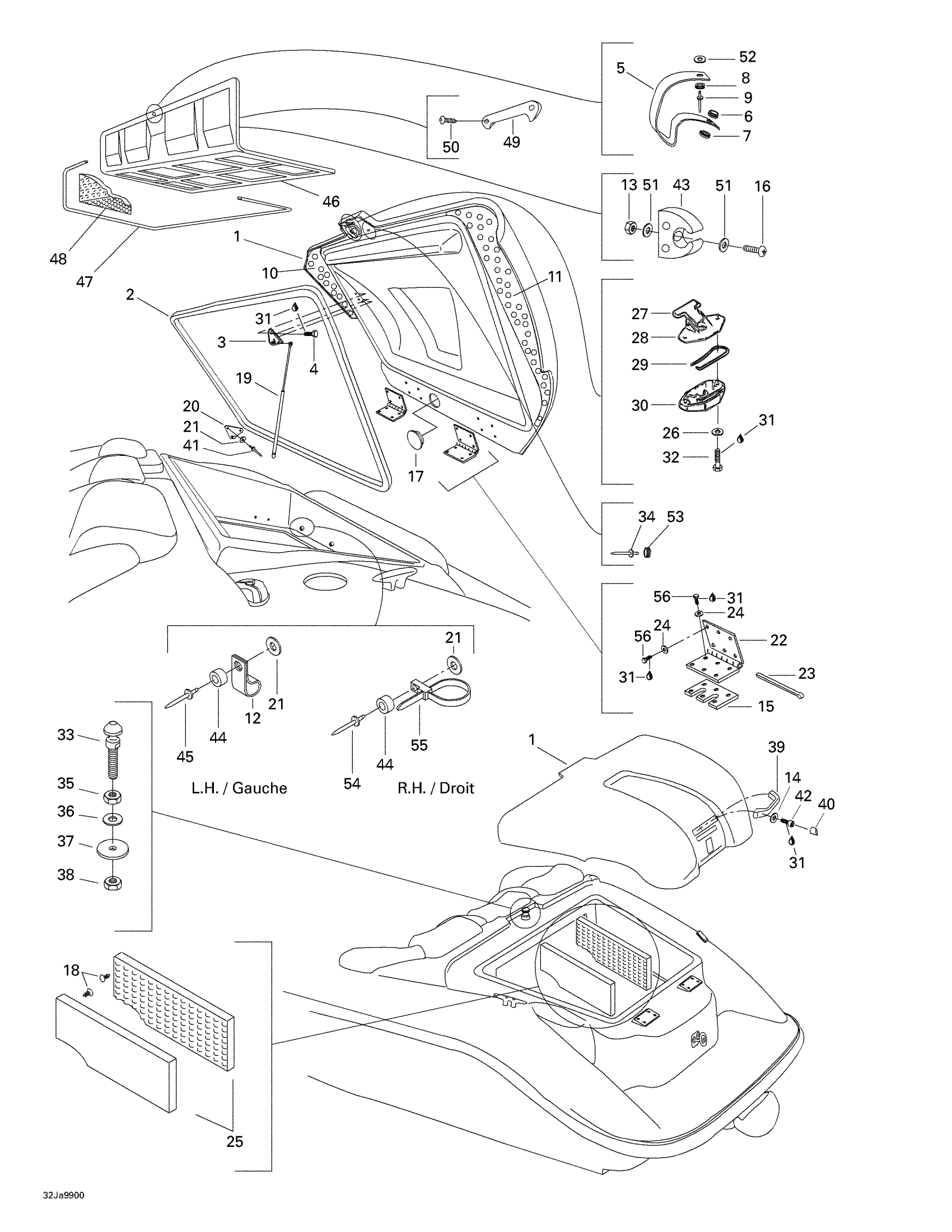

Sea-doo Sportster, 5673, 2000 09- Engine Compartment Diagram
#
1
Engine Cover
295500373
Unavailable
2
Was 293200017 Neoprene Seal
219704365
$149.99
3
CYLINDER SUPPORT - Call your local BRP dealership
291000654
Unavailable
4
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
5
NYLON STRAP - Call your local BRP dealership
204070106
Unavailable
5
Nylon Strap (Black) (Meter)
204000075
Unavailable
6
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
7
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
8
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
9
Pop Rivet 1/8”
293150015
$0.40
10
LH Foam Cover
204320011
Unavailable
11
RH Foam Cover
204320012
Unavailable
12
Clip Cable
414839700
Unavailable
13
Elastic Stop Nut M4
232541600
$1.15
14
Stainless Flat Washer M6
234061600
$0.33
15
SPACER 3.2 MM - Call your local BRP dealership
204070047
Unavailable
16
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
17
GROMMET - Call your local BRP dealership
293720017
Unavailable
18
Black, Dart
293730006
$0.99
19
Cylinder
204070199
Unavailable
20
Shock Support
291000615
Unavailable
21
Flat Washer M5, Stainless
234051600
$0.77
22
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
23
Cotter Pin M2.5 X 12
204070205
Unavailable
24
Stainless Flat Washer M6
234061600
$0.33
25
LH Engine Compartment Foam
237500012
Unavailable
Engine Foam R.H
237500011
Unavailable
26
Stainless Flat Washer M6
234061600
$0.33
27
Latch Ass'y
269700109
$24.99
28
Latch Ass'y
269700109
$24.99
29
Latch Spring
269700017
$9.19
30
Latch Ass'y
269700109
$24.99
31
Loctite 243, 10 ml
293800060
$21.49
32
Hex. Screw M6 X 25
207162560
$1.47
33
Latch Stud
204700001
Unavailable
34
Pop Rivet 1/8”
293150015
$0.40
35
Hex. Jam Nut M10
232100600
$2.22
36
Flat Washer 10 mm, Stainless
234002600
$2.22
37
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
38
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
39
Grip Handle (Marine) | Includes 16 - 17.
204070024
Unavailable
40
Snap Cap (Marine)
204070025
Unavailable
41
Pop Rivet 3/16"
293150043
$2.09
42
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
43
Pole Support
291000642
Unavailable
44
Rubber Stopper
293830043
Unavailable
45
Pop Rivet 3/16"
293150014
$1.09
46
Access Cover
295500299
Unavailable
47
Seal Tray 1000Mm Long
219704368
$13.99
48
Luggage Foam
237500013
Unavailable
49
HANDLE, WHITE - Call your local BRP dealership
291000608
Unavailable
50
Hex. Flange Screw K40 X 16
241141660
$1.48
51
Flat Washer 4 mm
234040600
$0.55
52
Flat Washer M3, Stainless
234032600
$0.55
53
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
54
Pop Rivet 3/16"
293150013
$1.37
55
Tie-Rap
293750017
Unavailable
56
Hex. Screw M6 X 25
207162560
$1.47
