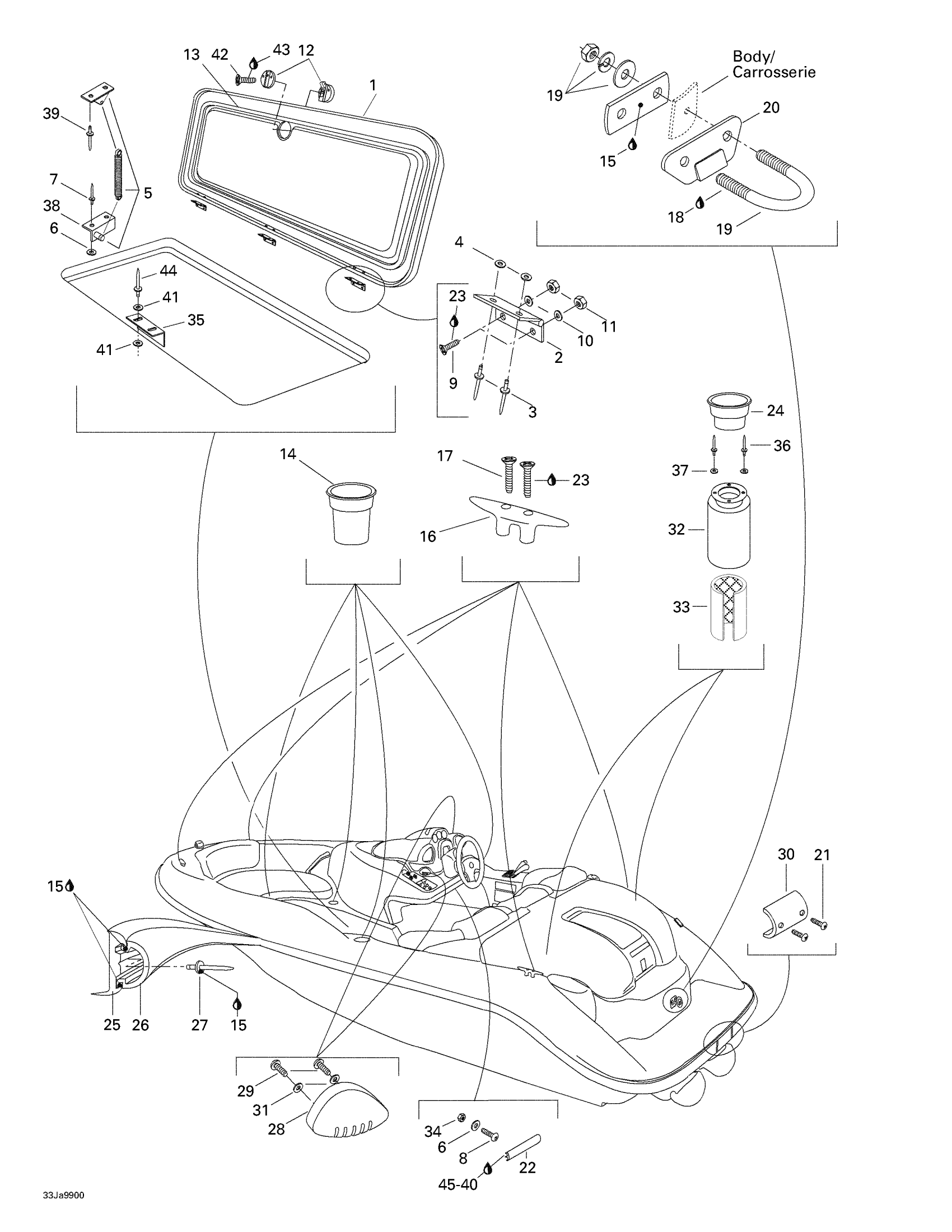

Sea-doo Sportster, 5673, 2000 Central Cover And Accessories Diagram

#

Description
Price

1

Central Cover

291000737

Unavailable

2

HINGE - Call your local BRP dealership

204072601

Unavailable

3

Pop Rivet 3/16"

293150039

$1.49

4

Flat Washer M5, Stainless

234051600

$0.77

5

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

6

Flat Washer 5 mm, Stainless

234052600

$0.77

7

Pop Rivet 3/16"

293150039

$1.49

8

Screw M5 x 25

208452560

Unavailable

9

PHILLIPS SCREW M4 X 20 - Call your local BRP dealership

208442060

Unavailable

10

Flat Washer 4 mm

234040600

$0.55

11

Elastic Stop Nut M4

232541600

$1.15

12

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

13

Seal Tray 1000Mm Long

219704368

$13.99

14

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

15

Silicone Sealant 51388, 300 ml

296000309

$36.99

16

CLEAT - Call your local BRP dealership

204070100

Unavailable

17

Socket Head Screw M6 x 55

205365560

Unavailable

18

Loctite 271, 10 ml

293800005

$26.99

19

U-Bolt

204070418

Unavailable

20

Ski Tow Plate, Black

204070054

Unavailable

21

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

22

TRIM, WHITE - Call your local BRP dealership

204050042

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Cup Holder

291000914

Unavailable

25

Bumper extrusion (U-Marine)

204050006

Unavailable

26

Bumper Moulding (U-Marine)

204050007

Unavailable

27

Pop Rivet 3/16"

293150013

$1.37

28

Ventilation Grille

204070027

Unavailable

29

Flange Screw K40 X 20

241642060

$1.15

30

Bumper Cover

204050008

Unavailable

31

Flat Washer 4 mm, Stainless

234042600

$1.15

32

Rear Hose Vent

204050004

Unavailable

33

Sound Damping

291000400

Unavailable

34

Hex. Elastic Nut M5 | X

232551600

$1.15

35

KEEPER - Call your local BRP dealership

204070060

Unavailable

36

Pop Rivet 3/16"

293150014

$1.09

37

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

38

Spring Bracket

291000719

Unavailable

39

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Flat Washer M5, Stainless

234051600

$0.77

42

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

43

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

44

Pop Rivet 3/16"

293150039

$1.49

45

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99
