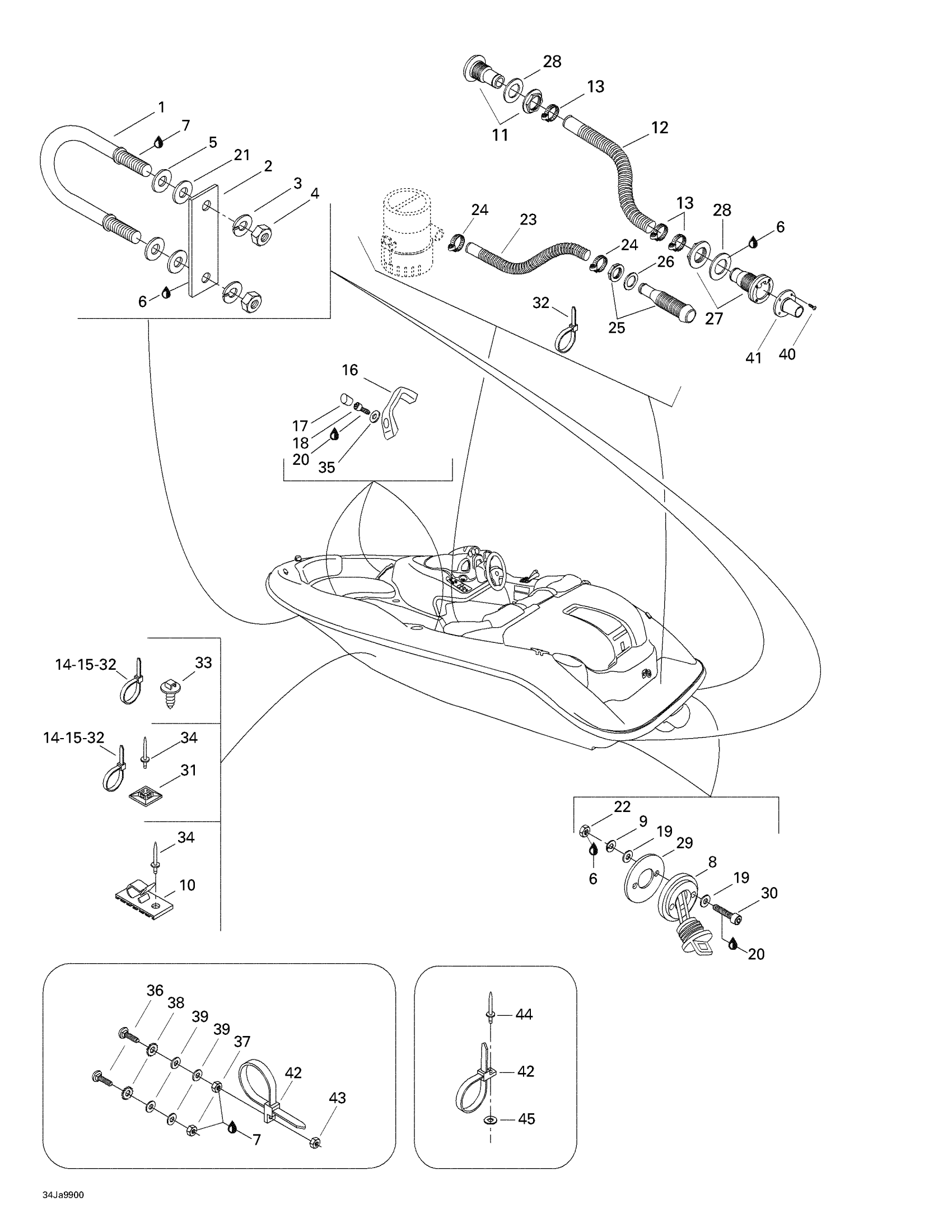

Sea-doo Sportster, 5673, 2000 09- Body And Accessories Diagram
#
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
3
Lock Washer 8 mm, Stainless
234181601
$0.55
4
Hex. Nut M8
232081600
$1.47
5
Flat Washer M8.5 x 18
293050001
$3.07
6
Silicone Sealant 51388, 300 ml
296000309
$36.99
7
Loctite 271, 10 ml
293800005
$26.99
8
Drain Plug
292000187
$14.49
9
Lock Washer 4 mm
234141601
$1.15
10
TIE CLAMP - Call your local BRP dealership
293750005
Unavailable
11
FITTING - Call your local BRP dealership
293710060
Unavailable
12
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
13
Norma Clamp
293650074
$17.05
14
Tie Wrap 142 mm
293750002
$1.25
15
Tie Wrap 368 mm
293750008
$1.04
16
Grip Handle (Marine) | Includes 16 - 17.
204070024
Unavailable
17
Snap Cap (Marine)
204070025
Unavailable
18
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
19
Flat Washer 4 mm
234040600
$0.55
20
Loctite 243, 10 ml
293800060
$21.49
21
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
22
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership
232041600
Unavailable
23
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
24
Norma Clamp
293650080
Unavailable
25
Fitting
293710162
$13.49
26
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
27
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
28
GASKET - Call your local BRP dealership
292800106
Unavailable
29
GASKET - Call your local BRP dealership
293250030
Unavailable
30
Socket Head Screw M4 X 25
205042560
$2.22
31
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
32
Tie-Rap 180 mm
414115200
$0.11
33
Mount Dart
293730040
$1.04
34
Pop Rivet 3/16"
293150008
$0.50
35
Stainless Flat Washer M6
234061600
$0.33
36
Elevator Bolt
204000130
Unavailable
37
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
38
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
39
Stainless, Flat Washer 8 mm
234081600
$0.55
40
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
41
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
42
Tie-Rap
293750017
Unavailable
43
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
44
Pop Rivet 3/16"
293150013
$1.37
45
Flat Washer M5, Stainless
234051600
$0.77
