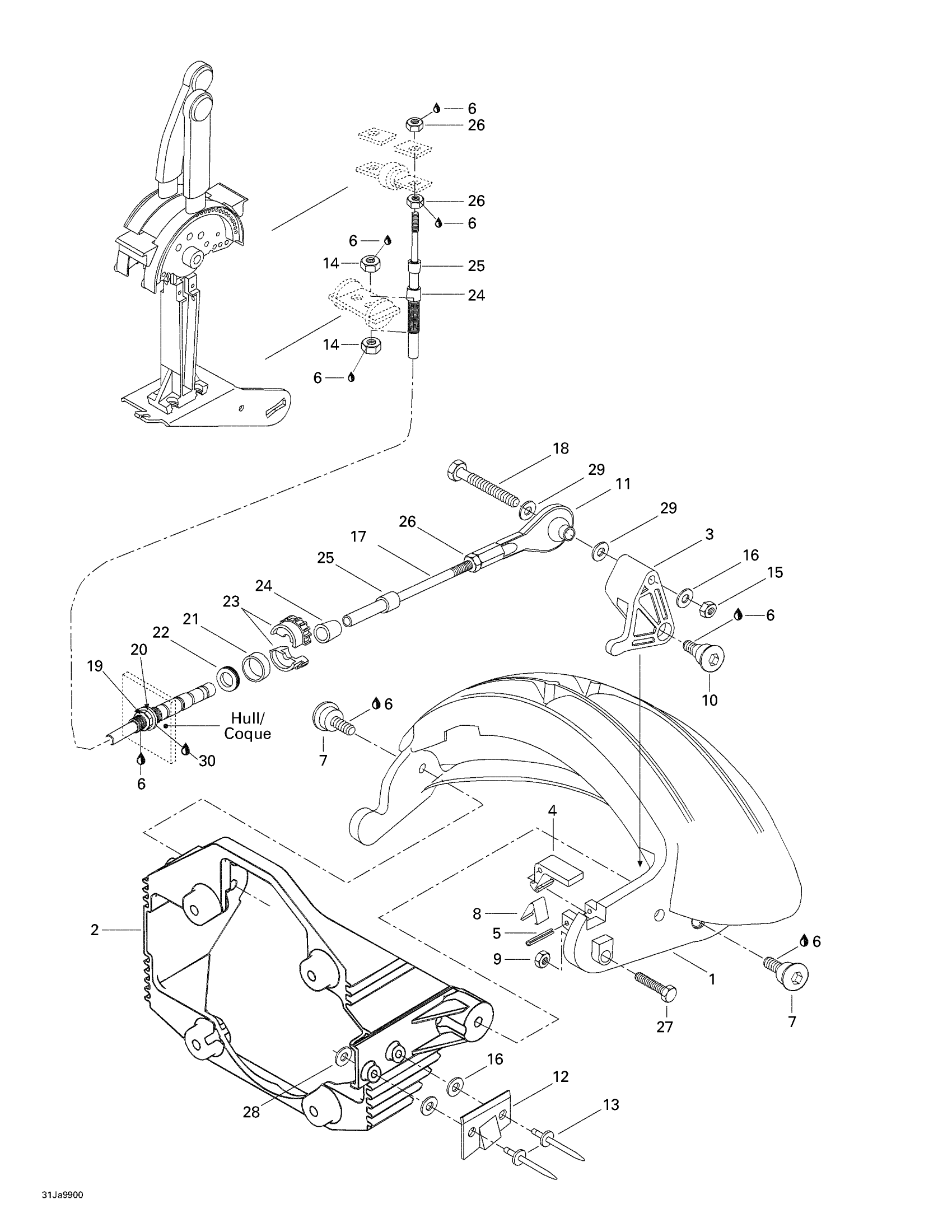

Sea-doo Sportster, 5673, 2000 05- Reverse Diagram
#
Description
Price
1
Gate - Reverse
271000849
Unavailable
2
Reverse Gate Support
204170051
Unavailable
3
CABLE LEVER - Call your local BRP dealership
271000583
Unavailable
4
HOOK LEVER - Call your local BRP dealership
271000430
Unavailable
5
Pin
211400009
$1.68
6
Loctite 243, 10 ml
293800060
$21.49
7
Screw
211000007
Unavailable
8
Spring
271000431
$15.49
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
SCREW-SHOULDER M8 - Call your local BRP dealership
211000077
Unavailable
11
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
12
PAWL STOP - Call your local BRP dealership
204170031
Unavailable
13
Pop Rivet 3/16"
293150005
$0.52
14
Hex. Jam Nut
212100006
Unavailable
15
Hex. Elastic Stop Nut M6
232561600
$1.15
16
Stainless Flat Washer M6
234061600
$0.33
17
RH REVERSE CABLE - Call your local BRP dealership
204170044
Unavailable
18
HEX. SCREW M6 X 60 - Call your local BRP dealership
207066060
Unavailable
19
Hex. Jam Nut 1/2-20
211100011
Unavailable
20
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
21
Retaining Ring
211100010
Unavailable
22
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
23
Half-Ring
277000168
Unavailable
24
Boot, Large
277000473
Unavailable
25
Boot, Small
277000466
Unavailable
26
Hex. Nut
212100005
$1.35
27
Hex. Forming Screw M6 X 20
207162060
$1.29
28
Flat Washer | XT
211200035
$0.55
29
Flat Washer M6, Stainless
234062600
$0.77
30
Silicone Sealant 51388, 300 ml
296000309
$36.99
