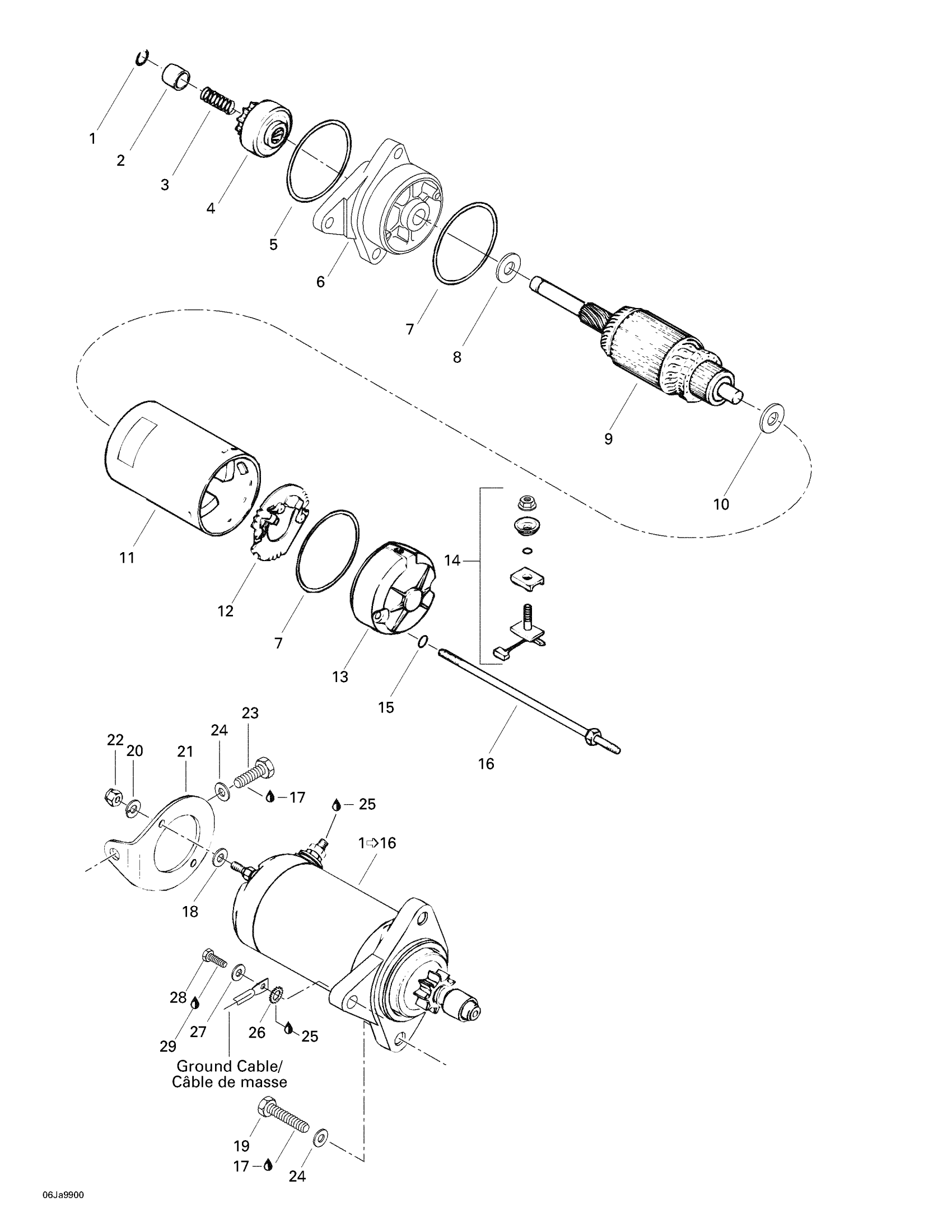

Sea-doo Sportster, 5673, 2000 04- Starter Diagram
#
Description
Price
1
Starter Ass'y, Black | Includes 1 - 16. This part replaces 278001300.
278001935
$234.49
1
SNAP RING - Call your local BRP dealership
410207700
Unavailable
2
Stopper Bushing
278000254
Unavailable
3
SPRING - Call your local BRP dealership
278000168
Unavailable
4
Starter Clutch Ass'y
295500089
Unavailable
5
O-RING - Call your local BRP dealership
278000694
Unavailable
6
Housing Ass'y
278000697
Unavailable
7
O-Ring
278000695
$14.24
8
Flat Washer
278000054
Unavailable
9
Armature
278000699
Unavailable
10
THRUST WASHER - Call your local BRP dealership
278000056
Unavailable
11
Yoke Ass'y
278000057
Unavailable
12
Brush Holder
278001296
$40.99
13
Commutator End Frame
278000251
Unavailable
14
Brush Starter Kit
278001297
$19.49
15
O-RING - Call your local BRP dealership
278000060
Unavailable
16
RETAINER STUD - Call your local BRP dealership
278000170
Unavailable
17
Loctite 243, 10 ml
293800060
$21.49
18
Flat Washer M5, Stainless
234051600
$0.77
19
Hex. Screw M8 X 30
207183060
$1.58
20
Helical Lock Washer M5
234151601
$1.15
21
Starter Support
270000080
Unavailable
22
Hex. Nut M5
232051600
$1.15
23
Hex. Screw M8 X 16
207181660
Unavailable
24
Stainless, Flat Washer 8 mm
234081600
$0.55
25
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
26
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
27
Flat Washer M8, Stainless
234080600
$1.48
28
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
29
Loctite 271, 10 ml
293800005
$26.99
