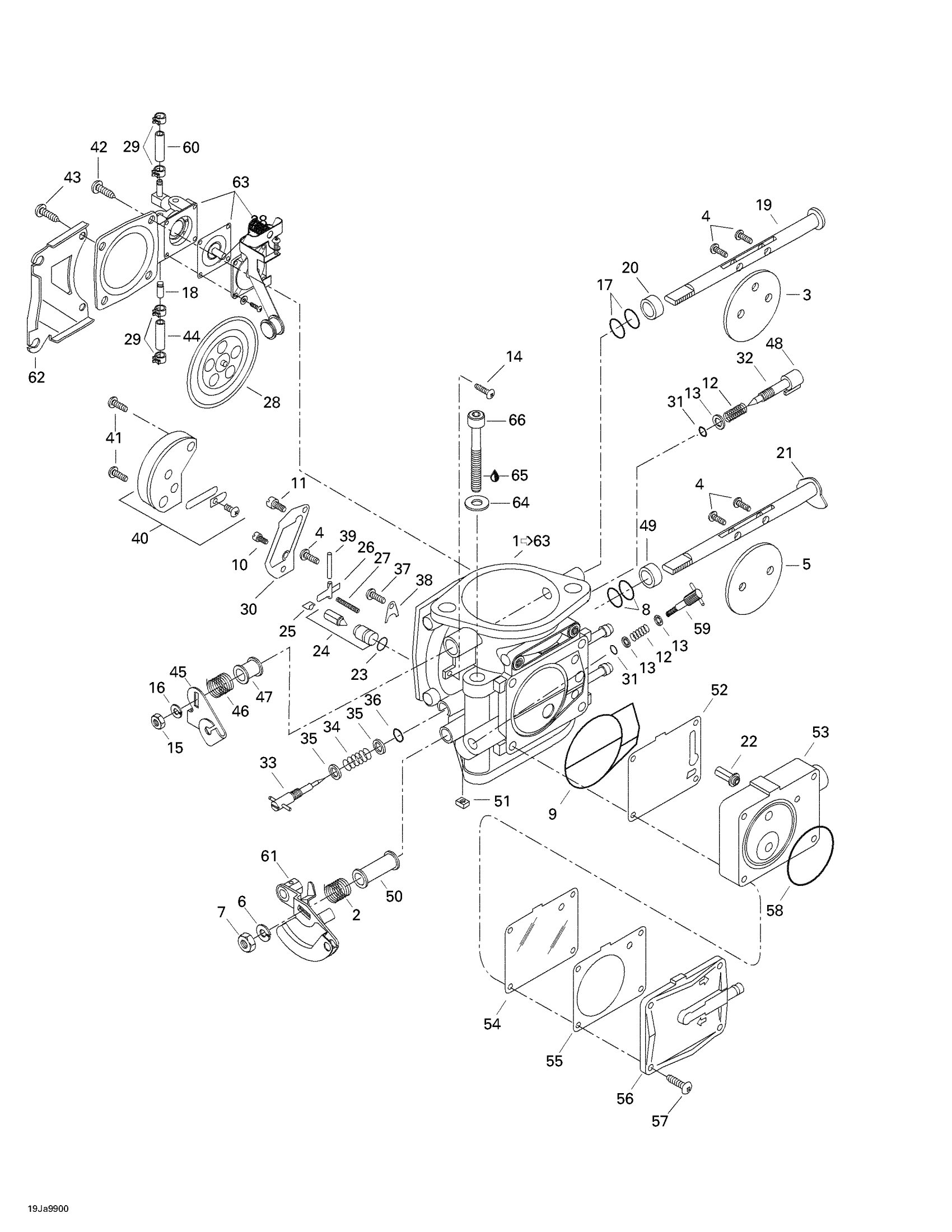

Sea-doo Sportster, 5673, 2000 02- Carburetor Diagram
#
1
Carburetor BN40I-38-52 | Includes 1 - 63.
204250058
Unavailable
2
Spring
270500191
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
SCREW - Call your local BRP dealership
270500156
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
SPRING WASHER - Call your local BRP dealership
270500011
Unavailable
7
Nut
270500376
Unavailable
8
Sealing Ring
270500222
Unavailable
9
O-Ring
270500104
Unavailable
10
Pilot Jet 70
270500430
Unavailable
11
Main Jet 167.5
270500392
Unavailable
12
SPRING - Call your local BRP dealership
270500091
Unavailable
13
Washer
270500136
Unavailable
14
Screw
270500228
Unavailable
15
NUT - Call your local BRP dealership
270500229
Unavailable
16
Spring Washer
270500230
Unavailable
17
SEALING RING - Call your local BRP dealership
270500234
Unavailable
18
RECHARGE JET - Call your local BRP dealership
270500348
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
RING - Call your local BRP dealership
270500239
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
FUEL FILTER - Call your local BRP dealership
270500115
Unavailable
23
O-RING - Call your local BRP dealership
270500127
Unavailable
24
Needle Valve 1.5
270500241
$41.49
25
CLIP - Call your local BRP dealership
270500129
Unavailable
26
NEEDLE VALVE LEVER - Call your local BRP dealership
270500128
Unavailable
27
Spring
270500313
Unavailable
28
DIAPHRAGM ASS'Y - Call your local BRP dealership
270500132
Unavailable
29
OETIKER CLAMP - Call your local BRP dealership
293650071
Unavailable
30
GASKET - Call your local BRP dealership
270500131
Unavailable
31
O-RING - Call your local BRP dealership
270500144
Unavailable
32
Adjuster Screw
270500113
Unavailable
33
IDLE ADJUSTING SCREW - Call your local BRP dealership
270500020
Unavailable
34
SPRING - Call your local BRP dealership
270500019
Unavailable
35
Washer
270500018
Unavailable
36
O-RING - Call your local BRP dealership
270500119
Unavailable
37
Screw And Spring Washer
270500155
Unavailable
38
PLATE - Call your local BRP dealership
270500125
Unavailable
39
Pin
270500038
Unavailable
40
VALVE ASS'Y - Call your local BRP dealership
270500124
Unavailable
41
SCREW - Call your local BRP dealership
270500123
Unavailable
42
Screw
270500322
Unavailable
43
SCREW - Call your local BRP dealership
270500238
Unavailable
44
Hose 90 mm
270500308
Unavailable
45
Choke Lever
270500316
Unavailable
46
SPRING - Call your local BRP dealership
270500248
Unavailable
47
Ring
270500110
Unavailable
48
Cap
270500154
Unavailable
49
RING - Call your local BRP dealership
270500309
Unavailable
50
RING - Call your local BRP dealership
270500192
Unavailable
51
Nut
270500249
Unavailable
52
GASKET - Call your local BRP dealership
270500103
Unavailable
53
Body Pump Ass'y
270500105
Unavailable
54
DIAPHRAGM - Call your local BRP dealership
270500106
Unavailable
55
Gasket
270500146
Unavailable
56
PUMP COVER - Call your local BRP dealership
270500108
Unavailable
57
SCREW - Call your local BRP dealership
270500143
Unavailable
58
O-RING - Call your local BRP dealership
270500102
Unavailable
59
Adjuster Screw
270500288
Unavailable
60
Hose
270500342
Unavailable
61
Throttle Lever Ass'y
270500317
Unavailable
62
Support
270500315
Unavailable
63
Diaphragm Cover
270500424
Unavailable
64
Stainless, Flat Washer 8 mm
234081600
$0.55
65
Synthetic Grease, 400 G
293550010
Unavailable
66
Socket Head Screw M8 x 75 (Scotch Grip)
205587560
Unavailable
