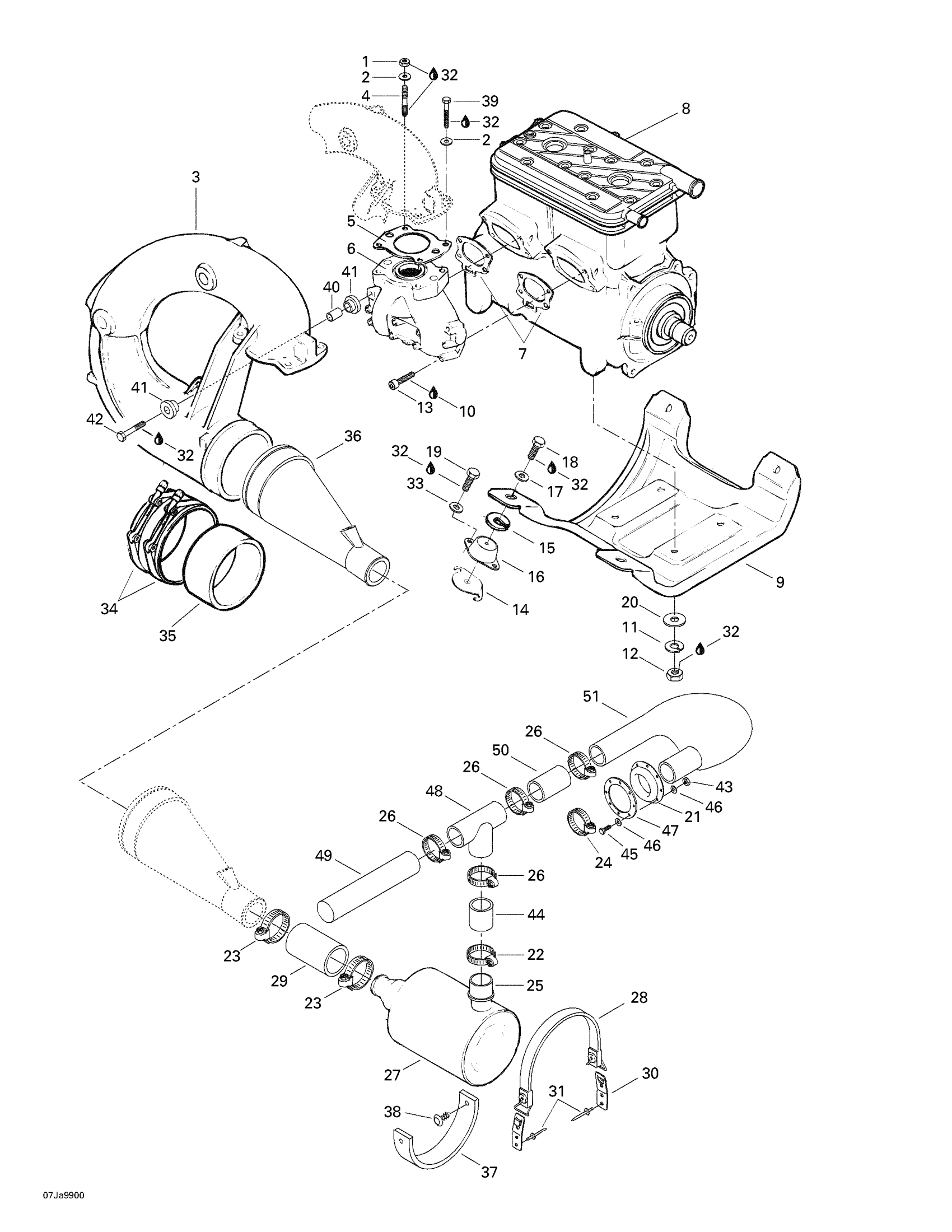

Sea-doo Sportster, 5673, 2000 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Tuned Pipe Ass'y

274000487

Unavailable

4

Stud M8 x 26

420941014

$14.22

5

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

6

Exhaust Manifold (Silver)

290979142

Unavailable

7

Gasket This part replaces 290850638.

420850638

$12.17

8

Rotax Engine 717 (Silver)

270000440

Unavailable

9

Engine Support

204250074

Unavailable

10

Dow Corning 111, 150 g

413707000

$59.99

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

13

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

14

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

Shim 3.3 mm

270000143

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

Gasket

293250096

Unavailable

22

Norma Clamp

293650079

$11.60

23

Norma Clamp

293650077

$7.41

24

NORMA CLAMP - Call your local BRP dealership

293650076

Unavailable

25

Hose Adaptor

274000383

Unavailable

26

Tridon Clamp

293650064

$8.29

27

Muffler

274000491

Unavailable

28

Retainer Strap

293850097

$11.64

29

Exhaust Hose

274000170

Unavailable

30

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

31

Pop Rivet 3/16"

293150008

$0.50

32

Loctite 243, 10 ml

293800060

$21.49

33

Stainless, Flat Washer 8 mm

234081600

$0.55

34

NORMA CLAMP - Call your local BRP dealership

293650068

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Cone Ass’Y

274000488

Unavailable

37

Rubber Pad

293830055

Unavailable

38

Black, Dart

293730006

$0.99

39

Hex. Screw M8 X 30

207183060

$1.58

40

Bushing

274000114

$8.85

41

Rubber Bushing

293830031

Unavailable

42

Hex. Screw M8 X 40

207084060

$2.22

43

Hex. Elastic Stop Nut M6

232561600

$1.15

44

Exhaust Hose

204340074

Unavailable

45

Hex. Screw M6 X 25

207162560

$1.47

46

Stainless Flat Washer M6

234061600

$0.33

47

Ring

274000277

Unavailable

48

T Fitting

204340064

Unavailable

49

Resonateur

204340065

Unavailable

50

Exhaust Hose

204340075

Unavailable

51

LH Expansion Chamber

204340060

Unavailable

52

Engine Gasket Set (Not Shown)

290886317

Unavailable

53

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886316

Unavailable
