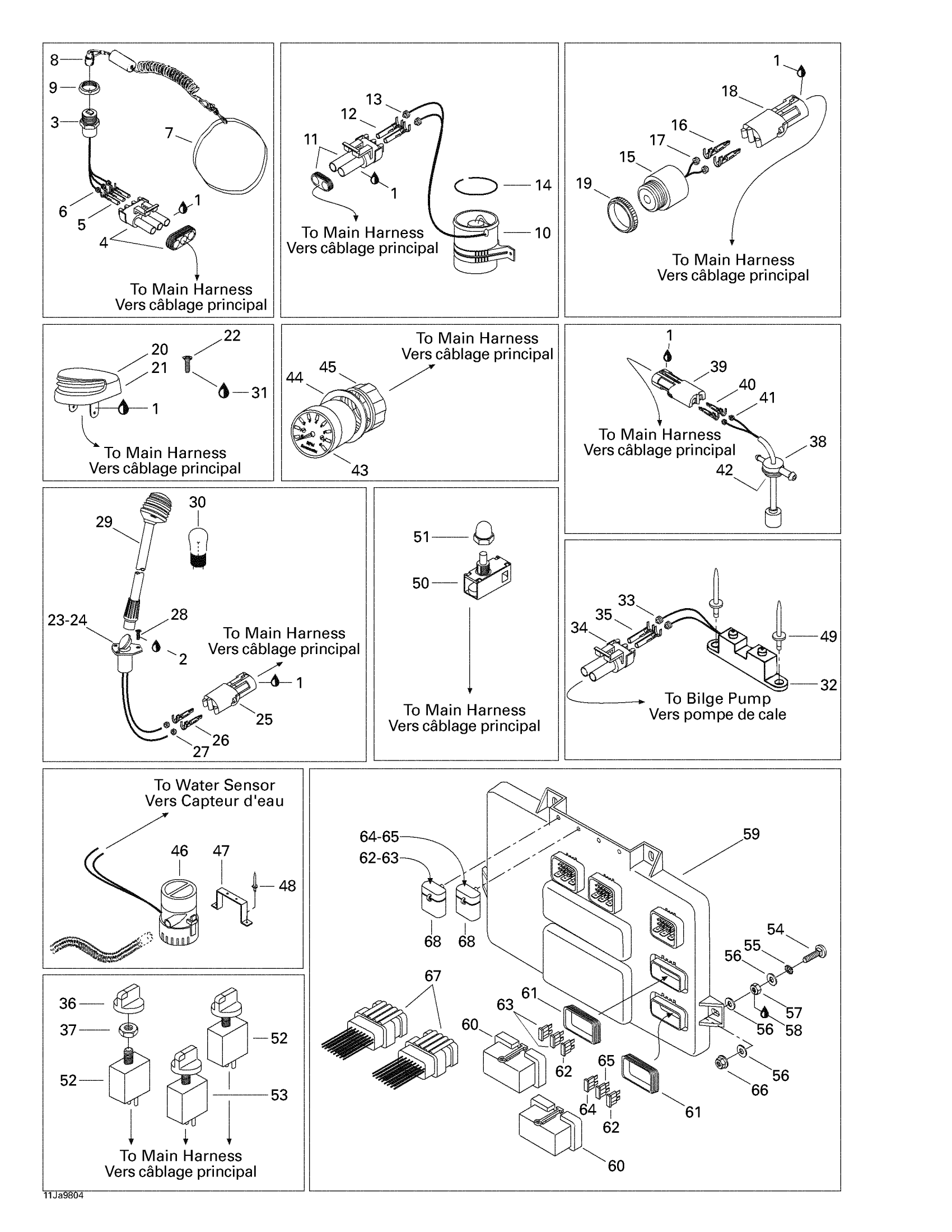

Sea-doo Sportster, 5614, 1998 10- Electrical Accessories Diagram
#
1
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
2
Loctite 243, 10 ml
293800060
$21.49
3
Safety Switch This part replaces 278002325.
278002773
$114.99
4
Male Housing, 3 Circuits
278000273
$9.59
5
Female Terminal
278000223
$3.19
6
Wire Seal
278000218
$4.39
7
Safety Strap
204470025
Unavailable
8
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
9
Safety Nut (DESS Switch)
278002963
$3.28
10
Fan Ass'y | Includes 44 to 47
204470108
$144.99
11
Male Connector, 2 Circuits
278000220
$15.49
12
Female Terminal
278000223
$3.19
13
Wire Seal
278000218
$4.39
14
BROACH - Call your local BRP dealership
204000133
Unavailable
15
BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.
278000887
Unavailable
16
Male Terminal | XT Models
278000222
$3.19
17
Wire Seal
278000218
$4.39
18
Female Housing, 2 Circuits
278000217
$9.59
19
Buzzer Nut
278000707
Unavailable
20
Front Lamp
204470071
Unavailable
21
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
22
Phillips Screw M4 X 16
208641660
$0.90
23
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
24
Rear Lamp Base Ass'y | Includes 12 to 16
204471177
Unavailable
25
Female Housing, 2 Circuits
278000217
$9.59
26
Male Terminal | XT Models
278000222
$3.19
27
Wire Seal
278000218
$4.39
28
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership
216142060
Unavailable
29
Rear Lamp Pole | Includes 17 to 19, Models Without Tower
204470022
Unavailable
30
Bulb
204470053
Unavailable
31
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
32
WATER SENSOR - Call your local BRP dealership
204470038
Unavailable
33
Wire Seal
278000218
$4.39
34
Male Connector, 2 Circuits
278000220
$15.49
35
Female Terminal
278000223
$3.19
36
SWITCH CAP - Call your local BRP dealership
278000542
Unavailable
37
Switch Nut
278000647
Unavailable
38
OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.
204470106
Unavailable
39
Female Housing, 2 Circuits
278000217
$9.59
40
Male Terminal | XT Models
278000222
$3.19
41
Wire Seal
278000218
$4.39
42
Grommet
204470104
Unavailable
43
Fuel/Oil Gauge
204470144
Unavailable
44
Gasket
204470145
Unavailable
45
Gauge Nut
204470146
Unavailable
46
Bilge Pump This part replaces 204470220.
278002020
$99.49
47
Bilge Pump Support
292000236
Unavailable
48
Not Available As Spare Part - Friction Washer
Unavailable
49
Pop Rivet 5/32
293150050
Unavailable
50
RH IGNITION SWITCH - Call your local BRP dealership
278000622
Unavailable
51
IGNITION SWITCH CAP, RED - Call your local BRP dealership
278000565
Unavailable
52
Fan Switch
278000540
Unavailable
53
Light Switch
278000541
Unavailable
54
Elevator Bolt
204000130
Unavailable
55
WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership
213400001
Unavailable
56
Flat Washer M6, Stainless
234062600
$0.77
57
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
58
Loctite 271, 10 ml
293800005
$26.99
59
Electronic Module | Includes 59 - 65.
204470179
Unavailable
60
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
61
Cover Seal
278001070
Unavailable
62
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
63
Fuse, 5 Amperes | CE
278000344
$3.28
64
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
65
Fuse, 10 Amperes | North America
278001197
$2.21
66
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
67
Harness Ass'y
204470180
Unavailable
68
Fuse Holder
278000379
Unavailable
