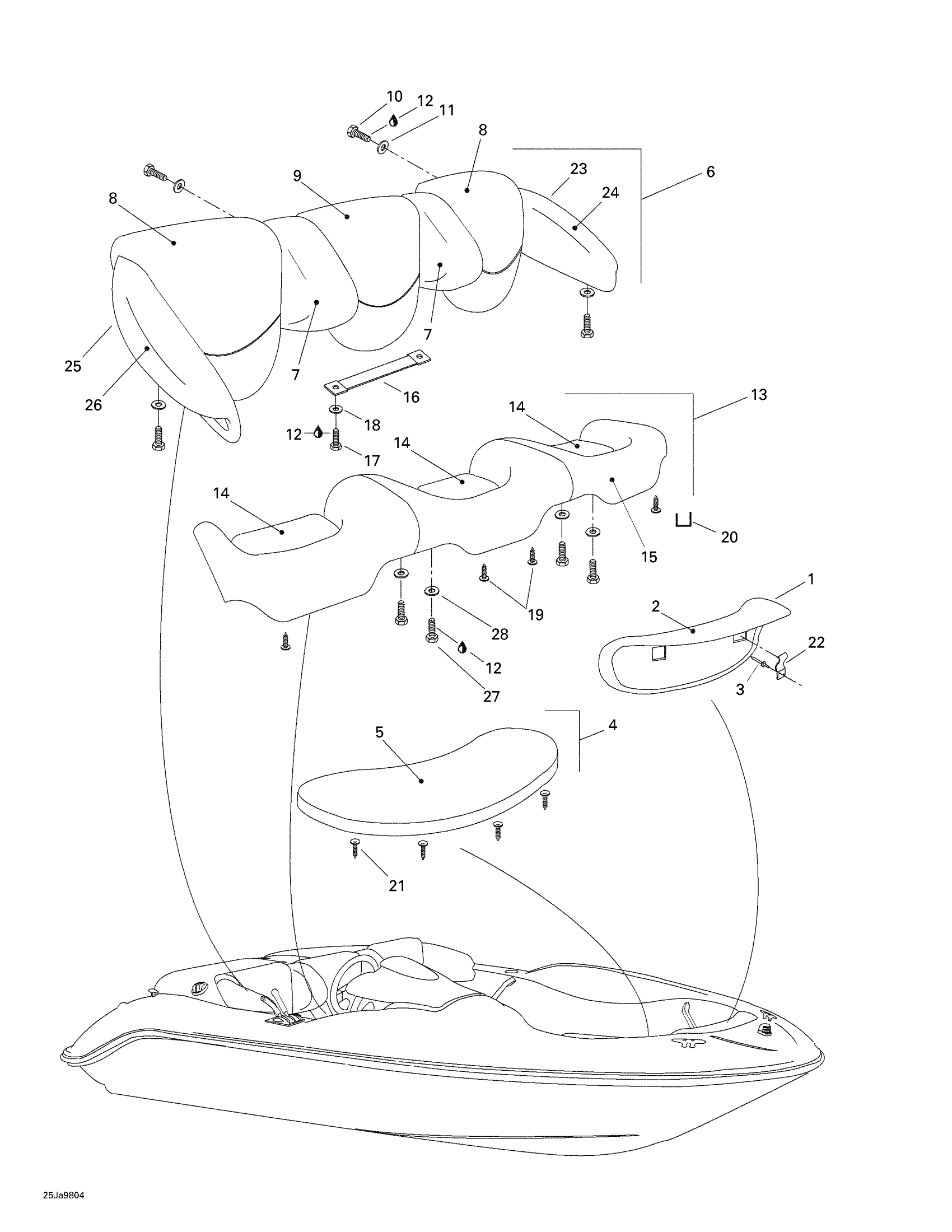

Sea-doo Sportster, 5614, 1998 09- Seats Diagram
#
Description
Price
1
Front Backrest (Ultra-Marine) | Includes 1 - 2.
204610094
Unavailable
2
Front Backrest Cover (Ultra-Marine)
204610096
Unavailable
3
Pop Rivet 3/16"
293150043
$2.09
4
Front Seat | Includes 5 - 6.
204610296
Unavailable
5
Front Seat Cover
204610301
Unavailable
6
Rear Backrest Ass'y (Ultra-Marine) | Includes 8 - 12.
204610297
Unavailable
7
Backrest Cover
204610091
Unavailable
8
RH Backrest Cover
204610310
Unavailable
9
Backrest Cover (Center)
204610309
Unavailable
10
Hex. Screw M6 X 30
207163060
$1.48
11
Flat Washer M6, Stainless
234062600
$0.77
12
Loctite 243, 10 ml
293800060
$21.49
13
Rear Seat Ass'y (Ultra-Marine) | Includes 20 - 25.
204610298
Unavailable
14
Rear Seat Pillow Cover
204610307
Unavailable
15
Rear Seat Cover
204610093
Unavailable
16
Strap
204610286
Unavailable
17
Hex. Screw M6 X 16
207161660
$1.59
18
Flat Washer M6, Stainless
234062600
$0.77
19
Black Dart
293730014
$0.99
20
Staple
293730005
Unavailable
21
Black, Dart
293730006
$0.99
22
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
23
LH Armrest | Includes 16 - 17.
204610299
Unavailable
24
LH Armrest Cover
204610313
Unavailable
25
RH Armrest | Includes 18 - 19.
204610300
Unavailable
26
RH Armrest Cover
204610317
Unavailable
27
Hex. Screw M6 X 30
207163060
$1.48
28
Flat Washer M6, Stainless
234062600
$0.77
