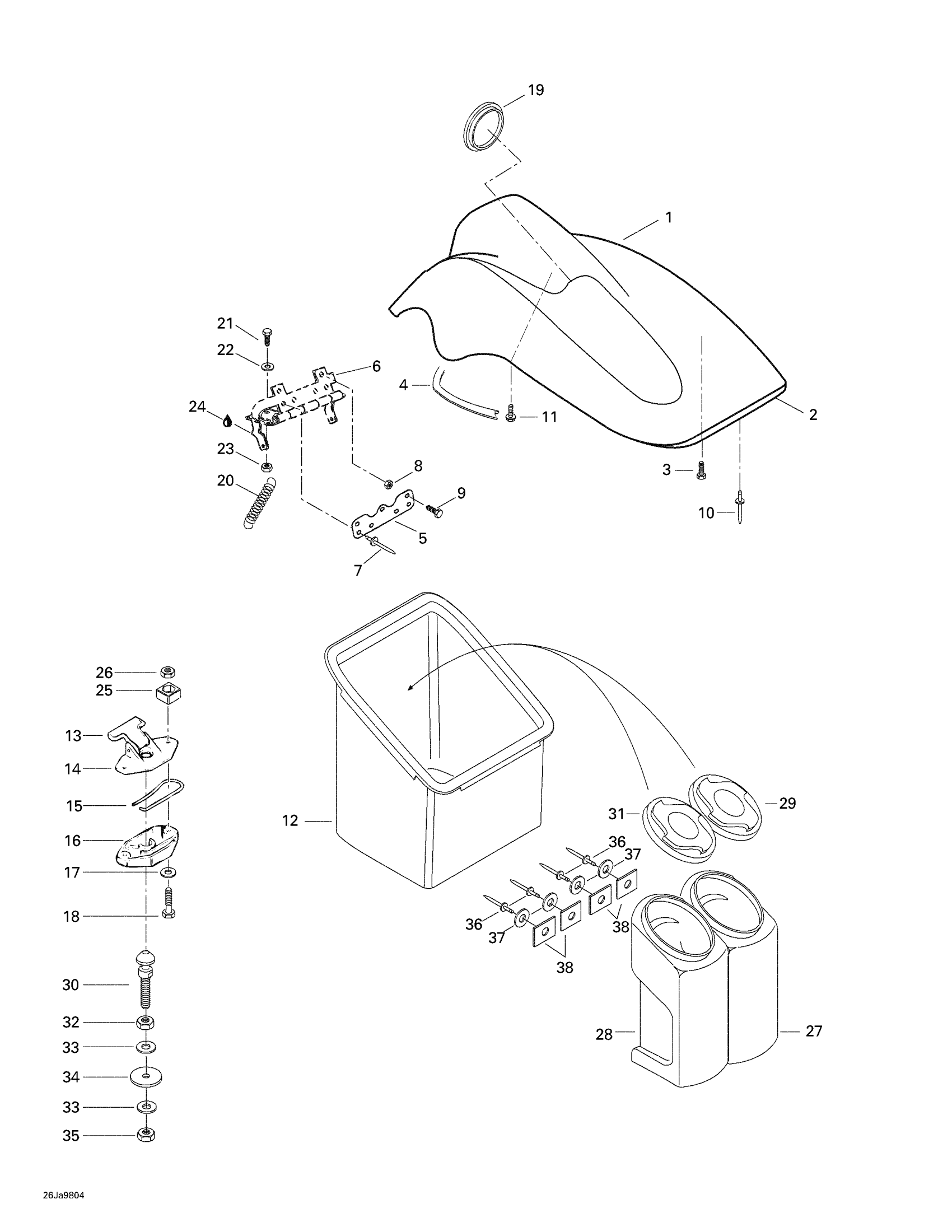

Sea-doo Sportster, 5614, 1998 Front Storage Compartment Diagram

#

Description
Price

1

Upper Storage Cover

204620016

Unavailable

2

Lower Storage Cover

204620017

Unavailable

3

Screw K40 X 10

241140060

$1.25

4

Seal Tray 1000Mm Long

219704368

$12.30

5

Retainer Plate

269500107

Unavailable

6

HINGE ASS'Y - Call your local BRP dealership

204620281

Unavailable

7

Pop Rivet 3/16"

293150039

$1.31

8

Hex. Elastic Nut M5 | X

232551600

$0.91

9

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

10

Pop Rivet 3/16"

293150039

$1.31

11

Hex. Flange Screw K40 X 16

241141660

$1.25

12

STORAGE TRAY - Call your local BRP dealership

269501940

$47.73

13

Latch Ass'y

269700109

$20.12

14

Latch Ass'y

269700109

$20.12

15

Latch Spring

269700017

$7.27

16

Latch Ass'y

269700109

$20.12

17

Stainless Flat Washer M6

234061600

$0.25

18

Hex. Screw M6 X 35

207163560

$1.17

19

Cap-Gauge

204620033

Unavailable

20

HINGE SPRING - Call your local BRP dealership

204620018

Unavailable

21

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

22

Flat Washer M5, Stainless

234051600

$0.64

23

Hex. Elastic Nut M5 | X

232551600

$0.91

24

Synthetic Grease, 400 G

293550010

Unavailable

25

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$5.43

26

Hex. Elastic Stop Nut M6

232561600

$0.92

27

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

28

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

29

Storage Housing Cap

269500237

Unavailable

30

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

31

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

32

Hex. Jam Nut M10

232100600

$1.85

33

Flat Washer 10 mm, Stainless

234002600

$1.85

34

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

35

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

36

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

37

Flat Washer M3, Stainless

234032600

$0.52

38

GASKET - Call your local BRP dealership

293250037

Unavailable
