- Sportster, 5614, 1998
09- Central Cover And Accessories

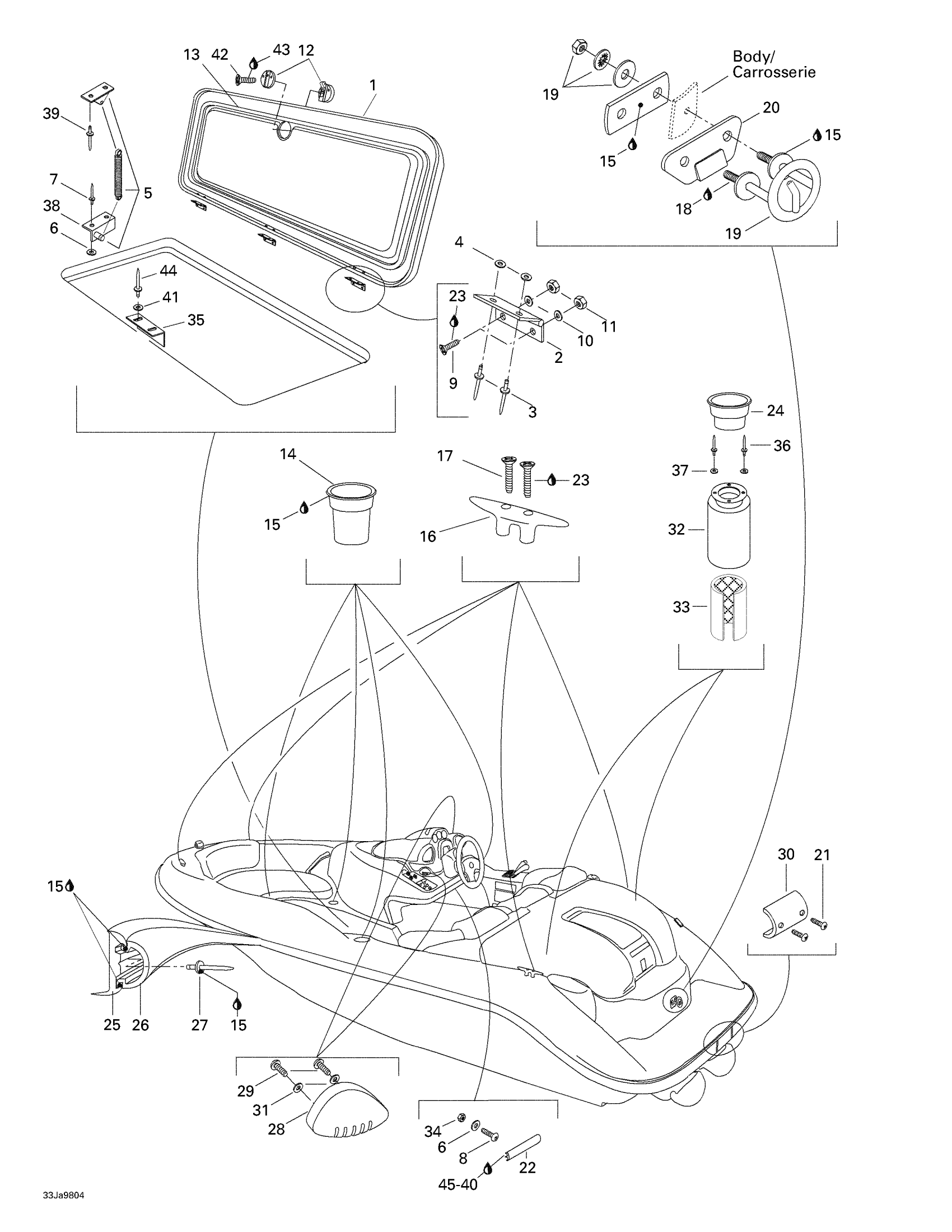

Sea-doo Sportster, 5614, 1998 09- Central Cover And Accessories Diagram
#
1
Central Cover
291000737
Unavailable
2
HINGE - Call your local BRP dealership
204072601
Unavailable
3
Pop Rivet 3/16"
293150039
$1.49
4
Flat Washer M5, Stainless
234051600
$0.77
5
SPRING SEAT - Call your local BRP dealership
204000071
Unavailable
6
Flat Washer 5 mm, Stainless
234052600
$0.77
7
Pop Rivet 3/16"
293150039
$1.49
8
Screw M5 x 25
216152560
Unavailable
9
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership
216142060
Unavailable
10
Flat Washer 4 mm
234040600
$0.55
11
Elastic Stop Nut M4
232541600
$1.15
12
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
13
Seal Tray 1000Mm Long
219704368
$13.99
14
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
15
Silicone Sealant 51388, 300 ml
296000309
$36.99
16
CLEAT - Call your local BRP dealership
204070100
Unavailable
17
Screw M6 x 55
211000135
Unavailable
18
Loctite 271, 10 ml
293800005
$26.99
19
Ski Tow Hook
204070206
Unavailable
20
Ski Tow Plate, Black
204070054
Unavailable
21
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
22
TRIM, WHITE - Call your local BRP dealership
204050042
Unavailable
23
Loctite 243, 10 ml
293800060
$21.49
24
Cup Holder
291000914
Unavailable
25
Bumper extrusion (U-Marine)
204050006
Unavailable
26
Bumper Moulding (U-Marine)
204050007
Unavailable
27
Pop Rivet 3/16"
293150013
$1.37
28
Ventilation Grille
204070027
Unavailable
29
Flange Screw K40 X 20
241642060
$1.15
30
Bumper Cover
204050008
Unavailable
31
Flat Washer 4 mm, Stainless
234042600
$1.15
32
Rear Hose Vent
204050004
Unavailable
33
Sound Damping
291000400
Unavailable
34
Hex. Elastic Nut M5 | X
232551600
$1.15
35
KEEPER - Call your local BRP dealership
204070060
Unavailable
36
Pop Rivet 3/16"
293150014
$1.09
37
FLAT WASHER 3/16? - Call your local BRP dealership
211200039
Unavailable
38
Spring Bracket
291000719
Unavailable
39
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
40
Not Available As Spare Part - Friction Washer
Unavailable
41
Flat Washer M5, Stainless
234051600
$0.77
42
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
43
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
44
Pop Rivet 3/16"
293150039
$1.49
45
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
