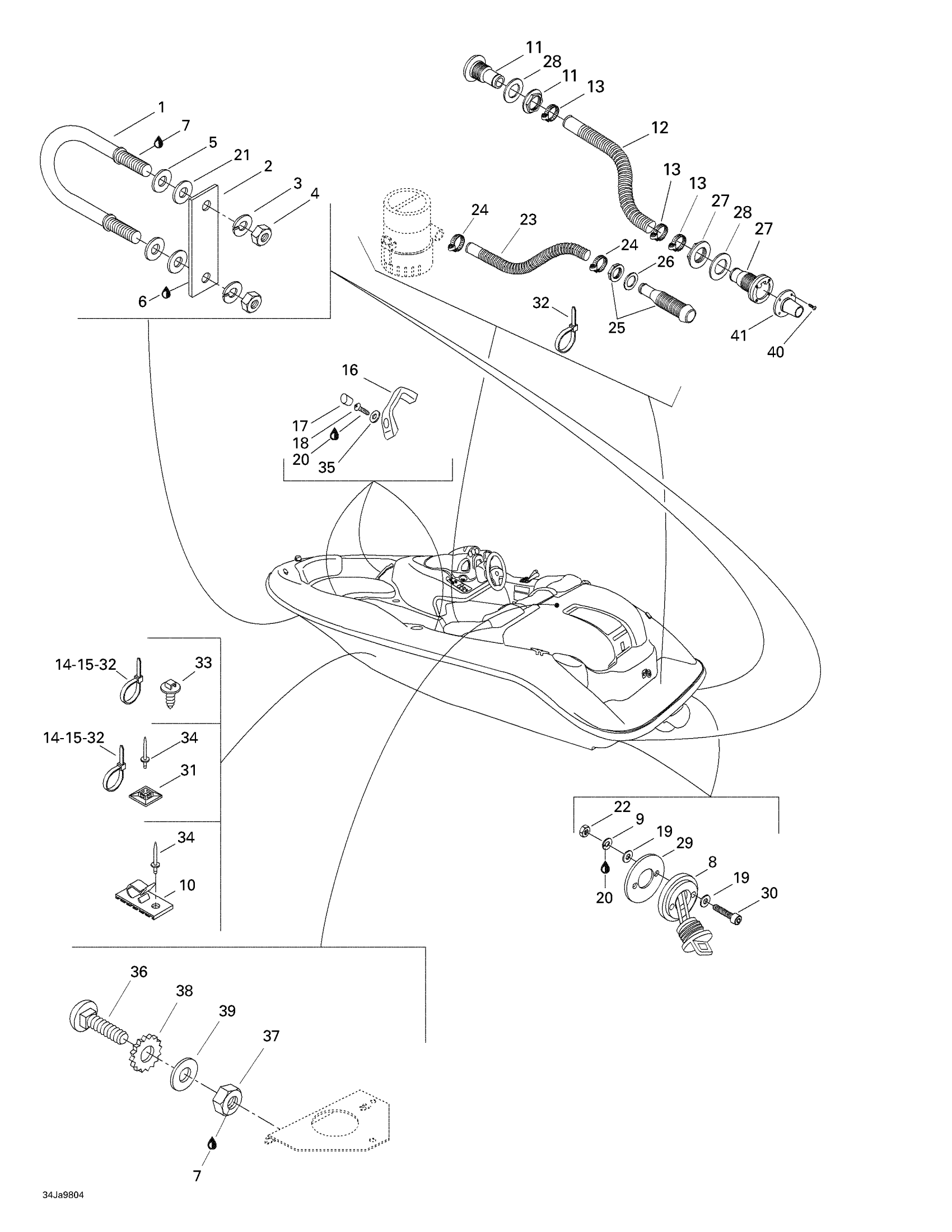

Sea-doo Sportster, 5614, 1998 Body And Accessories Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

3

Lock Washer 8 mm, Stainless

234181601

$0.55

4

Hex. Nut M8

232081600

$1.47

5

Flat Washer M8.5 x 18

293050001

$3.07

6

Silicone Sealant 51388, 300 ml

296000309

$36.99

7

Loctite 271, 10 ml

293800005

$26.99

8

Drain Plug

292000187

$14.49

9

Lock Washer 4 mm

234141601

$1.15

10

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

11

FITTING - Call your local BRP dealership

293710060

Unavailable

12

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

13

Norma Clamp

293650074

$17.05

14

Tie Wrap 142 mm

293750002

$1.25

15

Tie Wrap 368 mm

293750008

$1.04

16

Grip Handle (Marine) | Includes 16 - 17.

204070024

Unavailable

17

Snap Cap (Marine)

204070025

Unavailable

18

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

19

Flat Washer 4 mm

234040600

$0.55

20

Loctite 243, 10 ml

293800060

$21.49

21

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

22

Nut M4

211100025

Unavailable

23

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

24

Norma Clamp

293650080

Unavailable

25

Fitting

293710162

$13.49

26

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

27

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

28

GASKET - Call your local BRP dealership

292800106

Unavailable

29

GASKET - Call your local BRP dealership

293250030

Unavailable

30

Socket Head Screw M4 X 25

205042560

$2.22

31

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

32

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 94 mm | 4X4

293750001

$1.03

33

Mount Dart

293730040

$1.04

34

Pop Rivet 3/16"

293150008

$0.50

35

External Serrated Lock Washer 6 mm

234461608

$1.15

36

Elevator Bolt

204000130

Unavailable

37

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

38

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

39

Stainless, Flat Washer 8 mm

234081600

$0.55

40

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

41

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable
