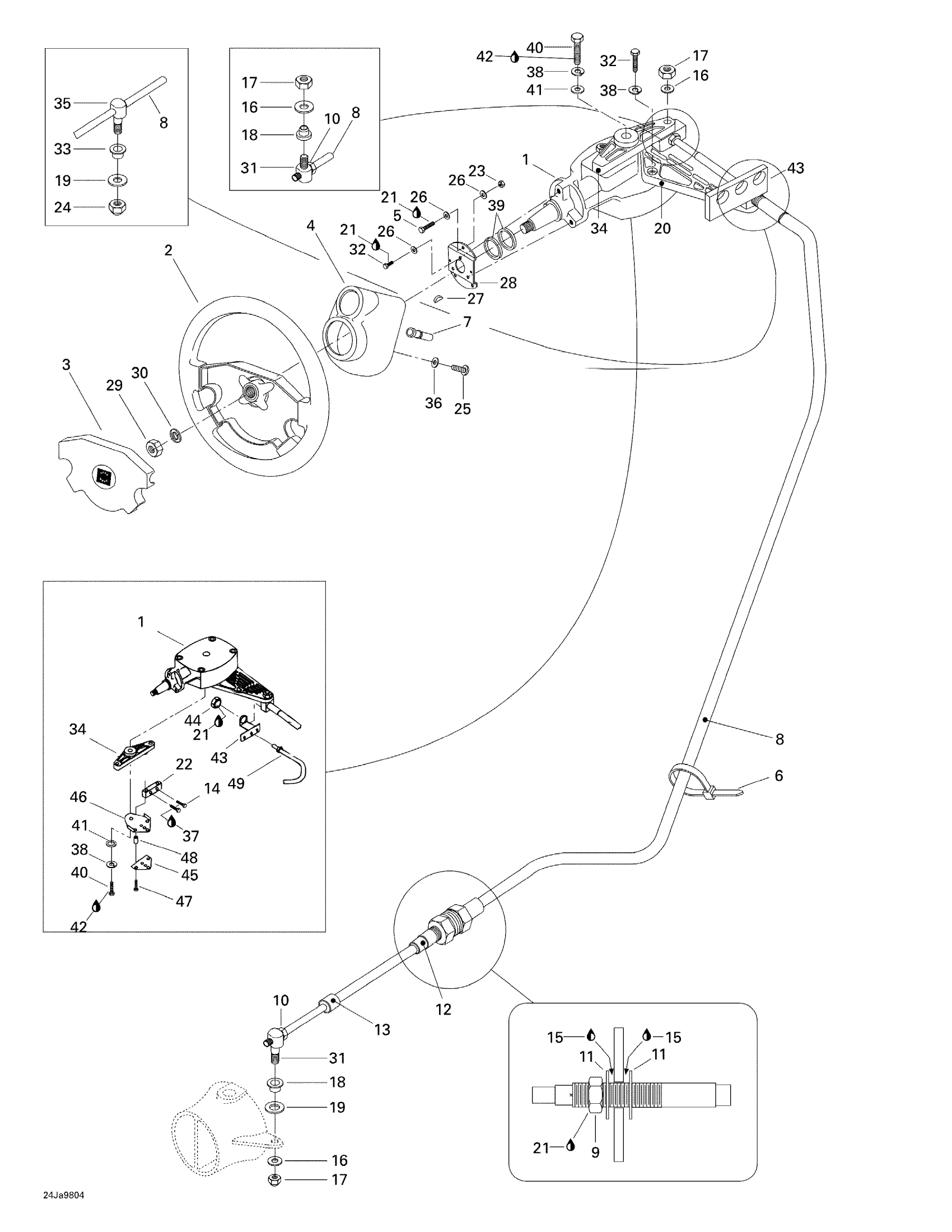

Sea-doo Sportster, 5614, 1998 07- Steering System Diagram
#
1
Helm Ass'y
277000342
Unavailable
2
STEERING, BLACK - Call your local BRP dealership
204390440
Unavailable
3
Steering Cover
204390097
Unavailable
4
Collar
204390029
Unavailable
5
Hex. Screw M6 X 30
207163060
$1.48
6
Tie-Rap 180 mm
414115200
$0.11
7
Grommet
204070238
Unavailable
8
Steering Cable | Includes 8 - 10.
204390070
Unavailable
9
Nut
277000437
Unavailable
10
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
11
Washer
277000438
Unavailable
12
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
13
Terminal Wiper
277000441
$11.99
14
SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership
215054560
Unavailable
15
Silicone Sealant 51388, 300 ml
296000309
$36.99
16
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
17
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
18
BUSHING - Call your local BRP dealership
293350012
Unavailable
19
Flat Washer 10 mm, Stainless
234001600
$1.15
20
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
21
Loctite 243, 10 ml
293800060
$21.49
22
Adjustment Block
204390056
Unavailable
23
Hex. Elastic Stop Nut M6
232561600
$1.15
24
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
25
Hex. Flange Screw K40 X 25
241142560
$2.64
26
Stainless Flat Washer M6
234061600
$0.33
27
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
28
Support
277000383
Unavailable
29
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
30
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
31
PIVOT - Call your local BRP dealership
277000456
Unavailable
32
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
33
Flanged Bushing
293350014
$12.99
34
Arm
277000459
Unavailable
35
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
36
Flat Washer 4 mm, Stainless
234042600
$1.15
37
Not Available As Spare Part - Friction Washer
Unavailable
38
Lock Washer 1/4”
211200025
$1.29
39
SPACER - Call your local BRP dealership
277000593
Unavailable
40
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
41
Spacer
204390057
Unavailable
42
Loctite 271, 10 ml
293800005
$26.99
43
Cable Support
204390035
Unavailable
44
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
45
UPPER CLIP - Call your local BRP dealership
204390267
Unavailable
46
Lower Clip
204390055
Unavailable
47
Hex. Screw M6 X 25
207162560
$1.47
48
SPACER 6.7 MM - Call your local BRP dealership
277000584
Unavailable
49
Throttle Cable
204390069
Unavailable
