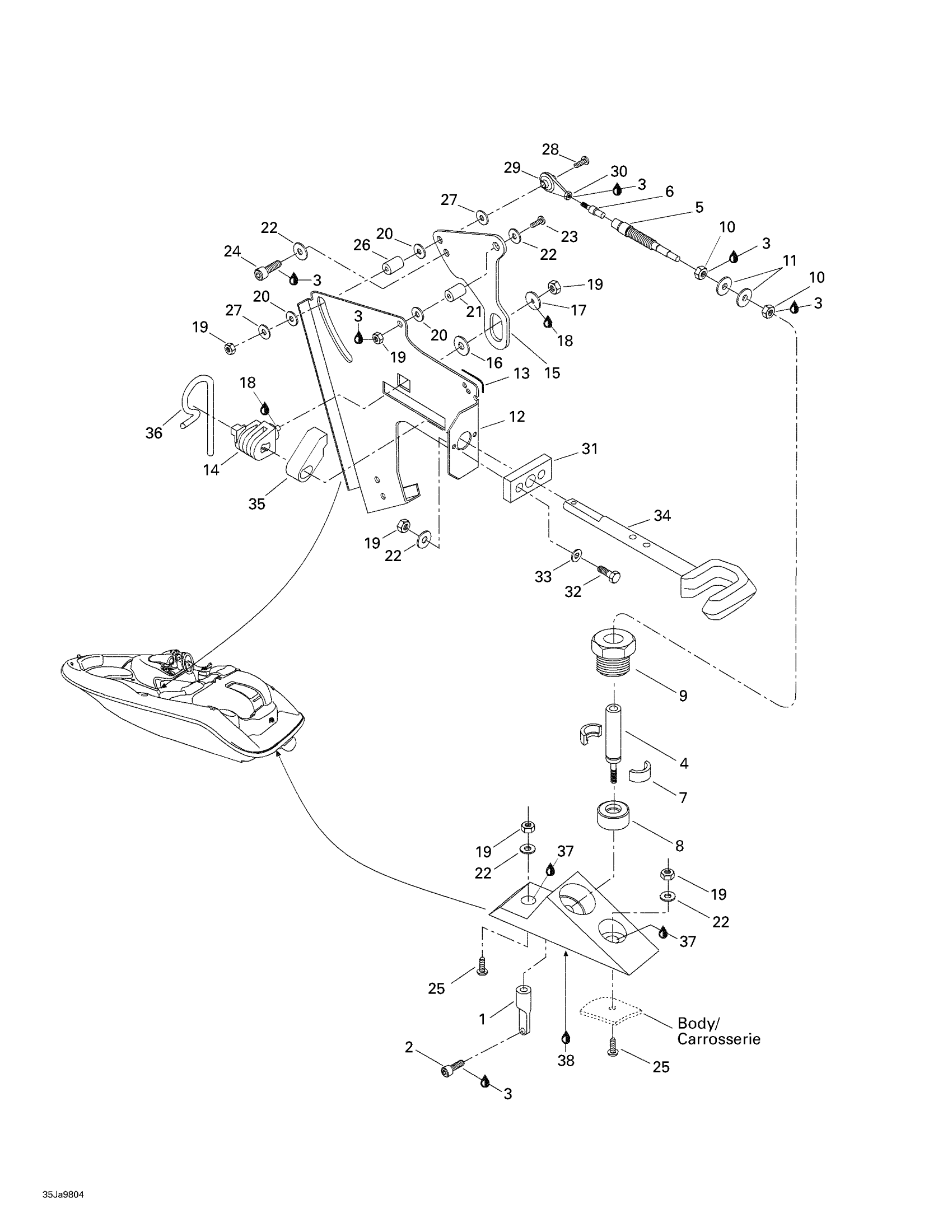

Sea-doo Sportster, 5614, 1998 05- Weedless System Diagram
#
1
Joint
204200006
Unavailable
2
Pivot Screw
211000103
Unavailable
3
Loctite 243, 10 ml
293800060
$21.49
4
Weedless Cable
204200026
Unavailable
5
Boot, Large
277000473
Unavailable
6
Boot, Small
277000466
Unavailable
7
HALF RING - Call your local BRP dealership
204200009
Unavailable
8
Rubber Washer
204200010
Unavailable
9
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
10
Hex. Jam Nut
212100006
Unavailable
11
Flat Washer
213200017
Unavailable
12
Weedless Support
204200014
Unavailable
13
Was 271000110 Protection Trim
219704353
$15.99
14
Sliding Block
271000269
Unavailable
15
Triangular Lever
204200018
Unavailable
16
Flat Washer 20 mm
211200012
Unavailable
17
Washer
271000061
Unavailable
18
Synthetic Grease, 400 G
293550010
Unavailable
19
Hex. Elastic Stop Nut M6
232561600
$1.15
20
Flat Washer 10 mm
217001000
Unavailable
21
Bushing
271000293
Unavailable
22
Stainless Flat Washer M6
234061600
$0.33
23
Hex. Screw M6 X 25
207162560
$1.47
24
Socket Screw M6 x 8
215960860
Unavailable
25
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership
208563060
Unavailable
26
Bushing
271000293
Unavailable
27
Flat Washer M6, Stainless
234062600
$0.77
28
Hex. Screw M6 X 40
207064060
$1.69
29
BALL JOINT - Call your local BRP dealership
277000153
Unavailable
30
Hex. Nut
212100005
$1.35
31
Guide Plate
271000057
Unavailable
32
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
33
Flat Washer 6 mm
217060600
Unavailable
34
Weedless Handle
204200015
Unavailable
35
Catch
271000268
Unavailable
36
Spring
271000270
Unavailable
37
Silicone Sealant 51388, 300 ml
296000309
$36.99
38
Instant Gasket
219701421
$51.99
