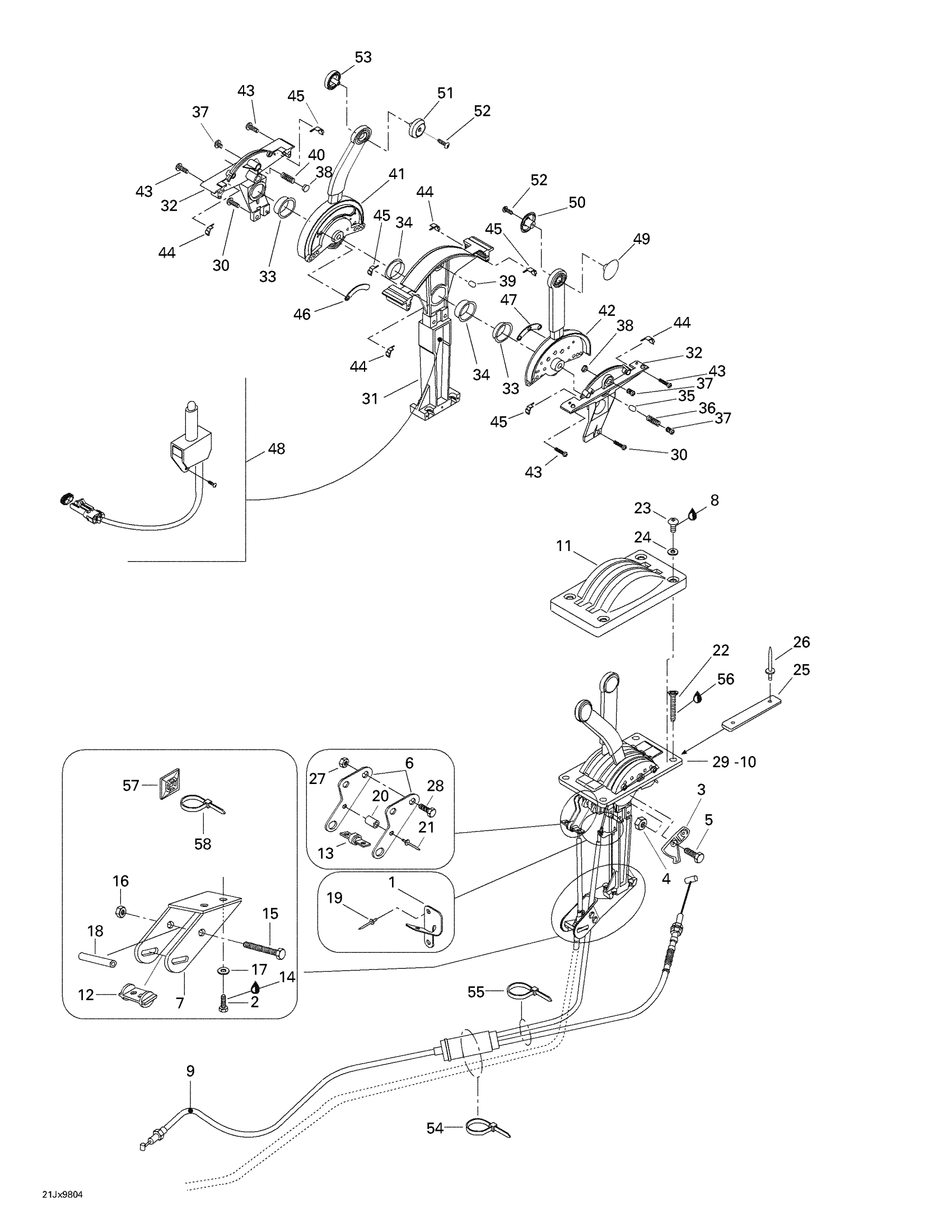

Sea-doo Sportster, 5614, 1998 05- Propulsion System Diagram
#
1
CABLE SUPPORT - Call your local BRP dealership
277000504
Unavailable
2
Hex. Screw M6 x 12
210000011
Unavailable
3
THROTTLE LINK - Call your local BRP dealership
204390045
Unavailable
4
Hex. Elastic Nut M5 | X
232551600
$1.15
5
SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership
215051660
Unavailable
6
LINK - REVERSE - Call your local BRP dealership
277000578
Unavailable
7
SUPPORT - Call your local BRP dealership
277000452
Unavailable
8
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
9
Throttle Cable
204390069
Unavailable
10
Synthetic Grease, 400 G
293550010
Unavailable
11
Control Cover
204390123
Unavailable
12
PIVOT BRACKET - Call your local BRP dealership
277000451
Unavailable
13
PIVOT BRACKET - Call your local BRP dealership
277000450
Unavailable
14
Loctite 243, 10 ml
293800060
$21.49
15
Screw M6 x 80
210100010
Unavailable
16
Hex. Elastic Stop Nut M6
232561600
$1.15
17
Lock Washer Helical M6
234161601
$1.15
18
SPACER - Call your local BRP dealership
277000453
Unavailable
19
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
20
SPACER - Call your local BRP dealership
277000449
Unavailable
21
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
22
SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership
216153060
Unavailable
23
Phillips Screw M4 X 10
208641060
$1.01
24
Flat Washer 4 mm
234040600
$0.55
25
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
26
Pop Rivet 3/16"
293150013
$1.37
27
Hex. Elastic Stop Nut M6
232561600
$1.15
28
Hex. Screw M6 X 16
207161660
$1.59
29
Ultraflex Control Ass'y | Includes 18 to 46
204390377
$1.00
30
Screw M5 X 14
277000660
Unavailable
31
Frame
277000661
Unavailable
32
Half-Case
277000653
Unavailable
33
BUSHING - Call your local BRP dealership
277000397
Unavailable
34
BUSHING - Call your local BRP dealership
277000398
Unavailable
35
BALL - Call your local BRP dealership
277000399
Unavailable
36
SPRING - Call your local BRP dealership
277000400
Unavailable
37
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
38
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
39
BLOCKING PIVOT - Call your local BRP dealership
277000404
Unavailable
40
SPRING - Call your local BRP dealership
277000401
Unavailable
41
THROTTLE LEVER - Call your local BRP dealership
277000655
Unavailable
42
SHIFT LEVER - Call your local BRP dealership
277000414
Unavailable
43
Screw M5 X 20
277000421
Unavailable
44
RH Water Seal
277000423
Unavailable
45
LH Water Seal
277000424
Unavailable
46
THROTTLE LEVER SPACER - Call your local BRP dealership
277000659
Unavailable
47
Shift Lever Spacer
277000408
Unavailable
48
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership
278001195
Unavailable
49
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership
277000417
Unavailable
50
HALF-SHIFT HANDLE - Call your local BRP dealership
277000418
Unavailable
51
HALF-THROTTLE HANDLE - Call your local BRP dealership
277000416
Unavailable
52
SCREW M3.5 X 25 - Call your local BRP dealership
277000419
Unavailable
53
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership
277000415
Unavailable
54
Tie-Rap 180 mm
414115200
$0.11
55
Tie Wrap 142 mm
293750002
$1.25
56
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
57
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
58
Tie Wrap 94 mm | 4X4
293750001
$1.03
