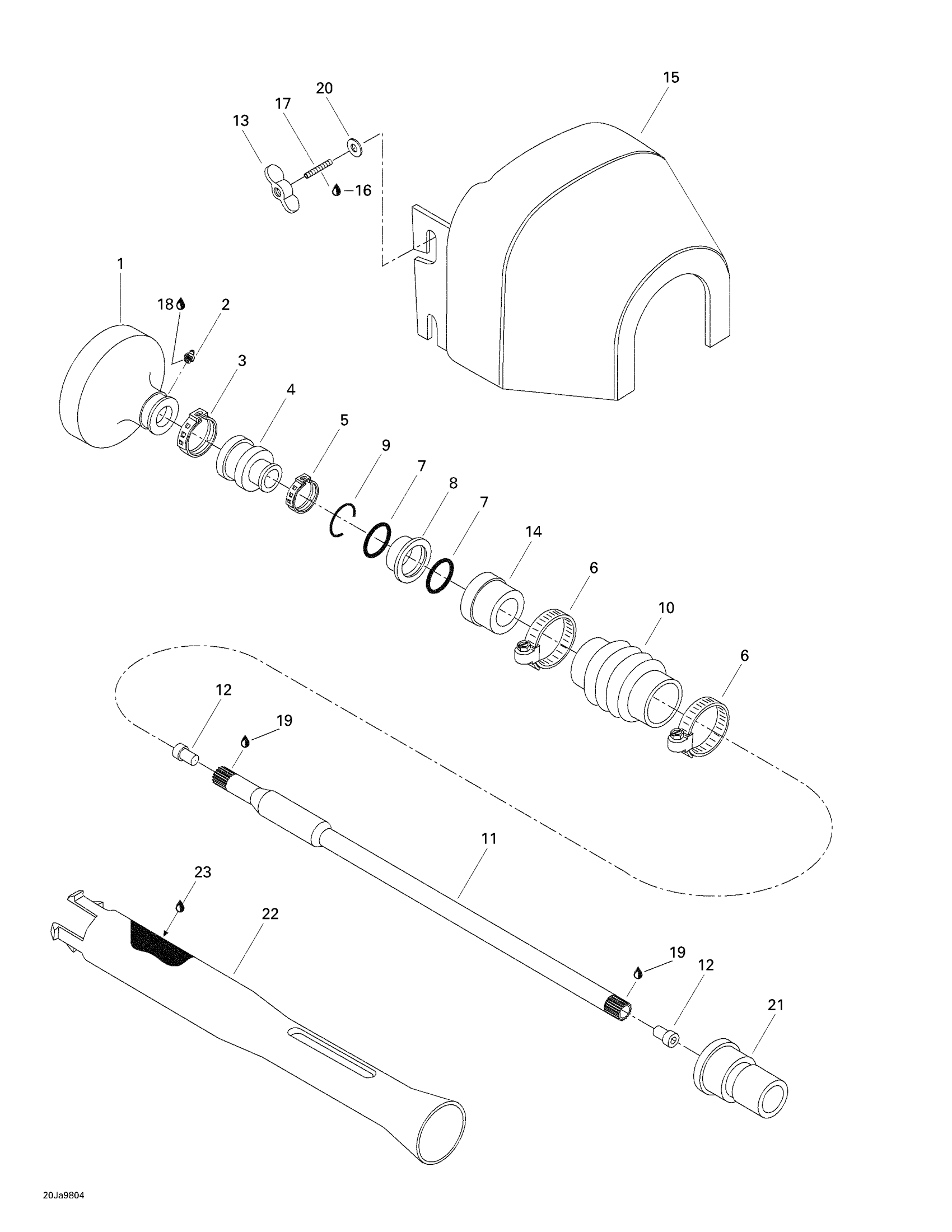

Sea-doo Sportster, 5614, 1998 Drive System Diagram

#

Description
Price

1

Clutch-Flywheel | Includes 23 - 24.

290958011

Unavailable

2

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

$11.06

7

O-Ring

293300032

$6.03

8

Support Ring

272000064

$66.49

9

C-CLIP - Call your local BRP dealership

272000135

Unavailable

10

BELLOWS - Call your local BRP dealership

272000184

$27.99

11

Drive Shaft

204120064

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$2.19

14

Carbon Ring

272000770

$45.99

15

Flywheel Guard

204120117

Unavailable

16

Loctite 271, 10 ml

293800005

$26.99

17

Stud M8 x 15

211300013

Unavailable

18

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

19

Synthetic Grease, 400 G

293550010

Unavailable

20

Flat Washer 8 mm, Stainless

234082600

$2.43

21

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

22

Shaft Protector

204120080

Unavailable

23

Instant Gasket

219701421

$51.99
