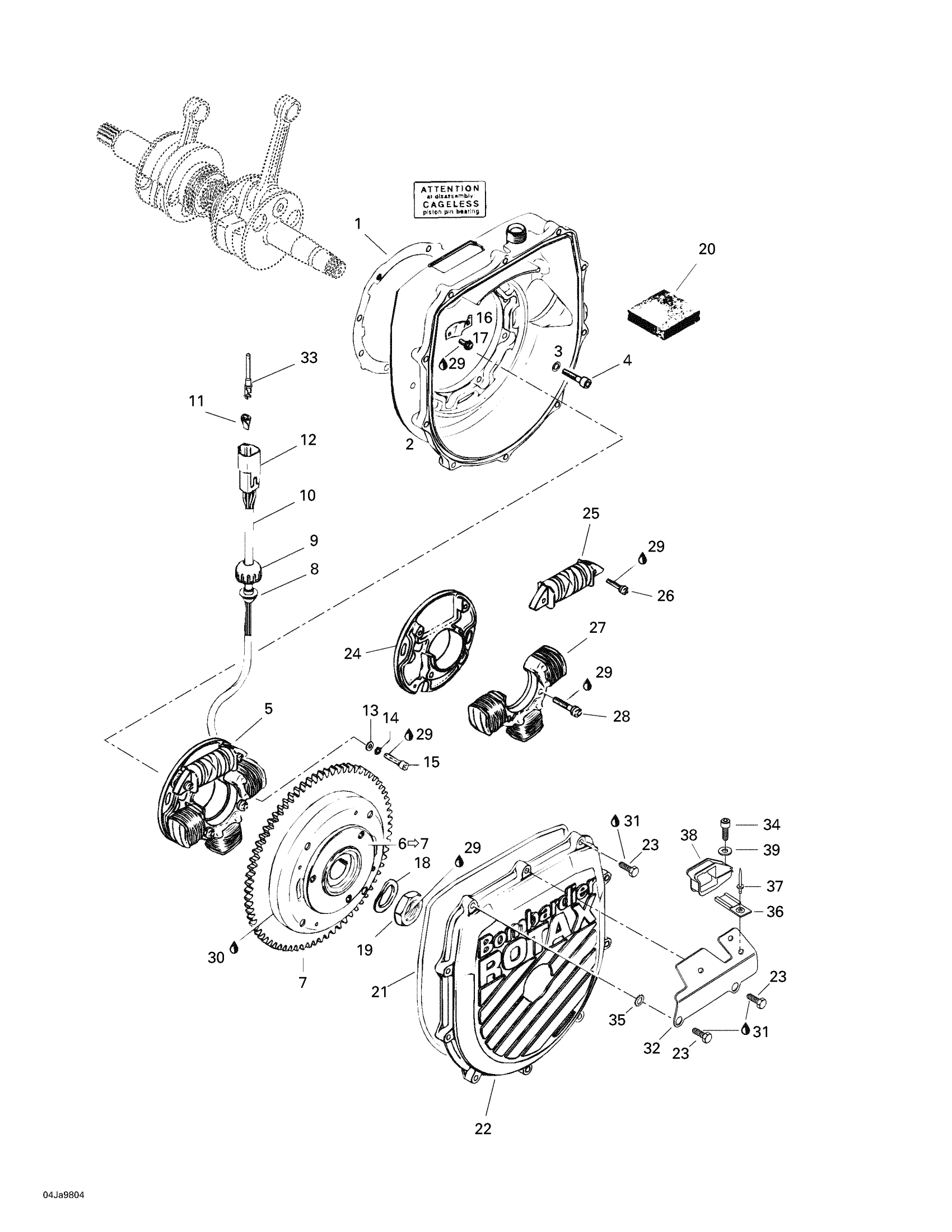

Sea-doo Sportster, 5614, 1998 03- Magneto Diagram
#
1
GASKET - Call your local BRP dealership
290850605
Unavailable
2
Ignition Housing (Silver)
290810099
Unavailable
3
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
4
Socket Head Screw M6 X 25
205062544
$1.15
5
ARMATURE PLATE ASS'Y - Call your local BRP dealership This part replaces 290886725.
420886725
Unavailable
6
MAGNETO FLYWHEEL ASS'Y - Call your local BRP dealership | Includes 6 - 7.
290995119
Unavailable
6
Flywheel
290995118
Unavailable
7
Starter Gear 77 Teeth
290834060
Unavailable
8
Grommet
293720034
Unavailable
9
Electric Wire Cap
278000100
Unavailable
10
Tubing Isolation (75 mm)
290260931
Unavailable
11
Female Wedge, 4 Circuits
278000636
$4.39
12
Female Housing, 4 Circuits
278000635
$16.49
13
Washer
290827800
Unavailable
14
Lock Washer 5 mm
290945750
Unavailable
15
Socket Head Screw M5 x 18
290840515
Unavailable
16
Retainer Plate
290853080
Unavailable
17
Hex. Screw M5 x 8
215050848
Unavailable
18
Lock Washer, 22 mm
420945759
$1.90
19
Hex. Nut, M22 X 1.5
420842239
$17.53
20
Protection Mat
290860680
Unavailable
21
O-Ring
290831555
Unavailable
22
Ignition Cover
290810146
Unavailable
23
Taptite Screw
290841543
Unavailable
24
Armature Plate
290866725
Unavailable
25
GENERATING COIL - Call your local BRP dealership
410915200
Unavailable
26
Combined Screw M5 x 22
290940810
Unavailable
27
Lighting Coil
410916200
Unavailable
28
SCREW M6 X 25 WITH WASHER - Call your local BRP dealership
410913900
Unavailable
29
Loctite 243, 10 ml
293800060
$21.49
30
Sealant Loctite 648
219703000
$45.99
31
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
32
Regulator Support
204250026
Unavailable
33
Male Terminal
278000631
$4.39
34
Socket Screw M6 X 16
205061660
$1.48
35
External Serrated Lock Washer 6 mm
234461608
$1.15
36
Clip
270000141
$11.49
37
Pop Rivet 3/16"
204000081
$1.49
38
Adaptor
270000158
Unavailable
39
Stainless Flat Washer M6
234061600
$0.33
40
Engine Gasket Set (Not Shown)
290886317
Unavailable
