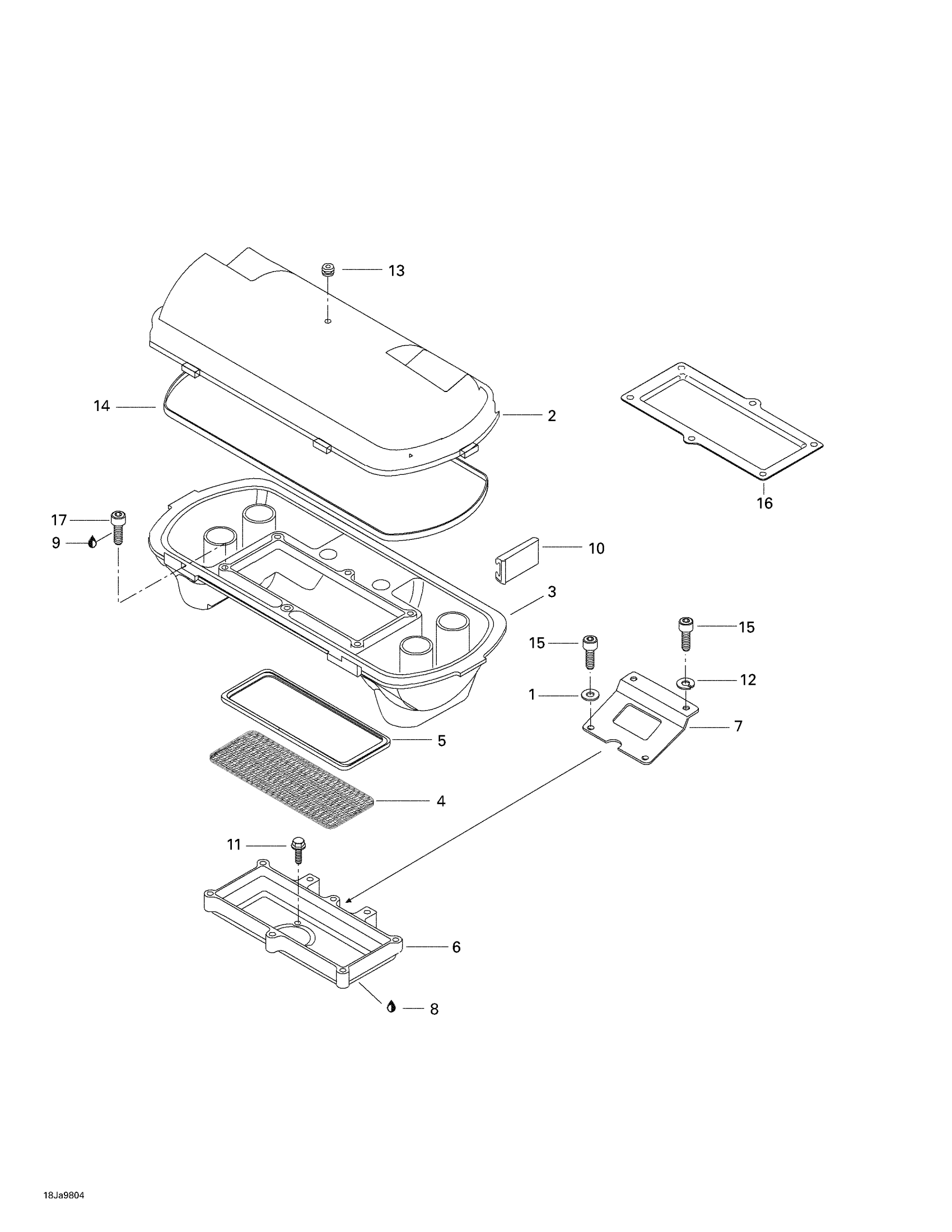

Sea-doo Sportster, 5614, 1998 Air Intake System Diagram

#

Description
Price

1

Stainless Flat Washer M6

234061600

$0.33

2

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

3

AIR SILENCER BASE - Call your local BRP dealership

273000103

Unavailable

4

Flame Arrester

273000118

Unavailable

5

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

6

HOUSING ARRESTER - Call your local BRP dealership

273000094

Unavailable

7

SUPPORT - Call your local BRP dealership

270000261

Unavailable

8

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

9

Loctite 243, 10 ml

293800060

$21.49

10

Retainer Clip

273000006

Unavailable

11

SCREW-HEX.FLANGE S.GRIP - Call your local BRP dealership

211000176

Unavailable

12

Lock Washer Helical M6

234161601

$1.15

13

Rubber Bumper

293830005

$8.09

14

GASKET - Call your local BRP dealership

293250023

Unavailable

15

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

16

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

17

Socket Head Screw M6 X 25

205062560

$1.69
