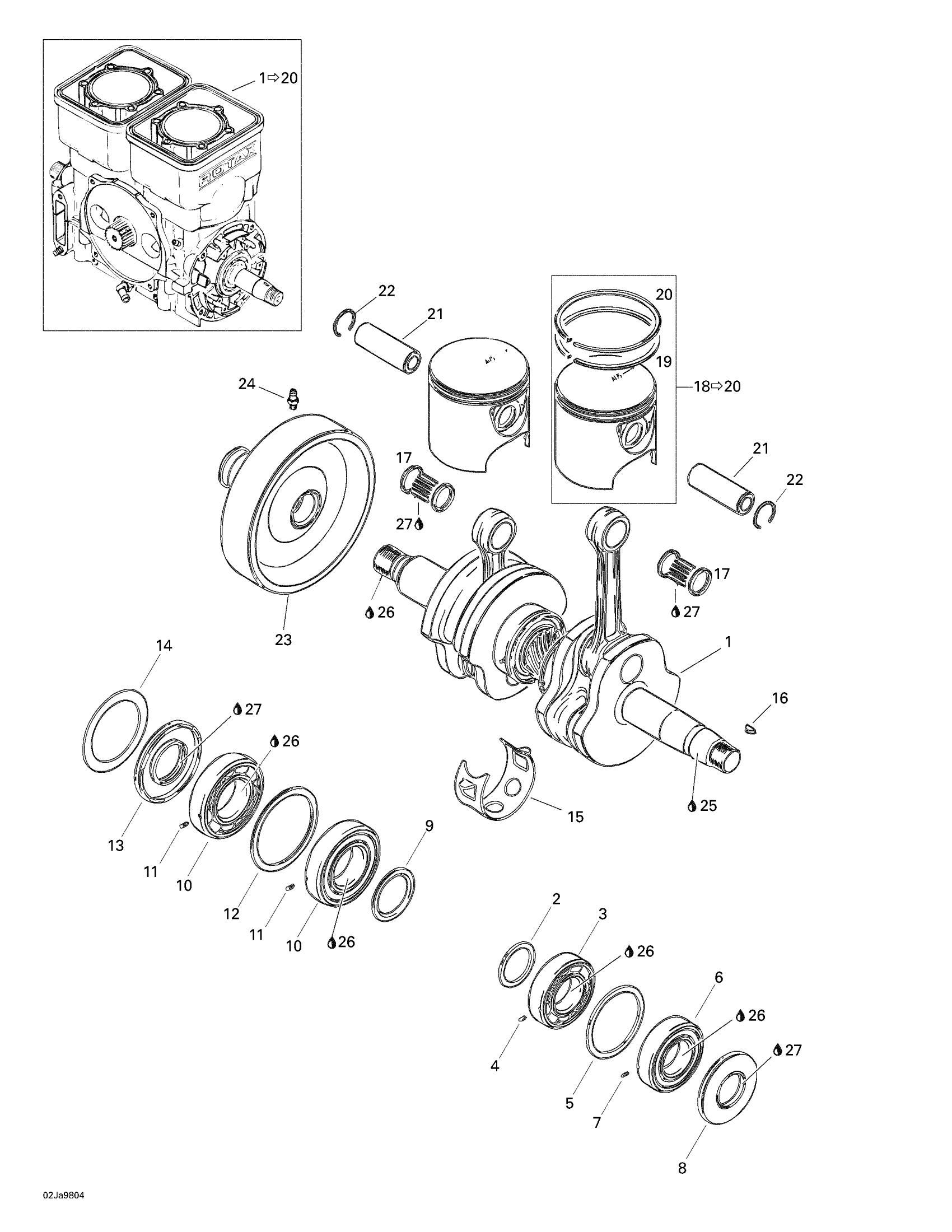

Sea-doo Sportster, 5614, 1998 01- Crankshaft And Pistons Diagram
#
Description
Price
1
Short Block Ass'y | Includes 1 - 20.
290881521
Unavailable
1
Crankshaft Ass'y | Includes 1 - 13.
290887862
Unavailable
2
RING-DISTANCE RING - Call your local BRP dealership This part replaces 290827447.
420827448
Unavailable
3
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
4
Dowel Pin
420929972
Unavailable
5
Retaining Disk
290827050
Unavailable
6
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
7
Rolled Pin
290832470
Unavailable
8
Oil Seal This part replaces 290830749.
420830749
$18.54
9
Distance Ring
290827760
Unavailable
10
Ball Bearing 6207 | Includes 10 - 11.
290832574
Unavailable
11
Dowel Pin
420929972
Unavailable
12
Retaining Disk
420927710
$7.41
13
Oil Seal This part replaces 290831952.
420831952
$18.01
14
RETAINING SHIM - Call your local BRP dealership
290926060
Unavailable
15
Retaining Ring
290926070
Unavailable
16
Woodruff Key
420246055
$2.43
17
NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.
420832421
Unavailable
18
PISTON WITH 2 RINGS, 81.90 MM - Call your local BRP dealership | Includes 18 - 20.
290887670
Unavailable
Piston with 2 Rings, 82.15 mm
290887671
Unavailable
Piston with 2 Rings, 82.40 mm
290887672
Unavailable
19
Rectangular Ring 82.00 mm
290815080
Unavailable
Rectangular Ring 82.25 mm
290815081
Unavailable
Rectangular Ring 82.50 mm
290815082
Unavailable
20
Semi-Trapez Ring 82.00 mm
290815070
Unavailable
Semi-Trapez Ring 82.25 mm
290815071
Unavailable
Semi-Trapez Ring 82.50 mm
290815072
Unavailable
21
Piston Pin This part replaces 290916402.
420916404
$28.49
22
Circlip
290845100
Unavailable
23
Clutch-Flywheel | Includes 23 - 24.
290958011
Unavailable
24
GREASE FITTING - Call your local BRP dealership
290499113
Unavailable
25
Loctite 243, 10 ml
293800060
$21.49
26
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
27
Dow Corning 111, 150 g
413707000
$59.99
28
Engine Gasket Set (Not Shown)
290886317
Unavailable
29
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886316
Unavailable
