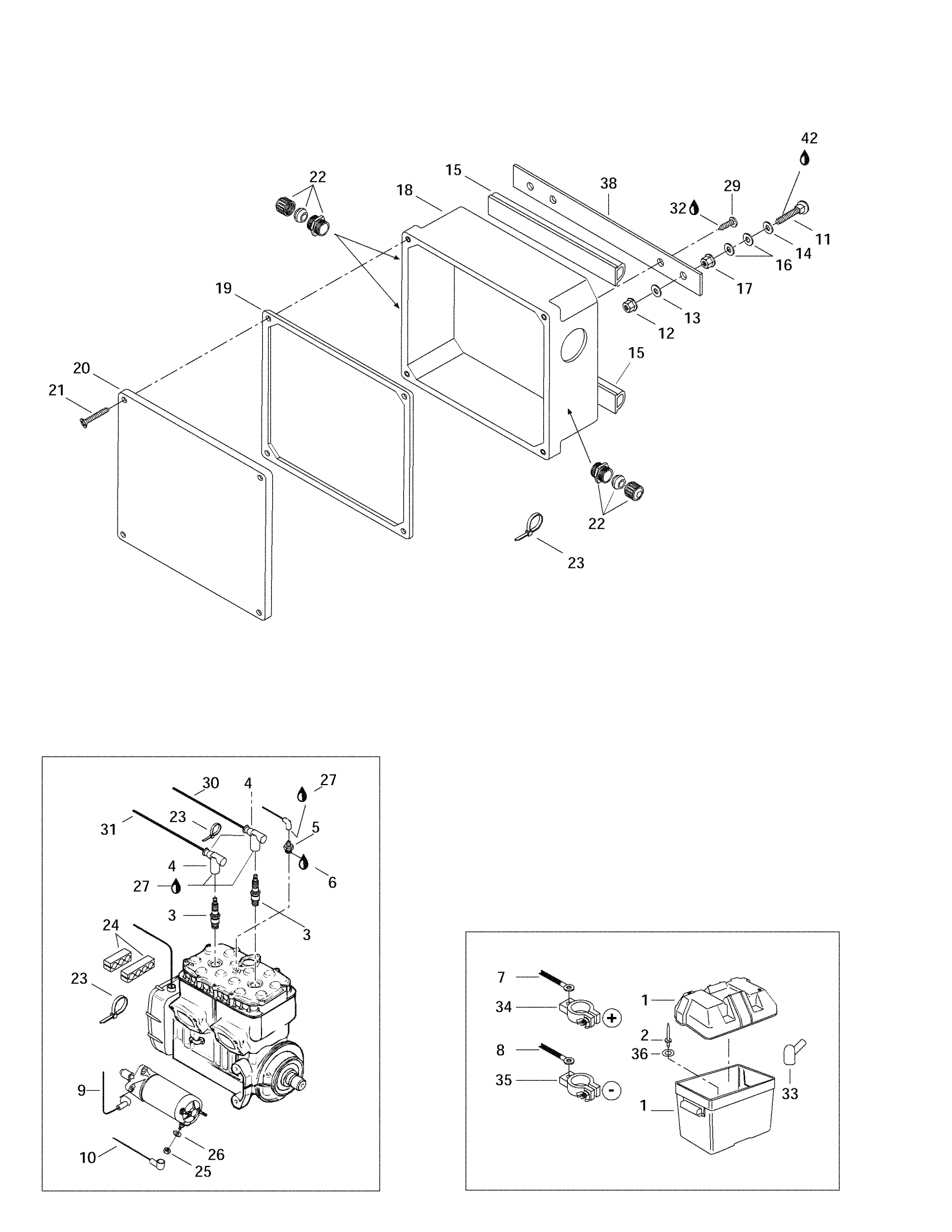

Sea-doo Sportster, 5605/5609, 1997 Electrical System Diagram

#

Description
Price

1

Battery Support

278000573

Unavailable

2

Pop Rivet 3/16"

293150008

$0.50

3

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

$4.23

4

Spark Plug Cap

204470091

Unavailable

5

Temperature Sensor

278000194

Unavailable

6

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

7

Cable - Red

278000875

Unavailable

8

Ground Cable - Plate

278000575

Unavailable

9

Battery Ground Cable

278000723

Unavailable

10

Starter Cable - Left

278000865

Unavailable

11

Elevator Bolt

204000130

Unavailable

12

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

13

Flat Washer M6, Stainless

234062600

$0.77

14

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

15

Was 293200017 Neoprene Seal

219704365

$149.99

16

Stainless, Flat Washer 8 mm

234081600

$0.55

17

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

18

ElectricalBox(Incl.It.22)

278000788

Unavailable

19

Gasket

293250052

Unavailable

20

Cover

278000873

Unavailable

21

Screw 1/4-20 x 5/8

211000052

Unavailable

22

Cap & Grommet

278000528

Unavailable

23

Tie Wrap 142 mm

293750002

$1.25

24

4 Wire Support

278000346

Unavailable

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

25

Hex. Elastic Stop Nut M6

232561600

$1.15

26

Stainless Flat Washer M6

234061600

$0.33

27

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

28

Electrical Box Support

278000856

Unavailable

29

Screw 1/4"

211000053

Unavailable

30

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

31

Spark Plug Wire 530 (MAG)

278000322

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

34

Battery Pole (Positive)

278000679

Unavailable

35

Battery Pole (Negative)

278000680

Unavailable

36

Flat Washer 5 mm, Stainless

234052600

$0.77
