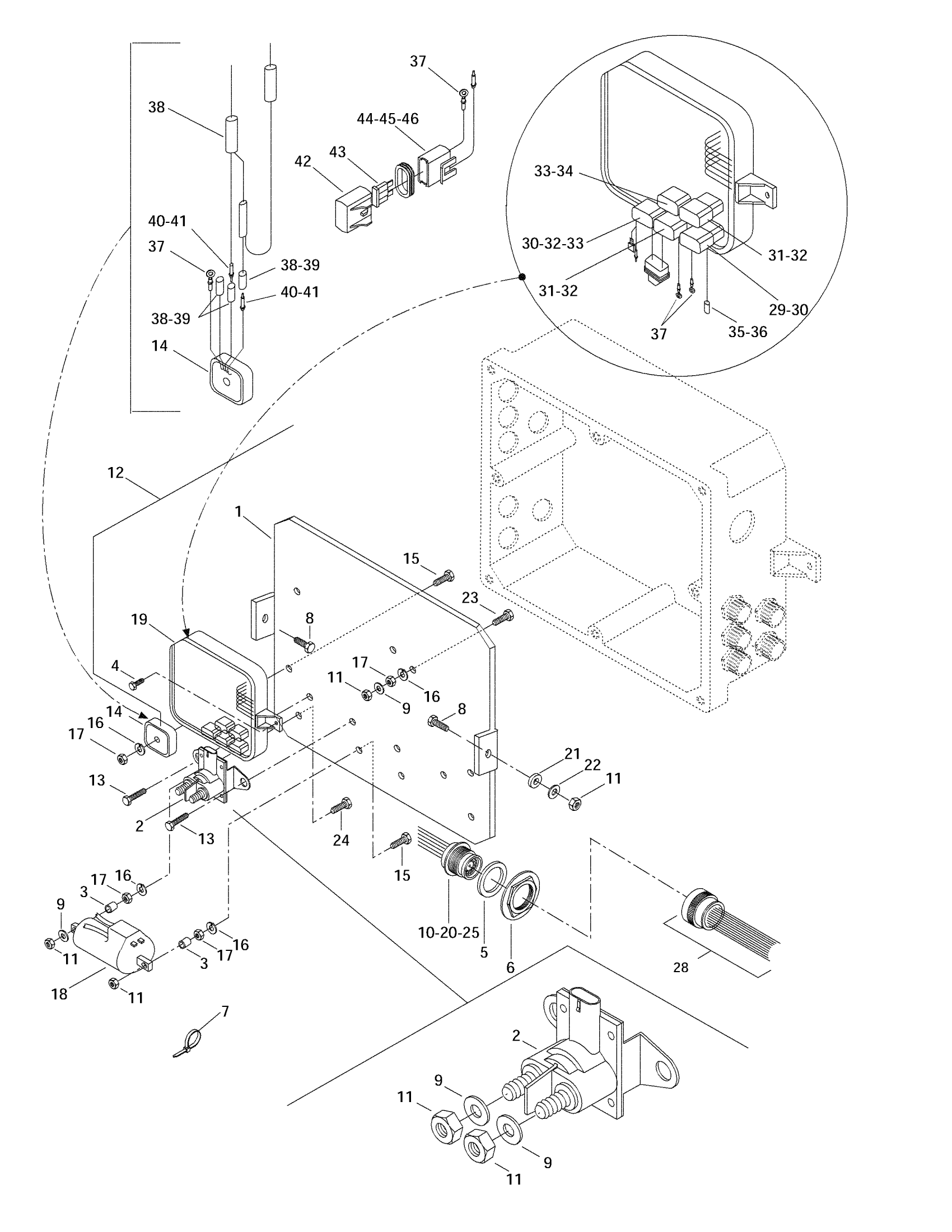

Sea-doo Sportster, 5605/5609, 1997 Electrical Box Diagram

#

Description
Price

1

Mounting Plate

278000874

Unavailable

2

Starter Relay

278003012

$35.07

3

SPACER - Call your local BRP dealership

278000235

Unavailable

4

Taptite Screw M6 x 16

211000080

Unavailable

5

Gasket(Canon)

293250053

Unavailable

6

Nut(Canon)

211100029

Unavailable

7

Tie Wrap 94 mm | 4X4

293750001

$0.83

8

Hex. Forming Screw M6 X 20

207162060

$1.03

9

Stainless Flat Washer M6

234061600

$0.25

10

Male Terminal

278000869

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

$0.92

12

<> Wire (Not Shown) (Incl. It.8, 9)

278000588

Unavailable

13

Hex. Flange Screw M6 X 10

210261040

$1.25

14

RECTIFIER ASS'Y - Call your local BRP dealership | Includes 1 - 6.

278000123

Unavailable

15

Hex. Screw M6 X 35

207163560

$1.17

16

Lock Washer Helical M6

234161601

$0.92

17

Hex. Nut M6

232061600

$0.91

18

IGNITION COIL - Call your local BRP dealership

278000586

Unavailable

19

ElectronicModuleAss'y | Includes 19 - 20. (Incl.It.10,25)

204470035

Unavailable

20

Male Terminal(Canon)

278000868

Unavailable

21

Rubber Washer 6 mm

211200032

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.64

23

Hex. Screw M6 X 25

207162560

$1.22

24

Hex. Screw M6 X 40

207164060

$2.74

25

Female Housing(Canon)

278000867

Unavailable

26

Fuse Holder

204470059

Unavailable

27

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

28

Harness Ass'y.(Incl. 20, 22) | Includes 1 - 17.

204470036

Unavailable

29

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

30

Fuse, 15 Amperes

278000343

$2.72

31

Fuse Holder Cap

278001326

$6.03

32

Fuse, 5 Amperes | CE

278000344

$3.22

33

Fuse Holder

278000379

Unavailable

34

Fuse, 20 Amperes

409003900

$3.22

35

Female Terminal | DS 650 X

278001009

$2.55

36

Insulated Sheath

278001007

$3.22

37

Open Barrel

278000992

$1.79

38

Female Terminal | DS 650 X

278001009

$2.55

39

Insulated Sheath

278001007

$3.22

40

Male Terminal

278000230

$3.48

41

Insulation Sheath

278000231

$4.13

42

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

43

Fuse, 20 Amperes

409003900

$3.22

44

Wire Seal

278000218

$3.48

45

Male Connector, 2 Circuits

278000220

$11.02

46

Female Housing, 2 Circuits

278000217

$7.59
