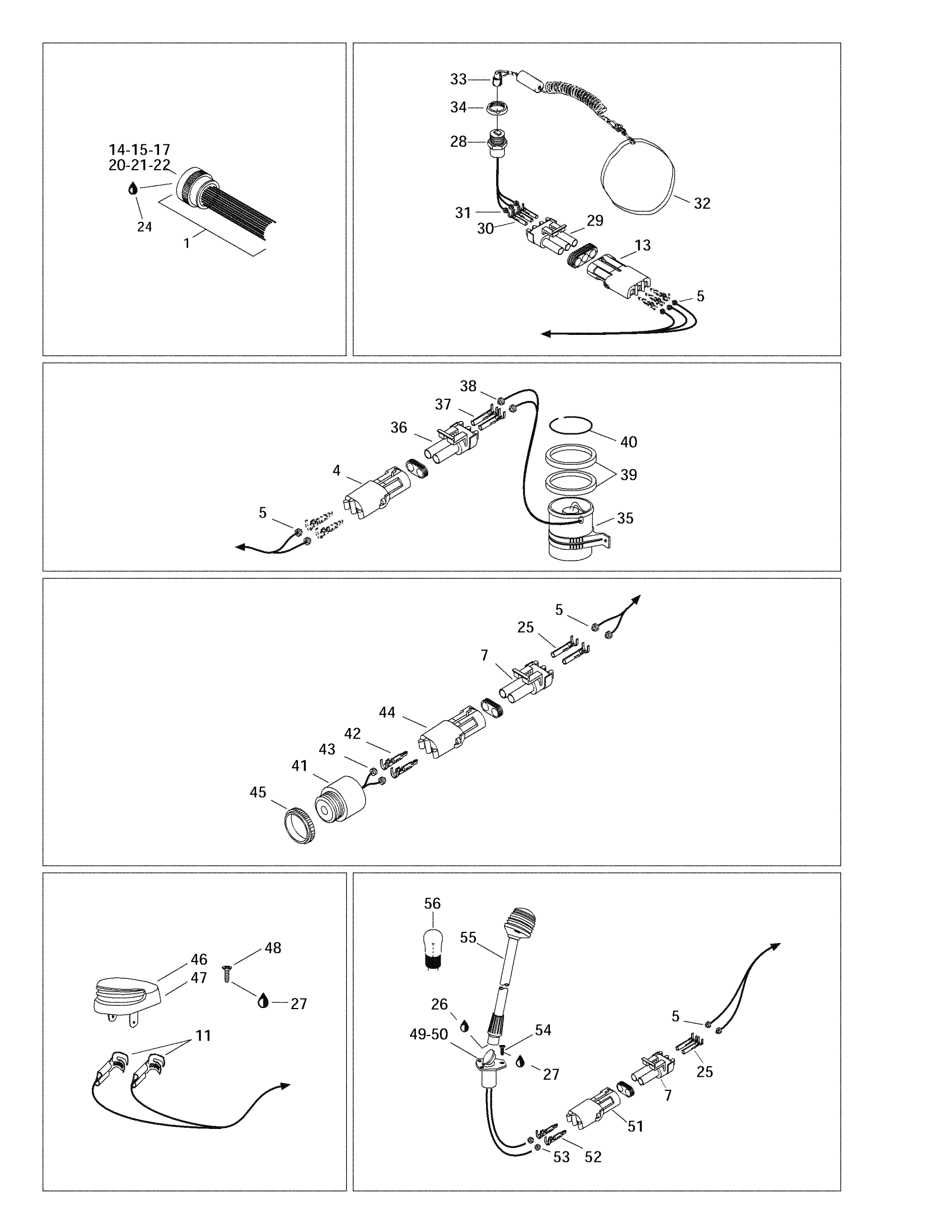

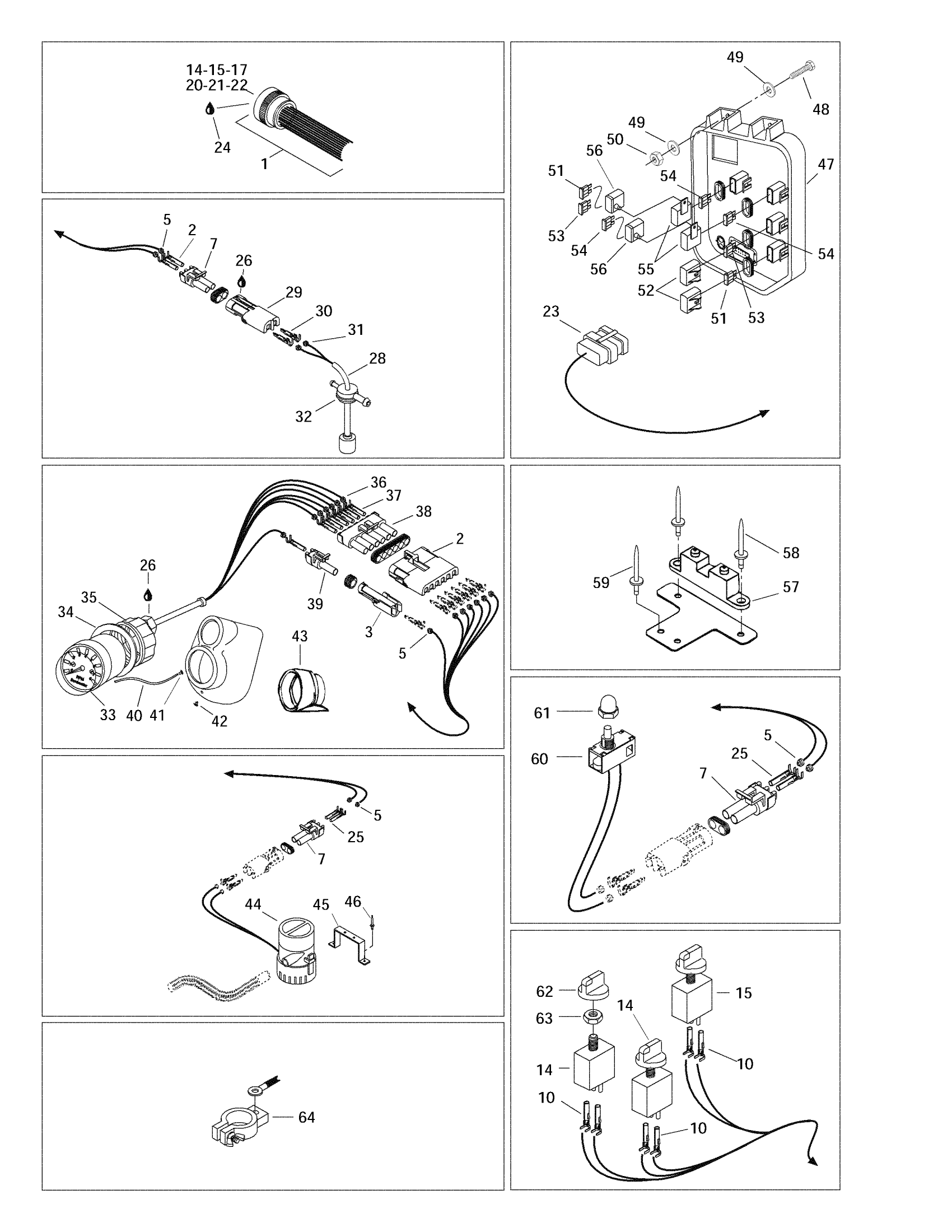

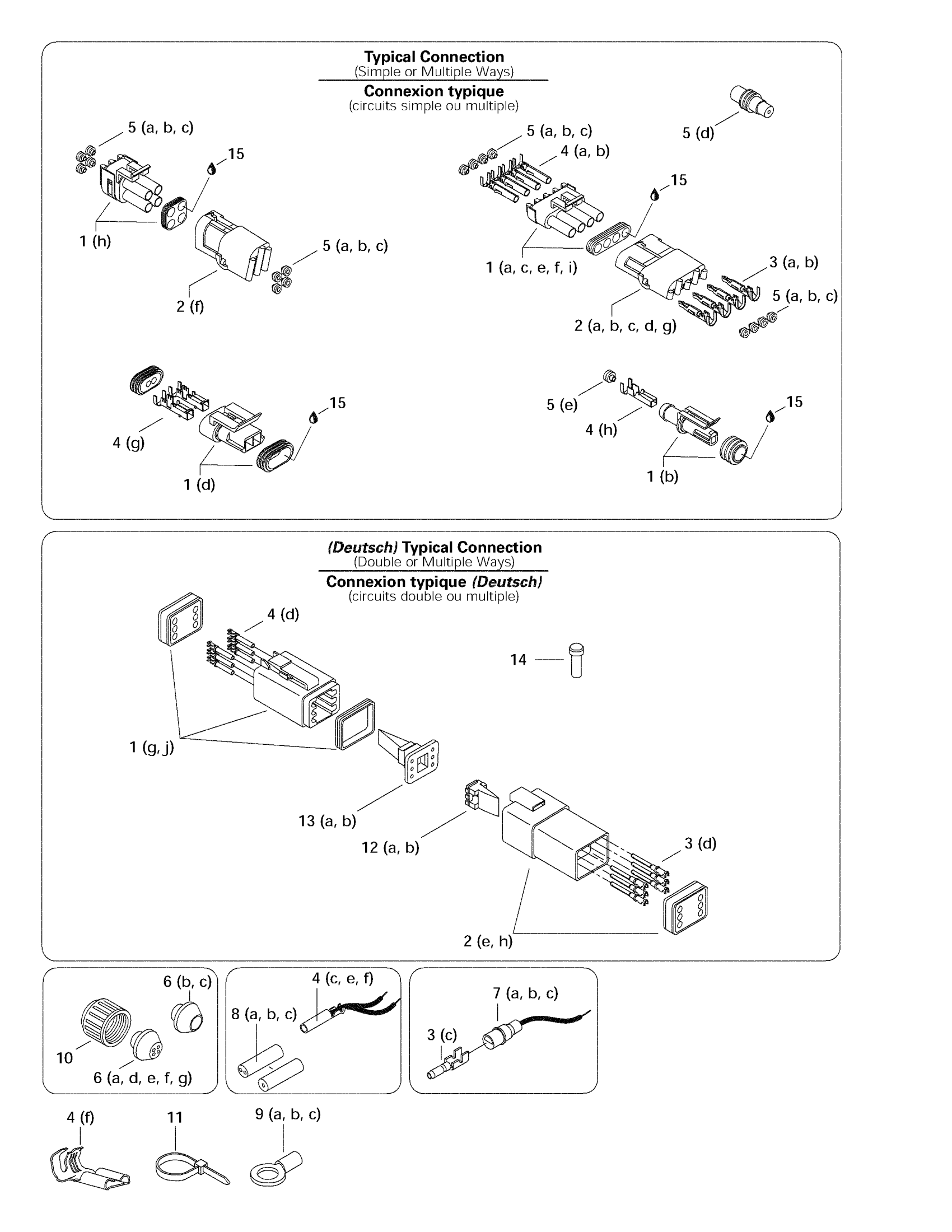

Sea-doo Sportster, 5605/5609, 1997 Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y (Incl. It. 20,22) | Includes 1 - 17204.

470036

Unavailable

2

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

3

Female Housing, 1 Circuit

278000161

$9.59

4

Female Housing, 2 Circuits

278000217

$9.59

5

Wire Seal

278000218

$4.39

6

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

7

Male Connector, 2 Circuits

278000220

$15.49

8

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

9

Male Terminal | XT Models

278000222

$3.19

10

Female Terminal

278000223

$3.19

11

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

12

Male Housing, 3 Circuits

278000273

$9.59

13

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

14

Fan Switch

278000540

Unavailable

15

Light Switch

278000541

Unavailable

16

Male Terminal

278000631

$4.39

17

Switch Nut

278000647

Unavailable

18

Male Lock, 4 Circuits | CE

278000738

$3.09

19

Male Connector, 4 Circuits | CE

278000739

$19.49

20

Male Housing(Canon)

278000870

Unavailable

21

Female Terminal(Canon)

278000871

Unavailable

22

Female terminal(Canon)

278000872

Unavailable

23

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

Female Terminal

409007300

$0.45

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Loctite 243, 10 ml

293800060

$21.49

28

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

29

Female Housing, 2 Circuits

278000217

$9.59

30

Male Terminal | XT Models

278000222

$3.19

31

Wire Seal

278000218

$4.39

32

Grommet

204470104

Unavailable

33

Fuel / Oil Gauge

204470061

Unavailable

34

Gasket

293250040

Unavailable

35

Gauge Nut

278000743

Unavailable

36

Wire seal (16-18 gauge) (vert)

278000278

Unavailable

37

Female Terminal

278000223

$3.19

38

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

39

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

40

Teleflex hose

204470122

Unavailable

41

Grommet

293720029

$1.59

42

Fitting bleed

204470120

Unavailable

43

GAUGE SUPPORT - Call your local BRP dealership

293720005

Unavailable

44

Bilge Pump This part replaces 204470220.

278002020

$99.49

45

Bilge Pump Support

292000236

Unavailable

46

Pop RIvet 1/8 X ,375

293150285

$0.33

47

Fuse Block Ass'y | Includes 37 - 43.

204470119

Unavailable

48

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

49

Flat Washer M6, Stainless

234062600

$0.77

50

Hex. Elastic Stop Nut M6

232561600

$1.15

51

Fuse, 10 Amperes | North America

278001197

$2.21

52

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

53

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

54

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

55

Fuse Holder Cap

278001326

$7.69

56

Fuse Holder

278000379

Unavailable

57

WATER SENSOR - Call your local BRP dealership

204470038

Unavailable

58

Pop Rivet 5/32

293150050

Unavailable

59

Pop Rivet 3/16"

293150008

$0.50

60

RH IGNITION SWITCH - Call your local BRP dealership

278000622

Unavailable

61

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

62

SWITCH CAP - Call your local BRP dealership

278000542

Unavailable

63

Buzzer Nut

278000707

Unavailable

64

Battery Pole (Positive)

278000679

Unavailable

Battery Pole (Positive)

278000679

Unavailable
