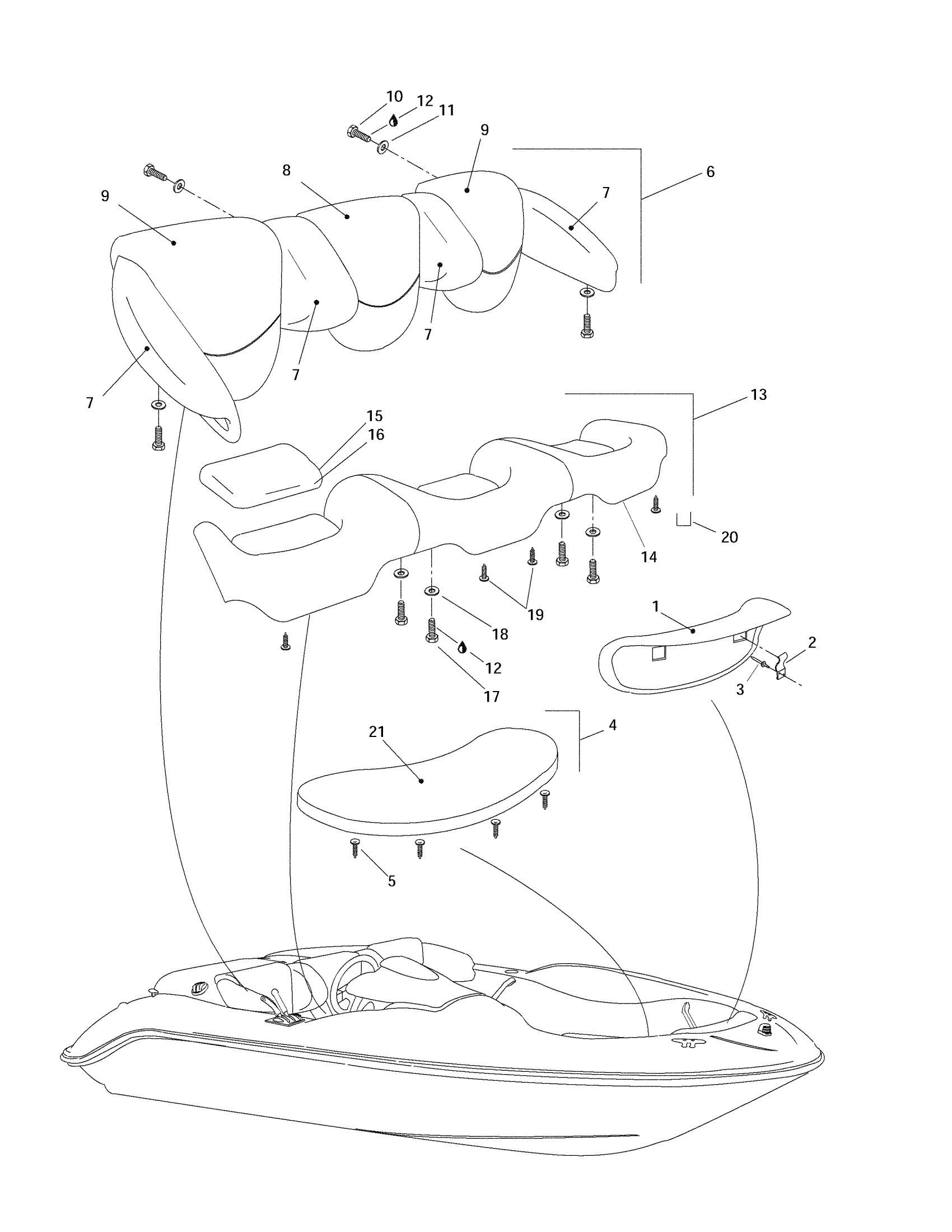

Sea-doo Sportster, 5605/5609, 1997 Seats Diagram

#

Description
Price

1

Front Backrest (Ultra-Marine) | Includes 1 - 2.

204610094

Unavailable

2

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

3

Pop Rivet 3/16"

293150043

$2.09

4

Front Seat (Incl. It. 21)

269000381

Unavailable

5

Black, Dart

293730006

$0.99

6

Rear Backrest Ass'y (U-Marine) | Includes 6 - 10.

204610075

Unavailable

7

Backrest Cover

204610091

Unavailable

8

RR Central Backrest Cover (White)

269000280

Unavailable

9

Backrest Cover (White, U-Marine)

204610092

Unavailable

10

Hex. Screw M6 X 25

207162560

$1.47

11

Flat Washer M6, Stainless

234062600

$0.77

12

Loctite 243, 10 ml

293800060

$21.49

13

Rear Seat Ass'y (U-Marine) | Includes 13 - 16.

204610078

Unavailable

14

Rear Seat Cover

204610093

Unavailable

15

Rear Seat Pillow Cover

269000231

Unavailable

16

Rear Seat Pillow Foam

269000232

Unavailable

17

Hex. Screw M6 X 30

207063060

$1.89

18

Flat Washer M6, Stainless

234062600

$0.77

19

Black Dart

293730014

$0.99

20

Staple

293730005

Unavailable

21

Front Deat Cover

269000382

Unavailable
