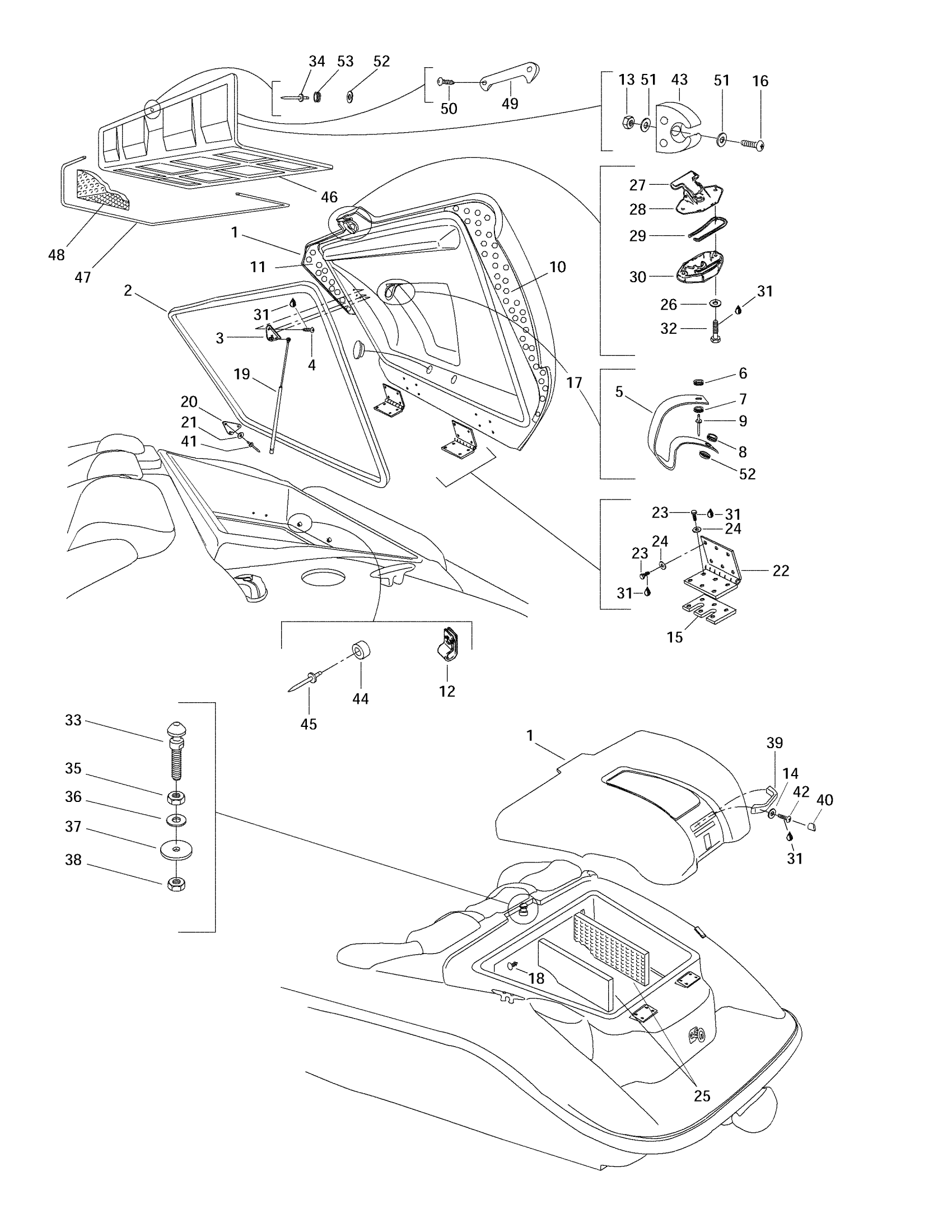

Sea-doo Sportster, 5605/5609, 1997 Engine Compartment Diagram

#

Description
Price

1

Engine Cover

295500373

Unavailable

2

Seal Tray 1000Mm Long

219704368

$13.99

3

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

4

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

5

NYLON STRAP - Call your local BRP dealership

204070106

Unavailable

5

Nylon Strap (Black) (Meter)

204000075

Unavailable

6

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

7

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

8

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

9

Pop Rivet 1/8”

293150015

$0.40

10

LH Foam Cover

204320011

Unavailable

11

RH Foam Cover

204320012

Unavailable

12

Clip Cable

414839700

Unavailable

13

Elastic Stop Nut M4

232541600

$1.15

14

Stainless Flat Washer M6

234061600

$0.33

15

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

16

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

17

NYLON STRAP - Call your local BRP dealership

204070106

Unavailable

18

Black, Dart

293730006

$0.99

19

Cylinder

291000822

Unavailable

20

Shock Support

291000615

Unavailable

21

Flat Washer M5, Stainless

234051600

$0.77

22

HINGE - Call your local BRP dealership

204070084

Unavailable

23

Hex. Screw M6 X 25

207162560

$1.47

24

Stainless Flat Washer M6

234061600

$0.33

25

LH Engine Compartment Foam

237500012

Unavailable

Engine Foam R.H

237500011

Unavailable

26

Stainless Flat Washer M6

234061600

$0.33

27

Latch Ass'y

269700109

$24.99

28

Latch Ass'y

269700109

$24.99

29

Latch Spring

269700017

$9.19

30

Latch Ass'y

269700109

$24.99

31

Loctite 243, 10 ml

293800060

$21.49

32

Hex. Screw M6 X 25

207162560

$1.47

33

Latch Stud

204700001

Unavailable

34

Pop Rivet 1/8”

293150015

$0.40

35

Hex. Jam Nut M10

232100600

$2.22

36

Flat Washer 10 mm, Stainless

234002600

$2.22

37

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

38

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

39

Grip Handle (Marine) | Includes 16 - 17.

204070024

Unavailable

40

Snap Cap (Marine)

204070025

Unavailable

41

Pop Rivet 3/16"

293150043

$2.09

42

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

43

Pole Support

291000642

Unavailable

44

Rubber Stopper

293830043

Unavailable

45

Pop Rivet 3/16"

293150005

$0.52

46

Access Cover

295500299

Unavailable

47

Seal Tray 1000Mm Long

219704368

$13.99

48

Luggage Foam

237500013

Unavailable

49

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

50

Hex. Flange Screw K40 X 16

241141660

$1.48

51

Flat Washer 4 mm

234040600

$0.55

52

Flat Washer M3, Stainless

234032600

$0.55

53

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable
