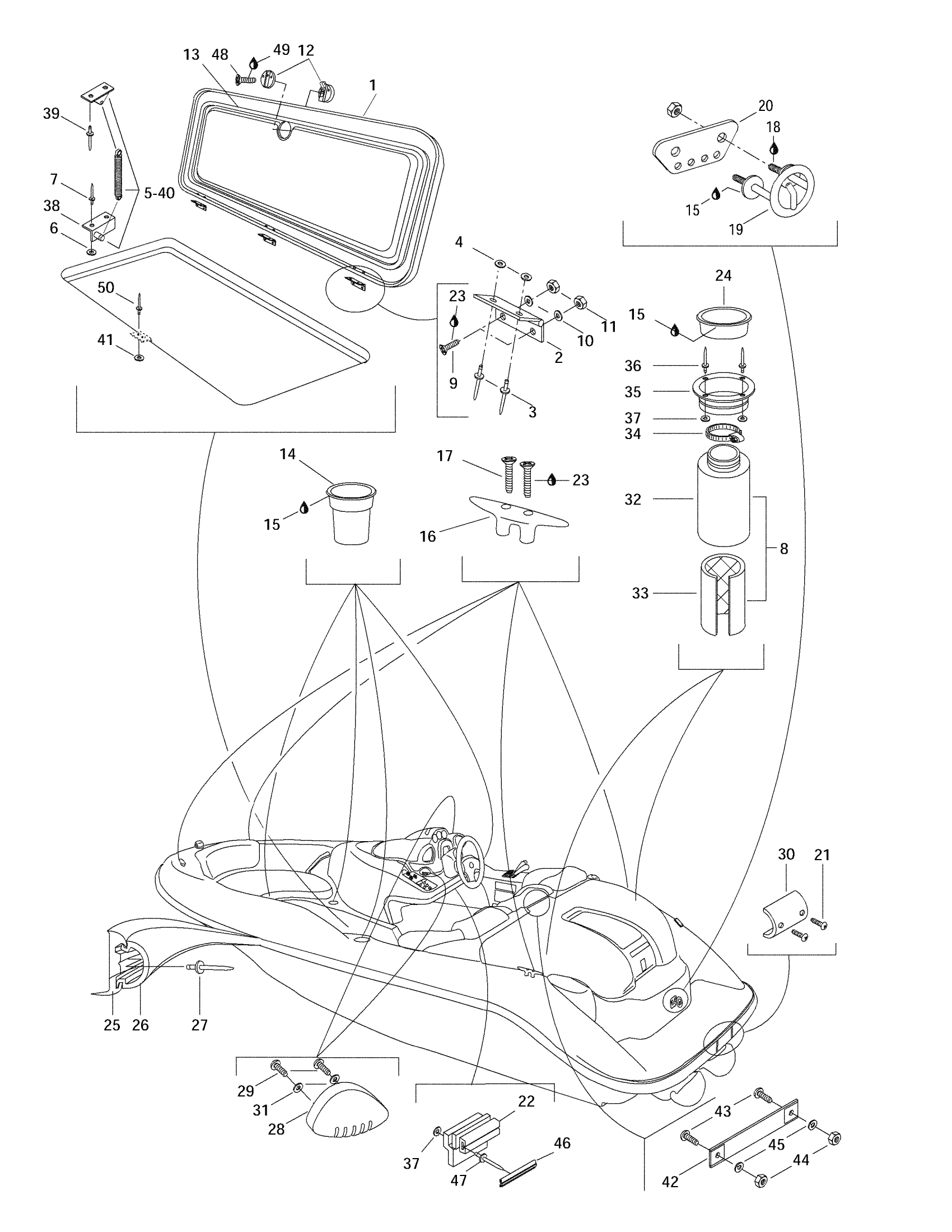

Sea-doo Sportster, 5605/5609, 1997 Central Cover And Accessories Diagram

#

Description
Price

1

Central Cover

291000737

Unavailable

2

HINGE - Call your local BRP dealership

204072601

Unavailable

3

Pop Rivet 3/16"

293150039

$1.49

4

Flat Washer M5, Stainless

234051600

$0.77

5

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

6

Flat Washer 5 mm, Stainless

234052600

$0.77

7

Pop Rivet 3/16"

293150039

$1.49

8

Vent Hose Ass'y R.H

291000708

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

9

SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership

216142060

Unavailable

10

Flat Washer 4 mm

234040600

$0.55

11

Elastic Stop Nut M4

232541600

$1.15

12

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

13

Seal Tray 1000Mm Long

219704368

$13.99

14

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

15

Silicone Sealant 51388, 300 ml

296000309

$36.99

16

Cleat

204070076

Unavailable

17

Allen Screw M6 x 55

215965560

Unavailable

18

Loctite 271, 10 ml

293800005

$26.99

19

Ski Tow

291000610

Unavailable

20

Ski Tow Plate, Black

204070054

Unavailable

21

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

22

Trim-Console

204500009

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Cup Holder

291000914

Unavailable

25

Bumper extrusion (U-Marine)

204050006

Unavailable

26

Bumper Moulding (U-Marine)

204050007

Unavailable

27

Pop Rivet 3/16"

293150013

$1.37

28

Ventilation Grille

204070027

Unavailable

29

Flange Screw K40 X 20

241642060

$1.15

30

Bumper Cover

204050008

Unavailable

31

Flat Washer 4 mm, Stainless

234042600

$1.15

32

Tube Vent Rear

291000376

Unavailable

33

Noise Deflector

291001133

Unavailable

34

Tridon Clamp

293650054

$9.49

35

Hose Support

291000641

Unavailable

36

Pop Rivet 3/16"

293150014

$1.09

37

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

38

Spring Bracket

291000719

Unavailable

39

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

40

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

41

Flat Washer M5, Stainless

234051600

$0.77

42

Passenger Strap

293000060

Unavailable

43

Phillips Screw M6 X 25

208562560

$2.32

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

Flat Washer M6, Stainless

234062600

$0.77

46

Trim Holder

204500003

Unavailable

47

Pop Rivet 3/16"

293150013

$1.37

48

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

49

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

50

Pop Rivet 3/16"

293150039

$1.49
