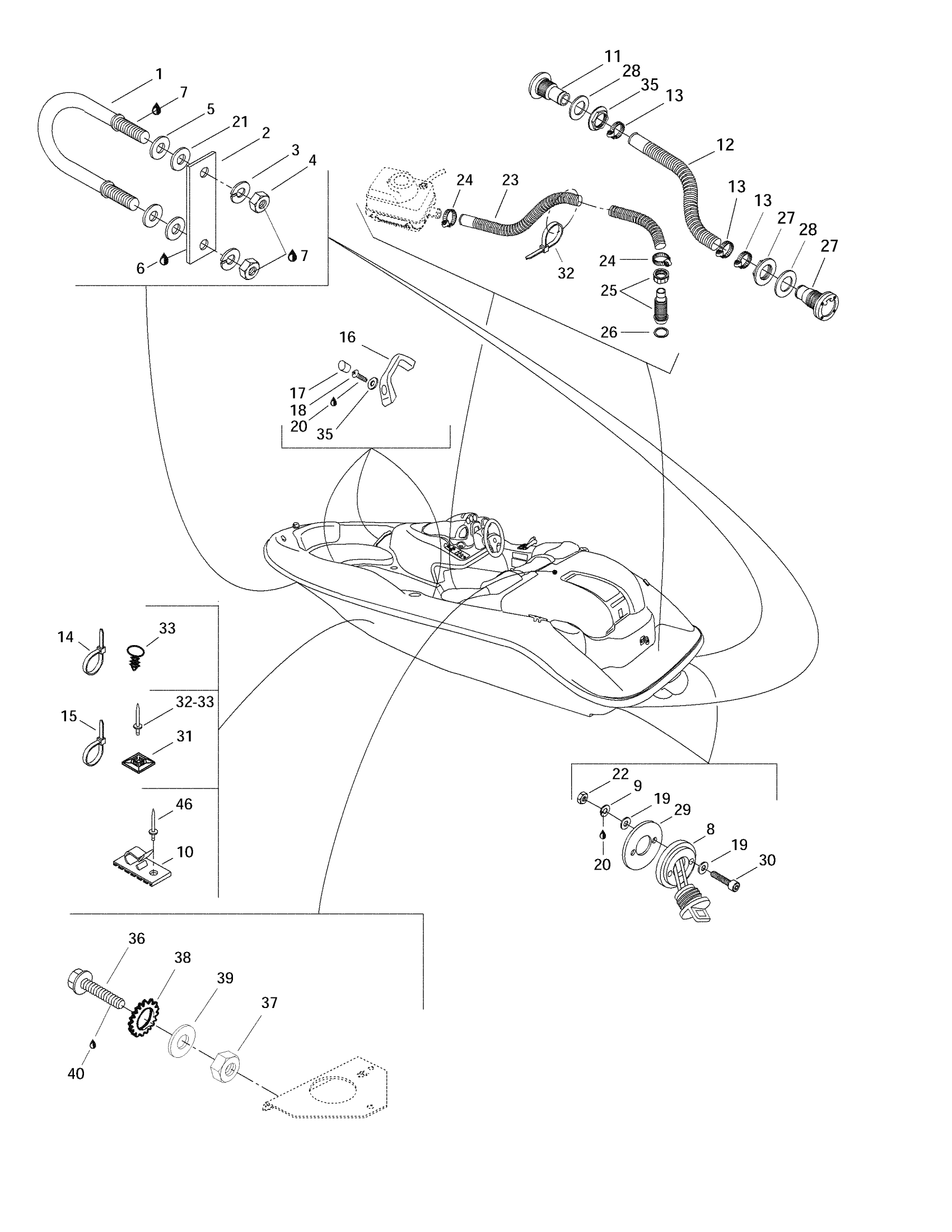

Sea-doo Sportster, 5605/5609, 1997 Body And Accessories Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

3

Lock Washer 8 mm, Stainless

234181601

$0.55

4

Hex. Nut M8

232081600

$1.47

5

Flat Washer M8.5 x 18

293050001

$3.07

6

Silicone Sealant 51388, 300 ml

296000309

$36.99

7

Loctite 271, 10 ml

293800005

$26.99

8

Drain Plug

292000187

$14.49

9

Lock Washer 4 mm

234141601

$1.15

10

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

11

FITTING - Call your local BRP dealership

293710060

Unavailable

12

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

13

Tridon Gear Clamp

293650045

$5.69

14

Tie Wrap 142 mm

293750002

$1.25

15

Tie Wrap 368 mm

293750008

$1.04

16

Grip Handle (Marine) | Includes 16 - 17.

204070024

Unavailable

17

Snap Cap (Marine)

204070025

Unavailable

18

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

19

Flat Washer 4 mm

234040600

$0.55

20

Loctite 243, 10 ml

293800060

$21.49

21

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

22

Nut M4

211100025

Unavailable

23

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

24

Tridon Clamp

293650016

$10.99

25

Fitting

293710162

$13.49

26

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

27

Scupper Valve

204060027

Unavailable

28

GASKET - Call your local BRP dealership

292800106

Unavailable

29

GASKET - Call your local BRP dealership

293250030

Unavailable

30

Socket Head Screw M4 X 25

205042560

$2.22

31

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

32

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 94 mm | 4X4

293750001

$1.03

33

Mount Dart

293730040

$1.04

34

Avdel Rivet 3/16"

293150037

$0.56

35

Stainless Flat Washer M6

234061600

$0.33

36

Elevator Bolt

204000130

Unavailable

37

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

38

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

39

Stainless, Flat Washer 8 mm

234081600

$0.55

40

Loctite 243, 10 ml

293800060

$21.49
