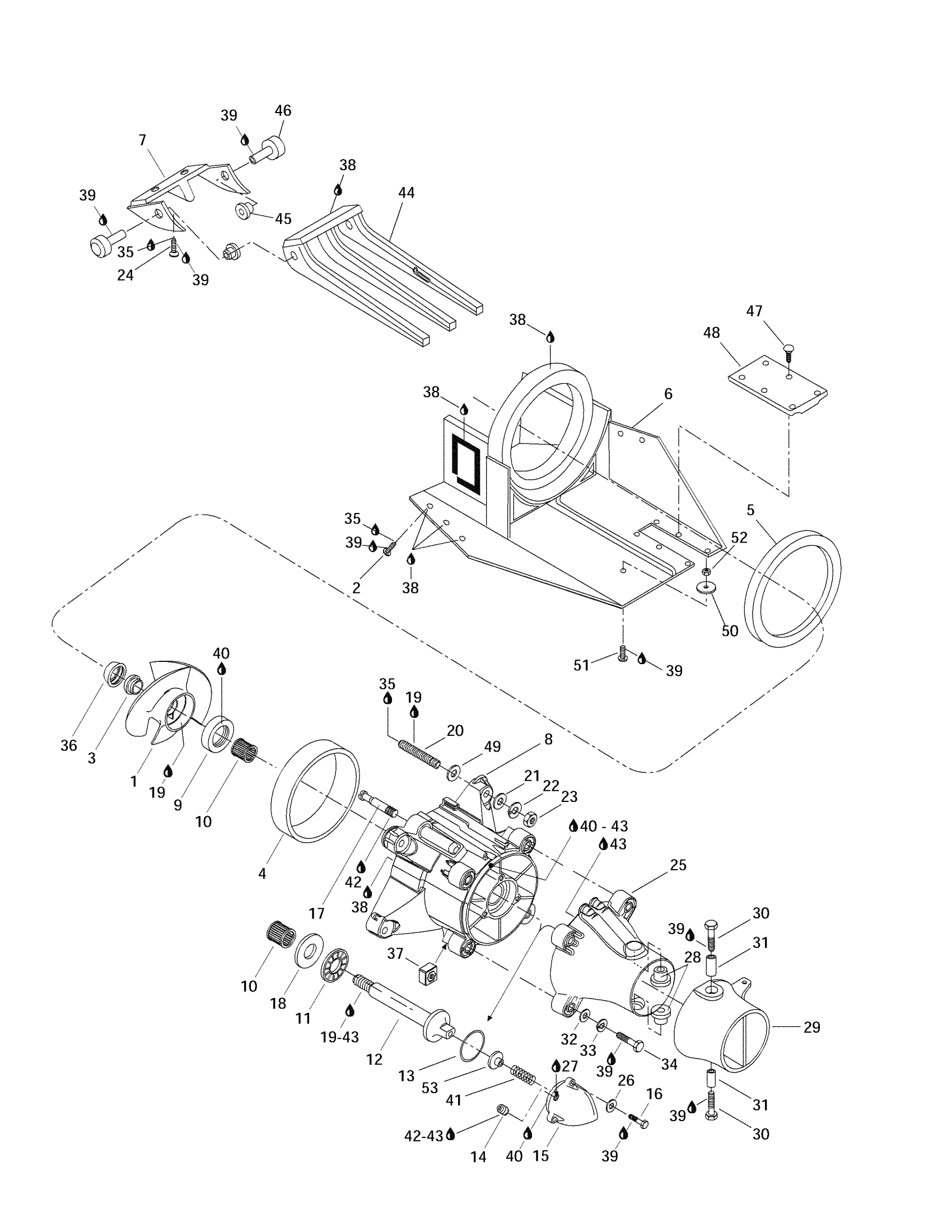

Sea-doo Sportster, 5605/5609, 1997 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller

204160004

Unavailable

2

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

3

Impeller Boot

271000516

$9.59

4

Wear Ring

271000290

$58.49

5

SEAL NEOPRENE - Call your local BRP dealership

293200024

Unavailable

6

Shoe

204120002

Unavailable

7

GRATE SUPPORT - Call your local BRP dealership

204120014

Unavailable

8

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

295500429

Unavailable

9

Oil Seal

267000094

$22.49

10

Needle Bearing

293350017

$27.99

11

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

12

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

13

O-Ring

293300011

$8.64

14

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

15

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

16

Hex. Screw M5 X 20

207152060

$1.47

17

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

18

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

19

Loctite 271, 10 ml

293800005

$26.99

20

STUD-M10 - Call your local BRP dealership

211300015

Unavailable

21

Flat Washer 10 mm, Stainless

234001600

$1.15

22

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

23

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

24

Phillips Screw M6 X 25

208562560

$2.32

25

Venturi

271000624

Unavailable

26

Flat Washer M5, Stainless

234051600

$0.77

27

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

28

Venturi Bushing

293900001

$7.62

29

Steering Nozzle (Black)

204120066

Unavailable

30

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

31

Sleeve

271001816

$14.99

32

Stainless, Flat Washer 8 mm

234081600

$0.55

33

Lock Washer 8 mm, Stainless

234181601

$0.55

34

Hex. Screw M8 x 75

215687560

Unavailable

35

Silicone Sealant 51388, 300 ml

296000309

$36.99

36

Impeller Ring

271000517

$9.59

37

Square Nut M8

211100033

$17.99

38

Instant Gasket

219701421

$51.99

39

Loctite 243, 10 ml

293800060

$21.49

40

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

41

SPRING - Call your local BRP dealership

271000704

Unavailable

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

43

Was 293800041 Loctite Primer 7649

219704458

$39.99

44

Mobil Grate

204120015

Unavailable

45

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

46

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

47

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

48

Ride Shoe Cap

291000446

Unavailable

49

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

50

Anode-Zinc

271000477

Unavailable

51

Screw 1/4-20 x 5/8

211000084

Unavailable

52

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

53

Pusher

271000703

Unavailable
