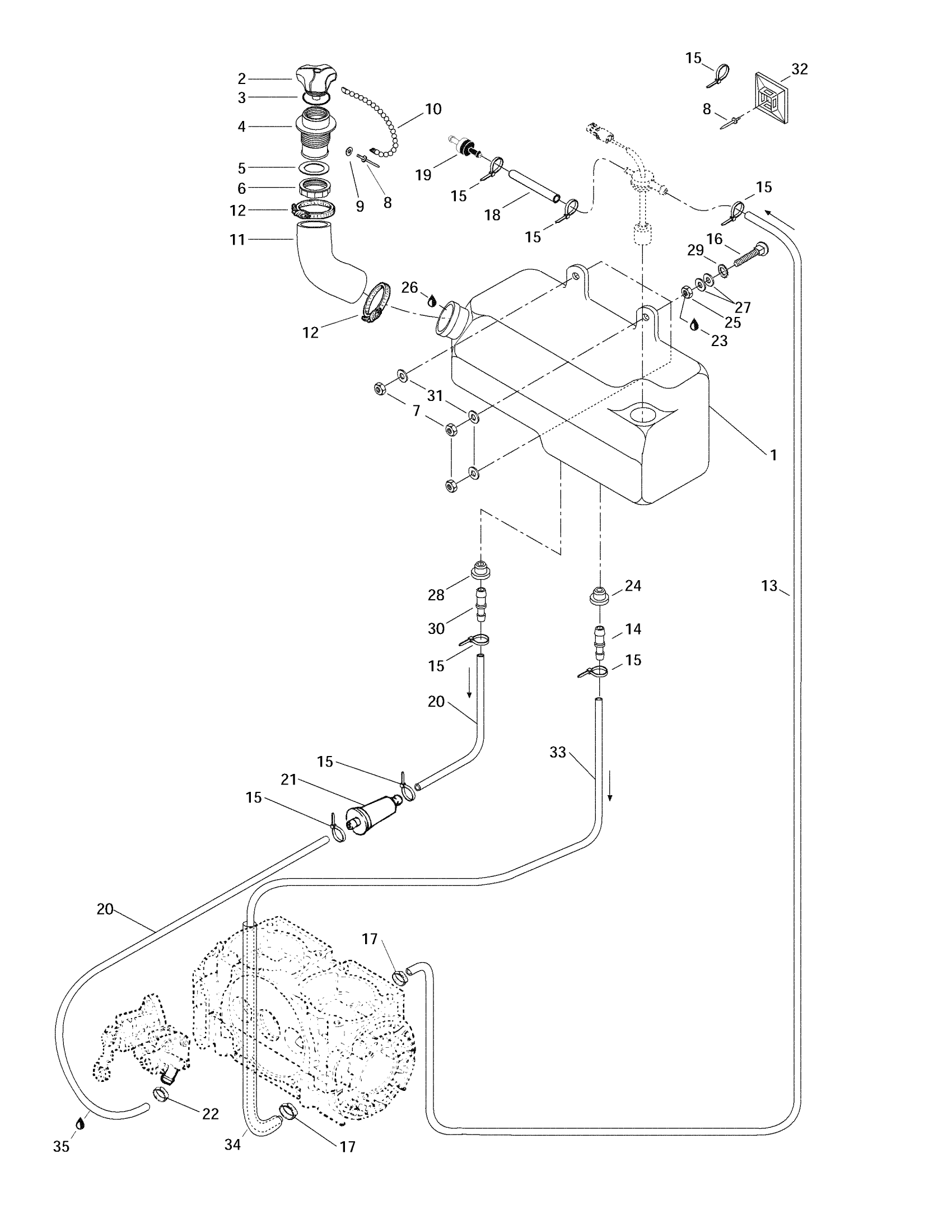

Sea-doo Sportster, 5605/5609, 1997 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000145

Unavailable

2

Oil Cap

275000186

Unavailable

3

O-RING - Call your local BRP dealership

293250025

Unavailable

4

Filler Neck

275000212

Unavailable

5

Gasket

293250016

Unavailable

6

Nut-Neck Oil Filler

211100013

Unavailable

7

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

8

Pop RIvet 1/8 X ,375

293150285

$0.33

9

Flat Washer M3, Stainless

234032600

$0.55

10

Oil Cap Chain

275500015

Unavailable

11

Formed Hose

275000128

Unavailable

12

Tridon Clamp

293650035

$7.29

13

Was 275500008 Hose 12 mm

219704356

$20.49

14

STRAIGHT FITTING - Call your local BRP dealership

293710045

Unavailable

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

Elevator Bolt

204000130

Unavailable

17

Tridon Gear Clamp

293650170

$1.99

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

19

Check Valve This part replaces 275500087.

275501246

$10.99

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$3.09

23

Loctite 243, 10 ml

293800060

$21.49

24

Grommet | Europe

707800347

$10.49

25

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

26

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

27

Stainless, Flat Washer 8 mm

234081600

$0.55

28

Grommet

709200285

$9.69

29

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

30

STRAIGHT FITTING - Call your local BRP dealership

293710046

Unavailable

31

Flat Washer M6, Stainless

234062600

$0.77

32

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

33

Was 275500008 Hose 12 mm

219704356

$20.49

34

Boot-isolation

291000835

Unavailable
