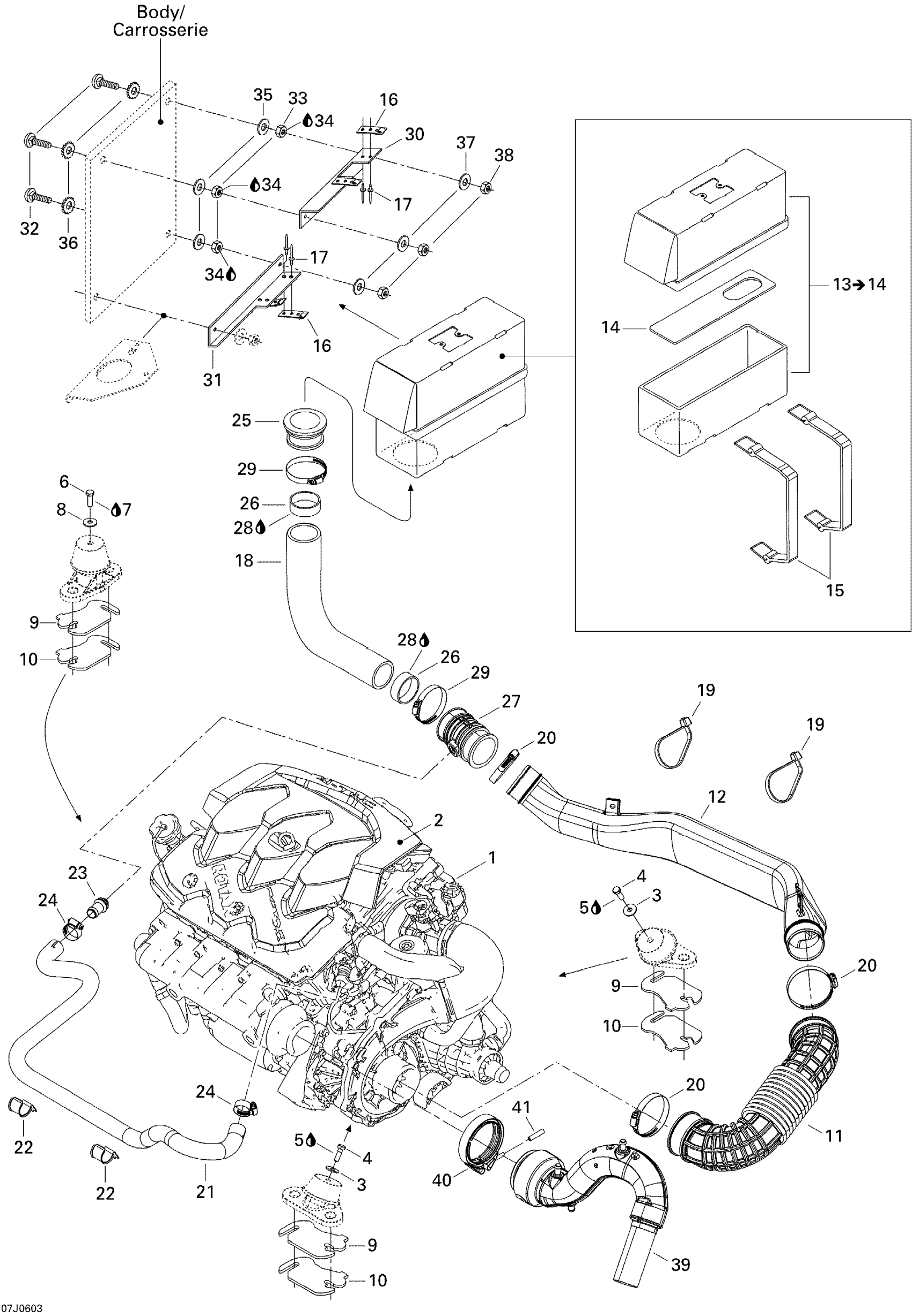

Sea-doo Sportster 4-TEC SCIC, Edition 2, 2006 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

Flat Washer 8 mm, Stainless

234082600

$2.43

4

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

Shim 1.3 mm

270000762

$12.99

10

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

11

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

12

Intake Hose

273000185

Unavailable

13

Air Silencer Ass'y | Includes 13 to 14

204250323

Unavailable

14

Air Silencer Divider

204250324

Unavailable

15

Retainer Strap

293850097

$11.64

16

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

17

Pop Rivet 3/16"

204000081

$1.49

18

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

19

Tie Wrap 368 mm

293750008

$1.04

20

Tridon Clamp

293650179

$11.49

21

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

22

Retainer

275500664

$14.75

23

Breather Valve

273000234

$14.49

24

Tridon Gear Clamp

293650051

$4.19

25

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

26

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

27

Adaptor Hose, Engine

204250276

Unavailable

28

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

29

Tridon Clamp

293650064

$8.29

30

Air Silencer Bracket, Upper

204250285

Unavailable

31

Air Silencer Bracket, Lower

204250284

Unavailable

32

Elevator Bolt

204000130

Unavailable

33

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

34

Loctite 271, 10 ml

293800005

$26.99

35

Stainless, Flat Washer 8 mm

234081600

$0.55

36

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

37

Flat Washer M6, Stainless

234062600

$0.77

38

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

39

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

40

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

41

Polyurethane Hose 10000Mm Long

219704410

$56.99
