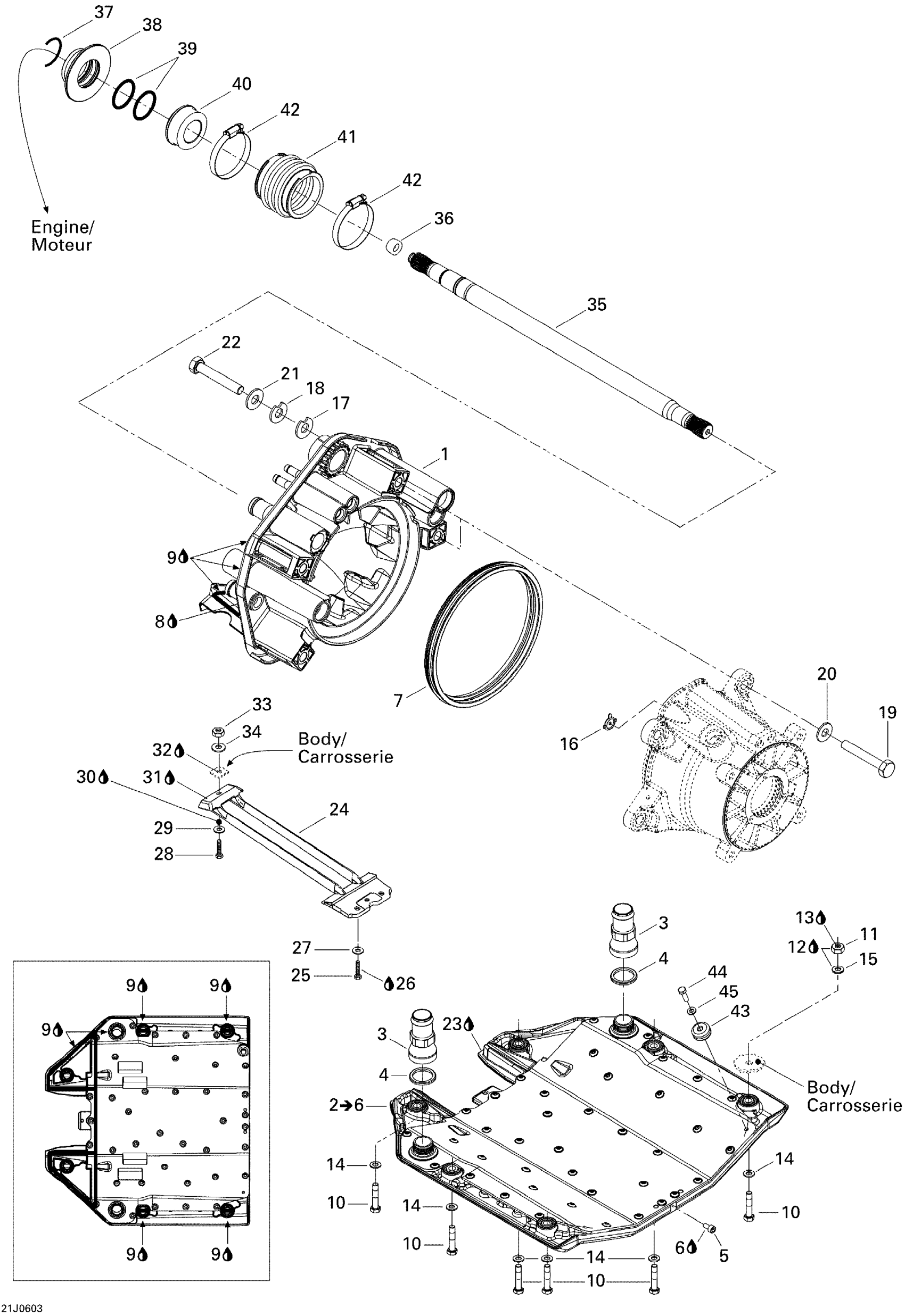

Sea-doo Sportster 4-TEC SCIC, Edition 1, 2006 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120315

Unavailable

2

Riding Plate | Includes 2 to 6

204120312

Unavailable

3

Straight Plastic Fitting

293710111

$8.47

4

O-Ring

293300121

$8.32

5

Socket Drain Plug M6 X 12

250500005

$16.49

6

Was 293800013 Loctite 56765

219704454

$65.99

7

Neoprene Seal

293200087

$12.63

8

Glue Tube, Loctite 454, 20 G

413708300

$60.99

9

Instant Gasket

219701421

$51.99

10

Hex. Screw M8 X 40

207084060

$2.22

11

Hex. Elastic Nut M8

232581600

$1.48

12

Silicone Sealant 51388, 300 ml

296000309

$36.99

13

Loctite 243, 10 ml

293800060

$21.49

14

Stainless, Flat Washer 8 mm

234081600

$0.55

15

Flat Washer 8 mm, Stainless

234082600

$2.43

16

Reducer This part replaces 291001887.

291004649

$17.49

17

Shim 0.3 mm

272000053

$11.49

18

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

19

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

20

Flat Washer

211200051

$1.68

21

Flat Washer 10 mm, Stainless

234002600

$2.22

22

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

23

Instant Gasket

219701421

$51.99

24

Pump Grate

204120294

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.59

26

Loctite 271, 10 ml

293800005

$26.99

27

Stainless Flat Washer M6

234061600

$0.33

28

Hex. Screw M8 X 40

207184060

$2.22

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

Silicone Sealant 51388, 300 ml

296000309

$36.99

31

Instant Gasket

219701421

$51.99

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

Hex. Elastic Nut M8

232581600

$1.48

34

Stainless, Flat Washer 8 mm

234081600

$0.55

35

DRIVE SHAFT - Call your local BRP dealership

204120279

Unavailable

36

Drive Shaft Plug

272000173

$8.68

37

C-Clip

271001577

$3.27

38

Carbon Ring Kit | Includes 280b to 280b4

295501204

$82.49

39

O-Ring

293300107

$1.01

40

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

41

Bellow This part replaces 271001422.

271001933

$23.49

42

Norma Clamp

293650079

$11.60

43

Anode Zinc

271001813

$18.99

44

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

45

Stainless Flat Washer M6

234061600

$0.33
