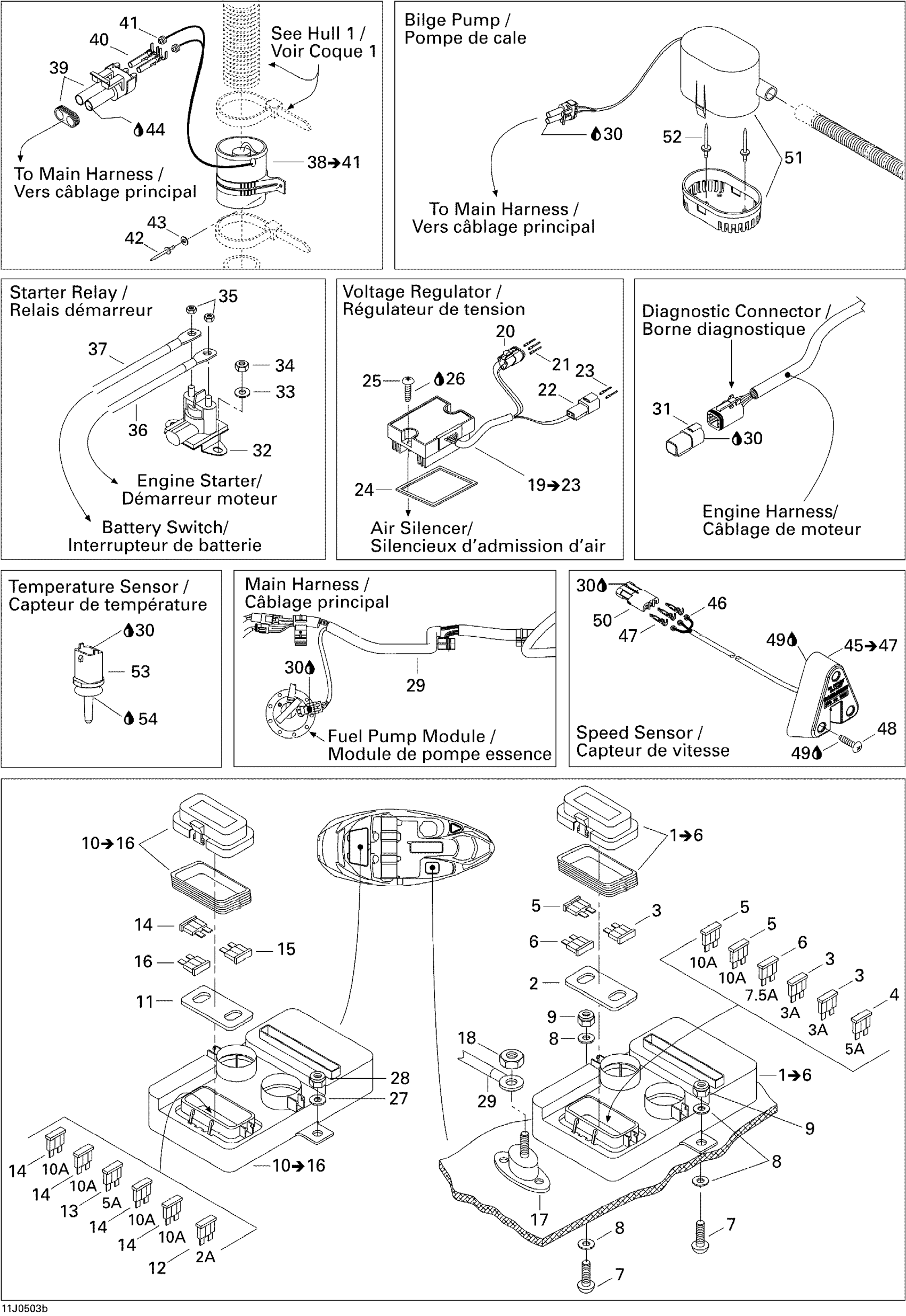

Sea-doo Sportster 4-TEC SCIC, 2005 Electrical Accessories 2 Diagram

#

Description
Price

1

SIMPLE ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6

204470771

Unavailable

2

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

5

Fuse, 10 Amperes | North America

278001197

$2.21

6

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

7

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

8

Flat Washer M6, Stainless

234062600

$0.77

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

11

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

12

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

13

Fuse, 5 Amperes | CE

278000344

$3.28

14

Fuse, 10 Amperes | North America

278001197

$2.21

15

Fuse, 20 Amperes

403003900

Unavailable

16

Fuse, 30 Amperes

410917200

$3.28

17

Ground Post

204470715

Unavailable

18

HEX. ELASTIC NUT 3/8 - Call your local BRP dealership

204100032

Unavailable

19

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

$174.99

20

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

21

Female Terminal

278000632

$2.09

22

Mâle Terminal Housing, 2 Circuits

278001674

$30.49

23

Male Terminal

515175568

$9.12

24

SEAL - Call your local BRP dealership

293250123

Unavailable

25

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

26

Loctite 271, 10 ml

293800005

$26.99

27

Flat Washer M6, Stainless

234062600

$0.77

28

Hex. Elastic Stop Nut M6

232561600

$1.15

29

Main Harness

204470772

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

Diagnostic Connector

278002704

$19.49

32

Starter Relay

278003012

$42.49

33

Flat Washer M6, Stainless

234062600

$0.77

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

Hex. Elastic Stop Nut M6

232561600

$1.15

36

RED CABLE - Call your local BRP dealership

204470798

Unavailable

37

RED CABLE - Call your local BRP dealership

204470799

Unavailable

38

Fan Ass'y | Includes 44 to 47

204470108

$144.99

39

Male Connector, 2 Circuits

278000220

$15.49

40

Female Terminal

278000223

$3.19

41

Wire Seal

278000218

$4.39

42

Pop Rivet 3/16"

293150088

$0.99

43

Flat Washer 5 mm, Stainless

234052600

$0.77

44

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

45

Speed Sensor

278001993

$169.99

46

Wire Seal

710000048

$7.69

47

Male Terminal | XT Models

278000222

$3.19

48

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

49

Silicone Sealant 51388, 300 ml

296000309

$36.99

50

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

51

Bilge Pump

204471431

Unavailable

52

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

53

Temperature Sensor

278002895

$39.99

54

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99
