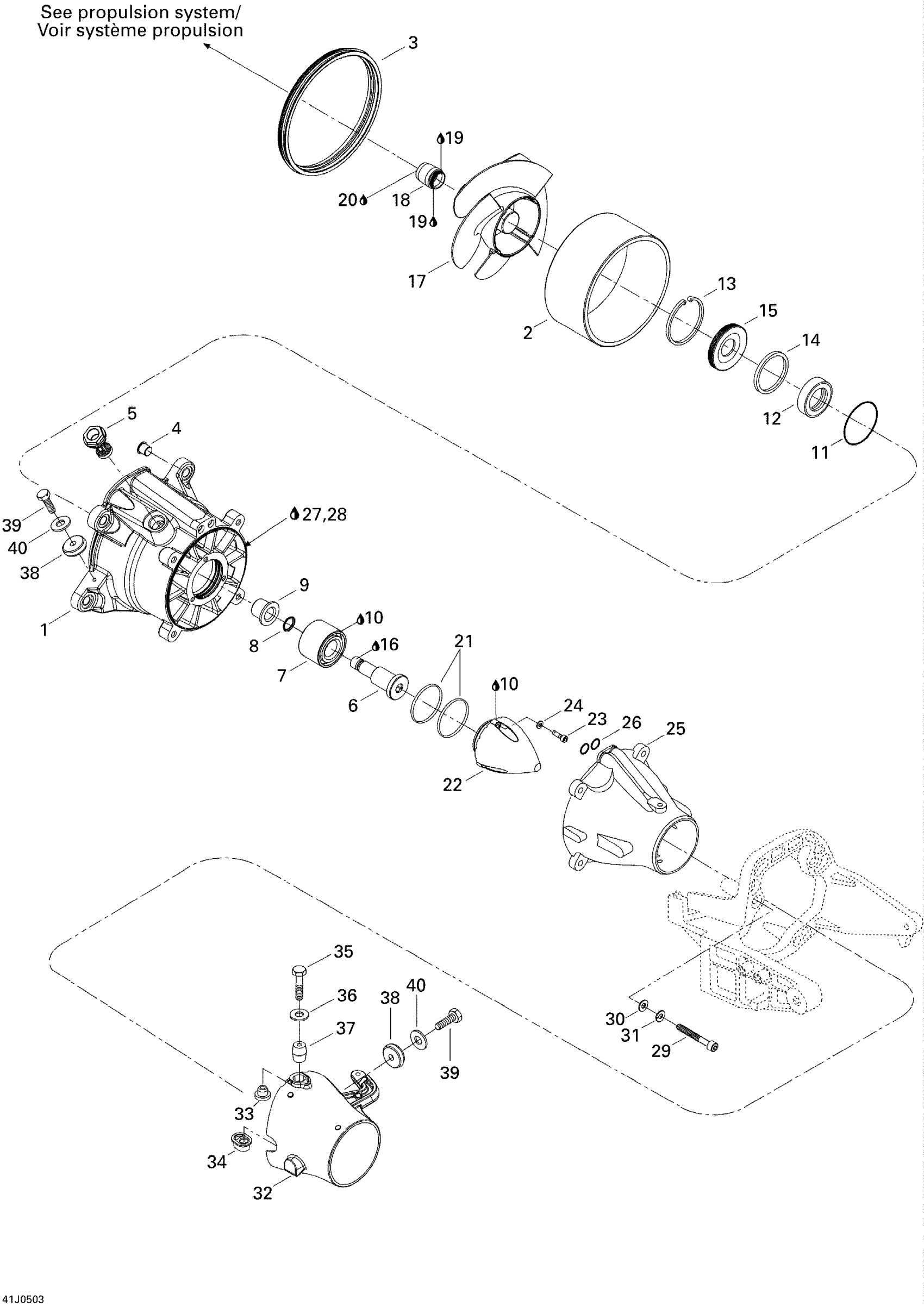

Sea-doo Sportster 4-TEC SCIC, 2005 Pump Diagram

#

Description
Price

1

Impeller Housing

267000083

Unavailable

2

Wear Ring

267000372

$84.99

3

Neoprene Seal

293200087

$12.63

4

Bushing

267000093

$9.59

5

Plug | Includes 370z to 370z1

267000282

$19.49

6

Impeller Shaft

267000054

$116.49

7

Angled Bearing This part replaces 267000030.

267000900

$80.99

8

O-Ring

505070315

$2.85

9

Shaft Sleeve

267000318

$134.99

10

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

11

O-Ring

293300090

$7.20

12

Seal

271002071

$33.99

13

Circlip

293370038

$8.79

14

Spacer

271001393

$8.59

15

Oil Seal

293200089

$19.99

16

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

17

Impeller Ass'y This part replaces 267000250.

267000699

$391.99

18

Guard

271002228

$12.99

19

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

20

Synthetic Grease, 400 G

293550010

Unavailable

21

O-Ring

293300086

$3.59

22

Impeller Cover

267000262

$21.99

23

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

24

Stainless Flat Washer M6

234061600

$0.33

25

Black, Venturi - Call your local BRP dealership

204160302

Unavailable

26

O-Ring

293300013

$8.18

27

Was 293800041 Loctite Primer 7649

219704458

$39.99

28

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

29

Socket Screw M8 X 110, Scotch Grip

231181060

$9.89

30

Flat Washer M8.5 x 18

293050001

$3.07

31

Lock Washer 8 mm, Stainless

234181601

$0.55

32

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.

462125

Unavailable

33

Venturi Bushing

293900001

$7.62

34

Plastic Bushing

293900010

$9.59

35

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

36

Flat Washer M8.5 x 18

293050001

$3.07

37

Sleeve

271001816

$14.99

38

Anode Zinc

271001813

$18.99

39

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

40

Stainless Flat Washer M6

234061600

$0.33
