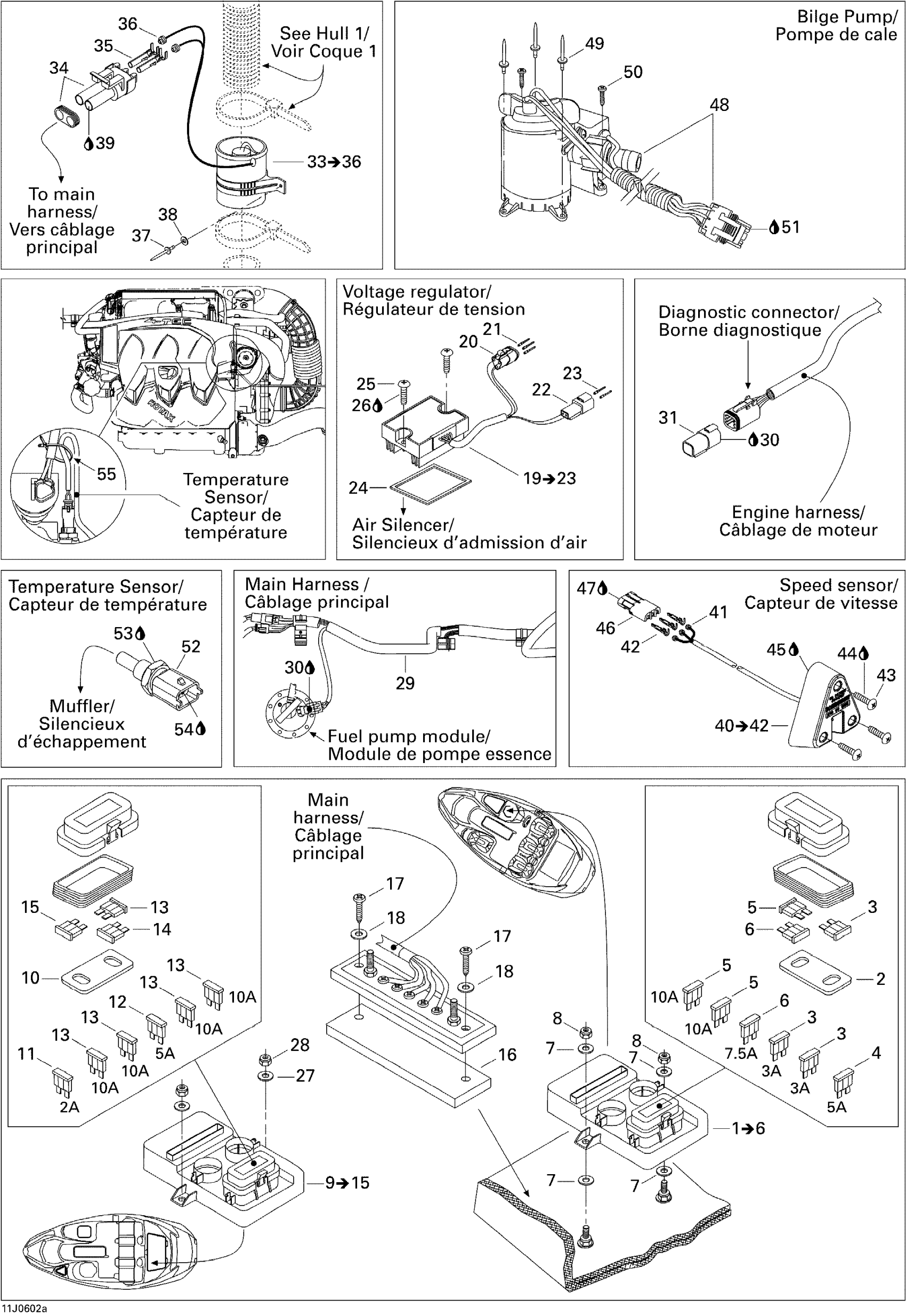

Sea-doo Sportster 4-TEC, Edition 1, 2006 10- Electrical Accessories 1 Diagram

#

Description
Price

1

SIMPLE ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6

204470771

Unavailable

2

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

3

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

4

Fuse, 5 Amperes | CE

278000344

$3.28

5

Fuse, 10 Amperes | North America

278001197

$2.21

6

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.77

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

10

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

11

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

12

Fuse, 5 Amperes | CE

278000344

$3.28

13

Fuse, 10 Amperes | North America

278001197

$2.21

14

Fuse, 20 Amperes

403003900

Unavailable

15

Fuse, 30 Amperes

410917200

$3.28

16

Aluminum Plate

204471076

Unavailable

17

Phillips Screw M4 X 10

208641060

$1.01

18

Flat Washer 4 mm, Stainless

234041600

$1.15

19

REGULATOR - Call your local BRP dealership | Includes 11 to 15

278001969

$174.99

20

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

21

Female Terminal

278000632

$2.09

22

Male Housing, 2 Circuits

409206900

$9.59

23

Female Terminal

515175567

$7.69

24

SEAL - Call your local BRP dealership

293250123

Unavailable

25

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

26

Loctite 271, 10 ml

293800005

$26.99

27

Flat Washer M6, Stainless

234062600

$0.77

28

Hex. Elastic Stop Nut M6

232561600

$1.15

29

Main Harness

204471063

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

Diagnostic Connector

278002704

$19.49

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Fan Ass'y | Includes 44 to 47

204470108

$144.99

34

Male Connector, 2 Circuits

278000220

$15.49

35

Female Terminal

278000223

$3.19

36

Wire Seal

278000218

$4.39

37

Pop Rivet 3/16"

293150088

$0.99

38

Flat Washer 5 mm, Stainless

234052600

$0.77

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

40

Speed Sensor

278001993

$169.99

41

Wire Seal

710000048

$7.69

42

Male Terminal | XT Models

278000222

$3.19

43

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

44

Silicone Sealant 51388, 300 ml

296000309

$36.99

45

Silicone Sealant 51388, 300 ml

296000309

$36.99

46

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

47

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

48

Bilge Pump

204471072

Unavailable

49

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

50

TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

250000090

Unavailable

51

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

52

Temperature Sensor

278002895

$39.99

53

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

54

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

55

Tie Wrap 142 mm

293750002

$1.25
