- Partiron
- OEM Parts
- Sea-doo
- Boats
- 2006
- Sportster
- Sportster 4-TEC, Edition 1, 2006
09- Storage Compartment, Front

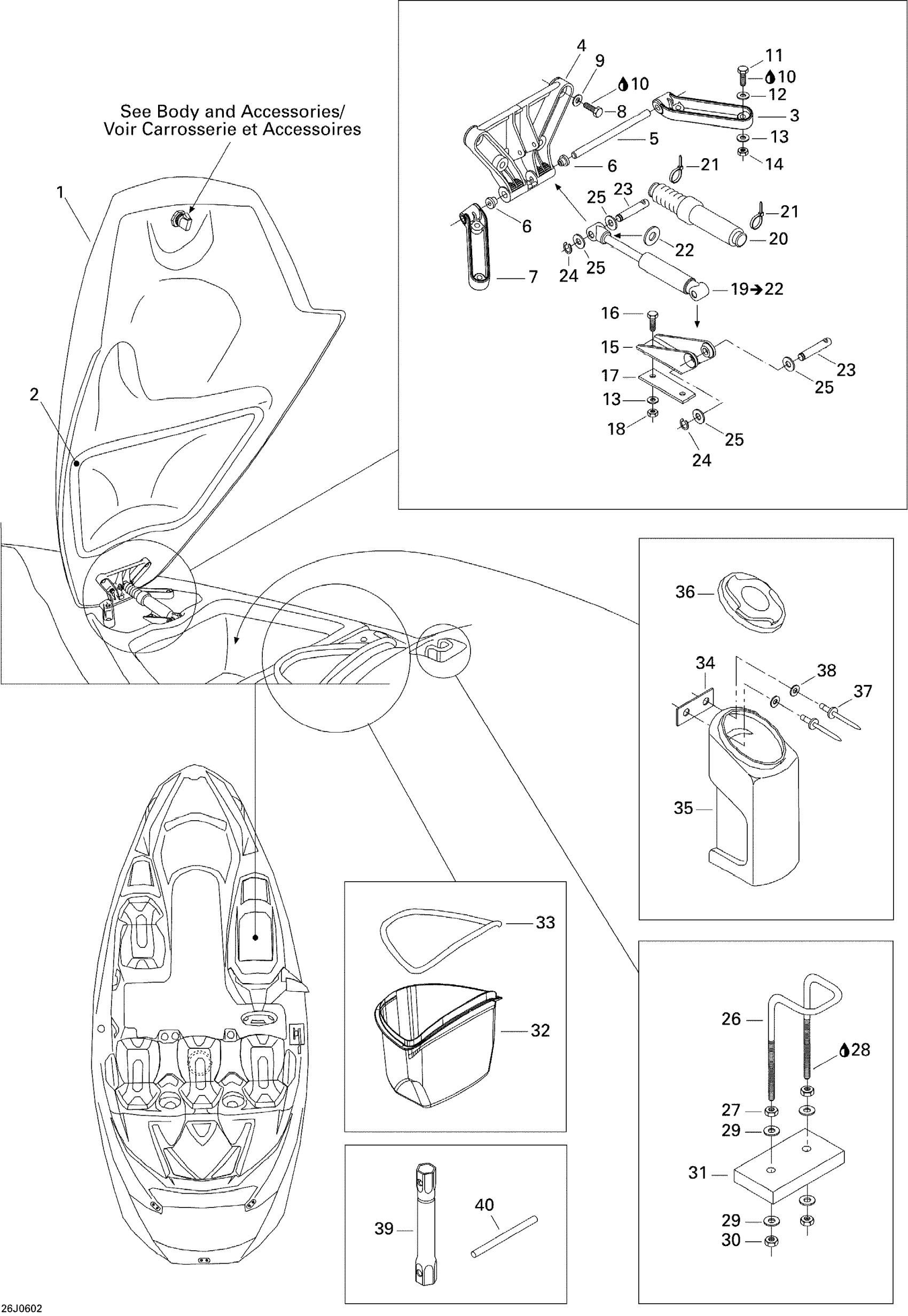

Sea-doo Sportster 4-TEC, Edition 1, 2006 09- Storage Compartment, Front Diagram
#
1
Storage Cover Ass'y, Yellow | Yellow Model
204620313
Unavailable
2
Seal Tray 1000Mm Long
219704368
$13.99
3
RH HINGE - Call your local BRP dealership
269700022111
Unavailable
4
COVER HINGE - Call your local BRP dealership
269700038
Unavailable
5
AXLE - Call your local BRP dealership
269700024
Unavailable
6
CUSHION - Call your local BRP dealership
293350016
Unavailable
7
LH HINGE - Call your local BRP dealership
269700023111
Unavailable
8
Hex. Screw M6 X 25
207162560
$1.47
9
Stainless Flat Washer M6
234061600
$0.33
10
Loctite 243, 10 ml
293800060
$21.49
11
Hex. Screw M6 X 35
207063560
$2.22
12
Stainless Flat Washer M6
234061600
$0.33
13
Flat Washer M6, Stainless
234062600
$0.77
14
Hex. Elastic Stop Nut M6
232561600
$1.15
15
SHOCK SUPPORT - Call your local BRP dealership
291000855
Unavailable
16
Hex. Screw M6 X 25
207162560
$1.47
17
REINFORCEMENT PLATE - Call your local BRP dealership
291000079
Unavailable
18
Hex. Elastic Stop Nut M6
232561600
$1.15
19
Shock-Gas This part replaces 269501864.
269501993
$56.99
20
BELLOW - Call your local BRP dealership
291000919
Unavailable
21
Tie Wrap 94 mm | 4X4
293750001
$1.03
22
Washer
211200034
Unavailable
23
SHORT PIN - Call your local BRP dealership
211400006
Unavailable
24
CIRCLIP - Call your local BRP dealership
293370008
Unavailable
25
Stainless, Flat Washer 8 mm
234081600
$0.55
26
Hook
204620151
Unavailable
27
Hex. Nut M6
232061600
$1.15
28
Loctite 243, 10 ml
293800060
$21.49
29
Flat Washer M6, Stainless
234062600
$0.77
30
Hex. Elastic Stop Nut M6
232561600
$1.15
31
REINFORCEMENT PLATE - Call your local BRP dealership
204620270
Unavailable
32
GLOVE BOX - Call your local BRP dealership
269501121
Unavailable
33
NEOPRENE SEAL 1M/3.28FT - Call your local BRP dealership
204130049
Unavailable
34
GASKET - Call your local BRP dealership
293250037
Unavailable
35
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
36
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
37
Pop Rivet 3/16"
293150008
$0.50
38
Flat Washer 5 mm, Stainless
234052600
$0.77
39
Socket Wrench
529035731
Unavailable
40
Not Available As Spare Part - Friction Washer
Unavailable
