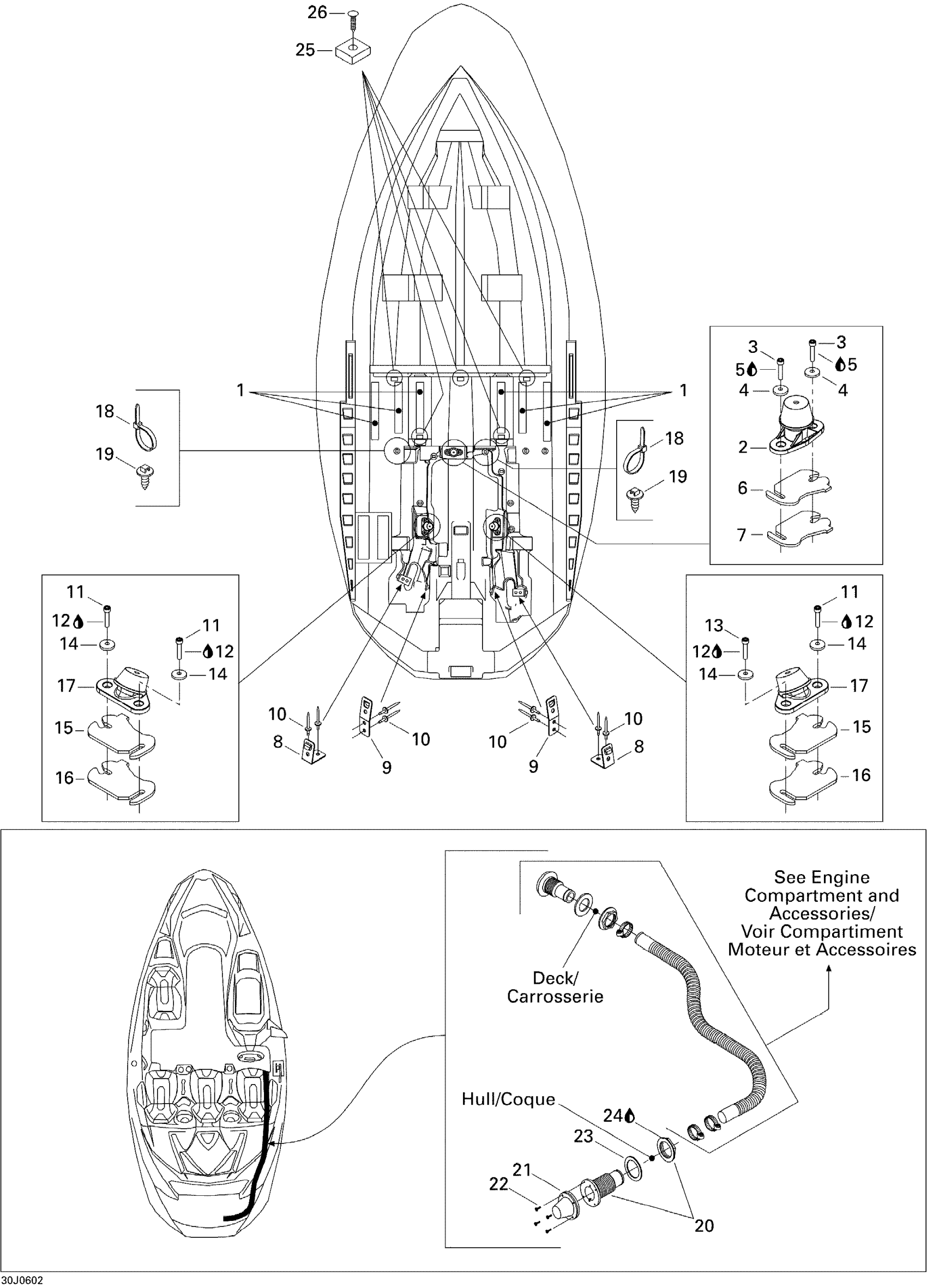

Sea-doo Sportster 4-TEC, Edition 1, 2006 09- Lower Hull Diagram
#
Description
Price
1
NEOPRENE, METER - Call your local BRP dealership
202000024
Unavailable
2
RUBBER MOUNT - Call your local BRP dealership
270000671
Unavailable
3
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
4
Cone Washer
250200018
$5.61
5
Loctite 243, 10 ml
293800060
$21.49
6
SHIM 0.3 MM - Call your local BRP dealership
270000445
Unavailable
7
Shim 1.3 mm
270000762
$12.99
8
Strap Clip 90°
204060017
Unavailable
9
Strap Clip
293850030
$11.12
10
Pop Rivet 3/16"
293150088
$0.99
11
SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership
205084060
Unavailable
12
Loctite 243, 10 ml
293800060
$21.49
13
Socket Head Screw M8 X 45
205084560
$3.59
14
Cone Washer
250200018
$5.61
15
SHIM 0.3 MM - Call your local BRP dealership
270000445
Unavailable
16
Shim 1.3 mm
270000762
$12.99
17
Engine Support Ass'y
270001081
$109.99
18
Tie-Rap 180 mm
414115200
$0.11
19
Mount Dart
293730040
$1.04
20
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
21
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
22
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
23
GASKET - Call your local BRP dealership
292800106
Unavailable
24
Silicone Sealant 51388, 300 ml
296000309
$36.99
25
RUBBER PAD - Call your local BRP dealership
204060684
Unavailable
26
Black, Dart
293730006
$0.99
