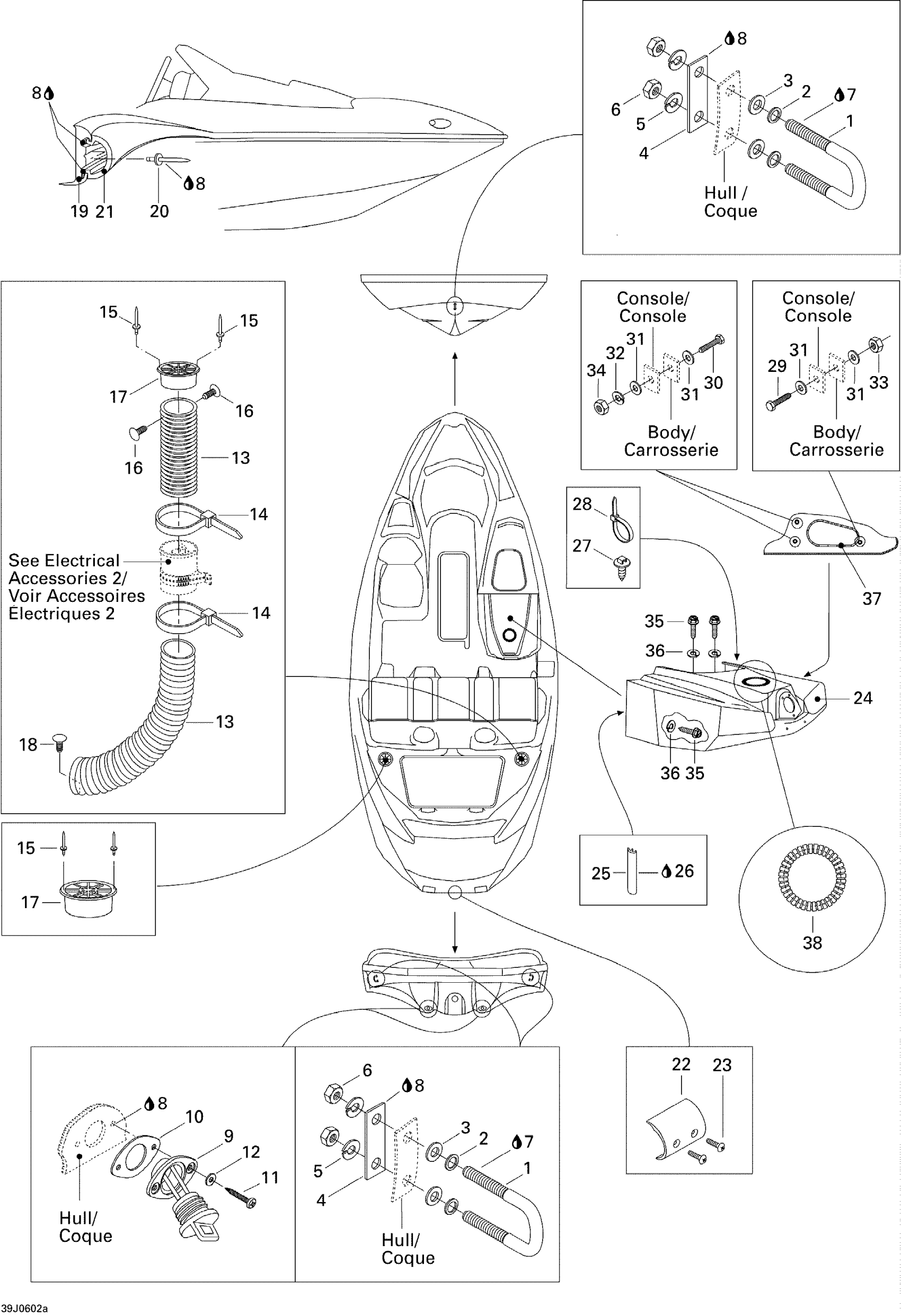

Sea-doo Sportster 4-TEC, Edition 1, 2006 09- Hull 1 Diagram
#
Description
Price
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
$3.07
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Hex. Nut M8
232081600
$1.47
7
Loctite 271, 10 ml
293800005
$26.99
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Drain Plug
292000187
$14.49
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
$1.15
13
Was 204050122 Vent Hose 4"
219704358
$25.99
14
Tie Wrap 368 mm
293750008
$1.04
15
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
16
Black, Dart
293730006
$0.99
17
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
18
Black, Dart
293730006
$0.99
19
Black, Bumper
204050136
Unavailable
20
Pop Rivet 3/16"
293150013
$1.37
21
Black, Trim - Call your local BRP dealership
204050137
Unavailable
22
BUMPER COVER, BLACK - Call your local BRP dealership
204050031
Unavailable
23
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
24
Console Ass'y
204050633
Unavailable
25
TRIM, WHITE - Call your local BRP dealership
204050042
Unavailable
26
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
27
Mount Dart
293730040
$1.04
28
Tie-Rap 180 mm
414115200
$0.11
29
Hex. Screw M6 X 35
207163560
$1.49
30
Hex. Screw M6 X 45
207164560
$1.89
31
Flat Washer M6, Stainless
234062600
$0.77
32
Lock Washer Helical M6
234161601
$1.15
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
Hex. Nut M6
232061600
$1.15
35
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
36
Lock Washer 1/4”
211200025
$1.29
37
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
38
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
