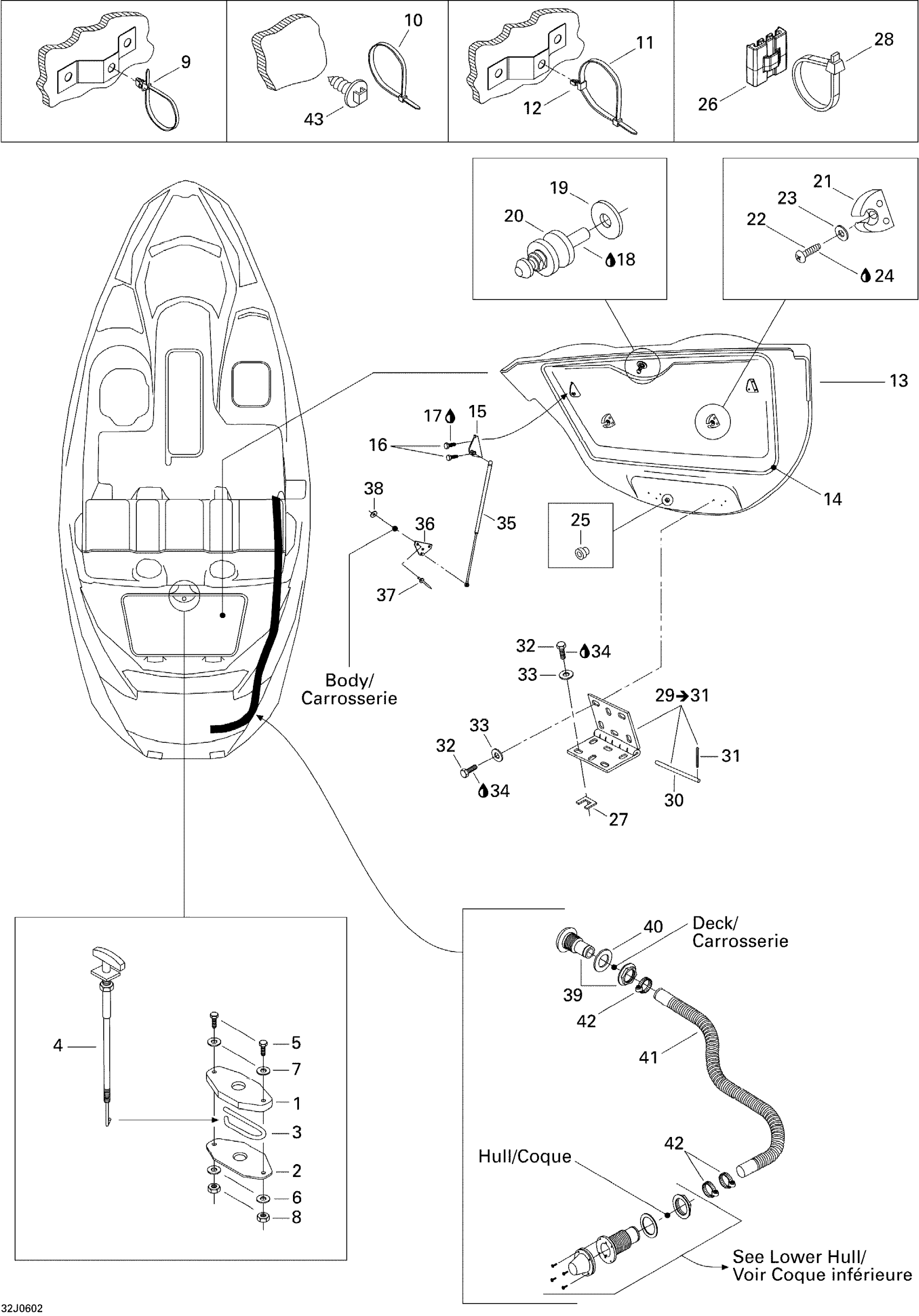

Sea-doo Sportster 4-TEC, Edition 1, 2006 09- Engine Compartment And Accessories Diagram

#

Description
Price

1

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

2

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH COVER CABLE - Call your local BRP dealership

204070081

Unavailable

5

Hex. Screw M6 X 35

207163560

$1.49

6

Flat Washer M6, Stainless

234062600

$0.77

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

TIE RAP WITH DART - Call your local BRP dealership

204130098

Unavailable

10

Tie-Rap 180 mm

414115200

$0.11

11

Tie-Rap 180 mm

414115200

$0.11

12

DART, BLACK - Call your local BRP dealership

204130099

Unavailable

13

Engine Cover

204072571

Unavailable

14

Was 293200017 Neoprene Seal

219704365

$149.99

15

Shock Bracket

204073074

$27.99

16

Hex. Screw M4 X 16 | Europe

207141660

$1.47

17

Loctite 243, 10 ml

293800060

$21.49

18

Loctite 243, 10 ml

293800060

$21.49

19

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

20

Latch Stud

291001420

Unavailable

21

Pole Support

291000642

Unavailable

22

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

23

Flat Washer 4 mm

234040600

$0.55

24

Loctite 243, 10 ml

293800060

$21.49

25

GROMMET - Call your local BRP dealership

293720017

Unavailable

26

Tie-Rap Mount

293750025

$1.25

27

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

28

Tie Wrap 142 mm

293750002

$1.25

29

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

30

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

31

Cotter Pin M2.5 X 12

204070205

Unavailable

32

Hex. Screw M6 X 25

207162560

$1.47

33

Stainless Flat Washer M6

234061600

$0.33

34

Loctite 243, 10 ml

293800060

$21.49

35

GAS SHOCK - Call your local BRP dealership

204071920

Unavailable

36

Shock Bracket

204071673

Unavailable

37

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

38

Flat Washer M5, Stainless

234051600

$0.77

39

FITTING - Call your local BRP dealership

293710060

Unavailable

40

GASKET - Call your local BRP dealership

292800106

Unavailable

41

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

42

Norma Clamp

293650074

$17.05

43

Mount Dart

293730040

$1.04
