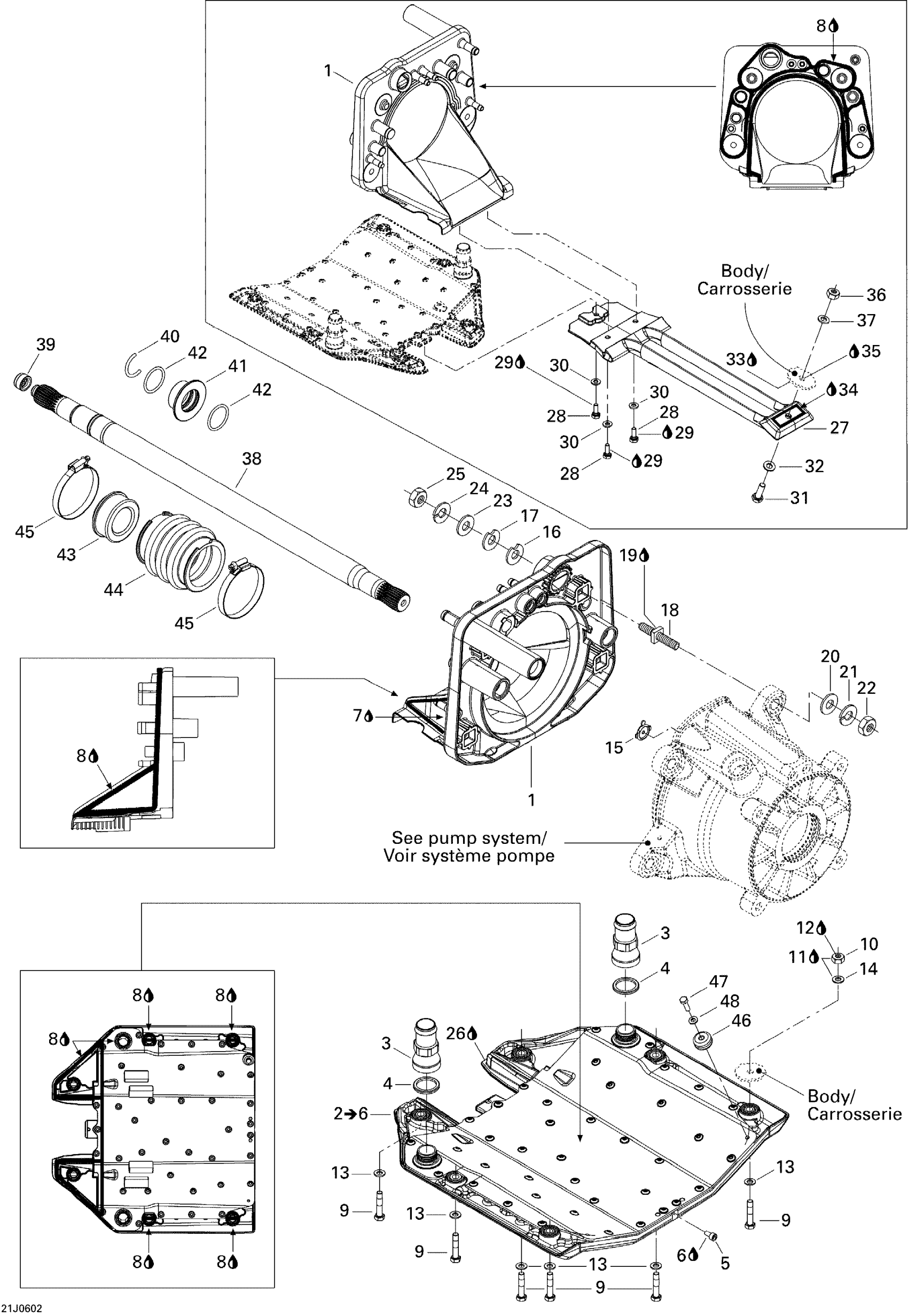

Sea-doo Sportster 4-TEC, Edition 1, 2006 05- Propulsion Diagram
#
1
PUMP SUPPORT - Call your local BRP dealership
204120314
Unavailable
2
Riding Plate | Includes 2 to 6
204120312
Unavailable
3
Straight Plastic Fitting
293710111
$8.47
4
O-Ring
293300121
$8.32
5
Socket Drain Plug M6 X 12
250500005
$16.49
6
Was 293800013 Loctite 56765
219704454
$65.99
7
Glue Tube, Loctite 454, 20 G
413708300
$60.99
8
Instant Gasket
219701421
$51.99
9
Hex. Screw M8 X 40
207084060
$2.22
10
Hex. Elastic Nut M8
232581600
$1.48
11
Silicone Sealant 51388, 300 ml
296000309
$36.99
12
Loctite 243, 10 ml
293800060
$21.49
13
Stainless, Flat Washer 8 mm
234081600
$0.55
14
Flat Washer 8 mm, Stainless
234082600
$2.43
15
Reducer This part replaces 291001887.
291004649
$17.49
16
Shim 0.3 mm
272000053
$11.49
17
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
18
Square Stud
250300022
$20.99
19
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
20
Flat Washer
211200051
$1.68
21
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
22
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
23
Flat Washer 10 mm, Stainless
234002600
$2.22
24
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
25
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
26
Instant Gasket
219701421
$51.99
27
PUMP GRATE, BLACK - Call your local BRP dealership
271001459
Unavailable
28
Hex. Screw M6 X 16
207161660
$1.59
29
Loctite 271, 10 ml
293800005
$26.99
30
Stainless Flat Washer M6
234061600
$0.33
31
Hex. Screw M8 X 40
207184060
$2.22
32
Stainless, Flat Washer 8 mm
234081600
$0.55
33
Silicone Sealant 51388, 300 ml
296000309
$36.99
34
Instant Gasket
219701421
$51.99
35
Silicone Sealant 51388, 300 ml
296000309
$36.99
36
Hex. Elastic Nut M8
232581600
$1.48
37
Stainless, Flat Washer 8 mm
234081600
$0.55
38
Drive Shaft
271001449
$296.99
39
Drive Shaft Plug
272000173
$8.68
40
C-Clip
271001575
$6.11
41
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
42
O-Ring
293300044
$1.05
43
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
44
Bellows
272000183
$28.99
45
Norma Clamp
293650077
$7.41
46
Anode Zinc
271001813
$18.99
47
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
48
Stainless Flat Washer M6
234061600
$0.33
