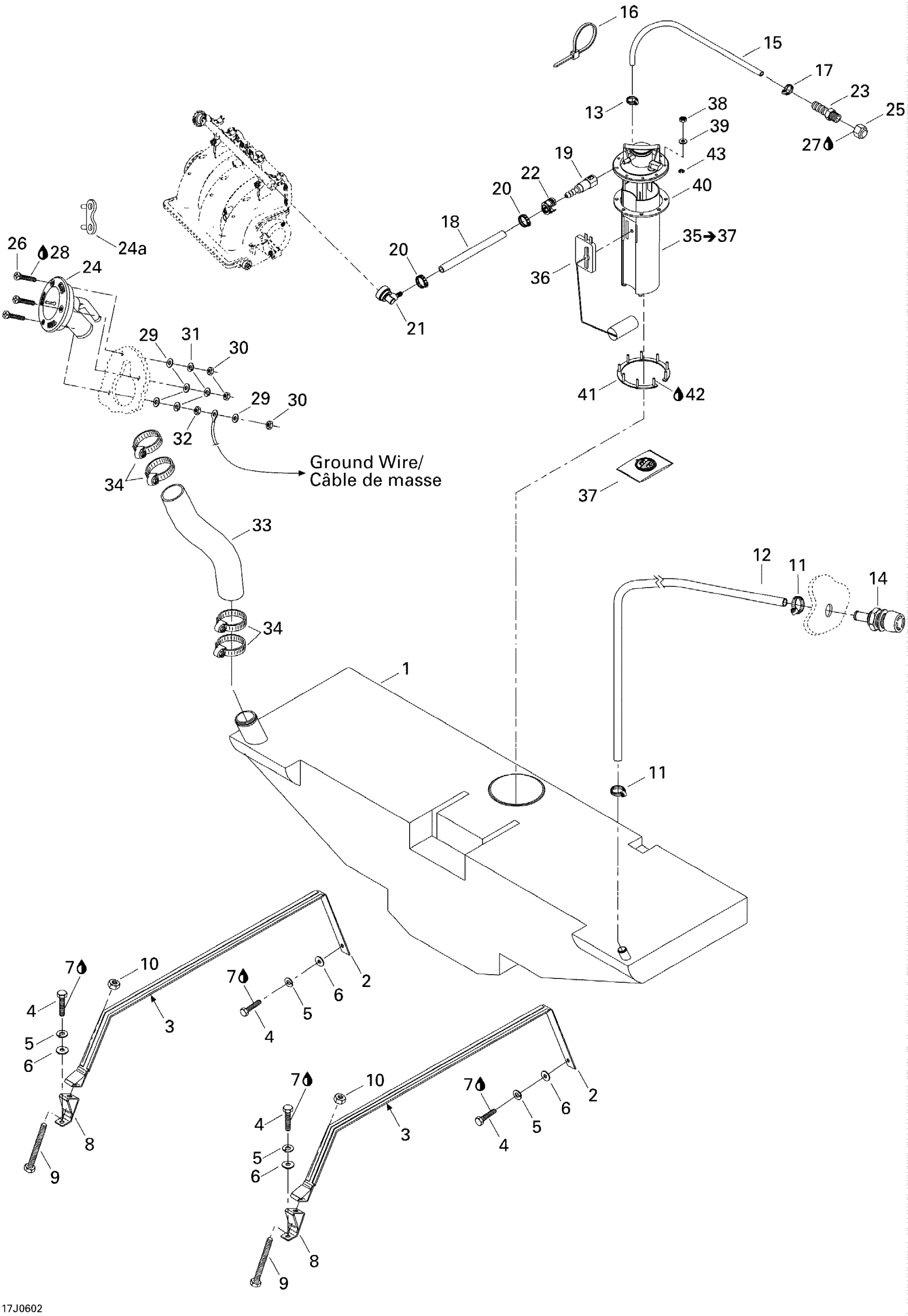

Sea-doo Sportster 4-TEC, Edition 1, 2006 Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership

204560326

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

3

PROTECTOR PAD - Call your local BRP dealership

204560185

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.58

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Loctite 271, 10 ml

293800005

$26.99

8

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

9

HEX. SCREW M8 X 35 - Call your local BRP dealership

207183560

Unavailable

10

Hex. Elastic Nut M8

232581600

$1.48

11

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

12

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

13

Tridon Gear Clamp

293650170

$1.99

14

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

15

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

16

Tie-Rap 173 mm

293750009

$1.04

17

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

18

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

19

CONNECTOR BOX - Call your local BRP dealership

275500428

Unavailable

20

Oetiker Clamp

293650011

$3.09

21

Elbow Fitting 90°

293710105

$14.22

22

STOPPER CONNECTOR - Call your local BRP dealership

275500429

Unavailable

23

COUPLER - Call your local BRP dealership

204560265

Unavailable

24

Fuel Filler Neck Ass'y

204560253

Unavailable

24a

FUEL CAP KEY - Call your local BRP dealership

219700344

Unavailable

25

Pipe Cap

204560263

Unavailable

26

Phillips Screw M5 X 3

208553060

Unavailable

27

Was 293800013 Loctite 56765

219704454

$65.99

28

Loctite 243, 10 ml

293800060

$21.49

29

Flat Washer M5, Stainless

234051600

$0.77

30

Hex. Nut M5

232051600

$1.15

31

Helical Lock Washer M5

234151601

$1.15

32

Hex. Nut M5

232051600

$1.15

33

NECK FILLER HOSE - Call your local BRP dealership

219700374

Unavailable

34

Norma Clamp

293650081

$12.18

35

FUEL PUMP MODULE ASSY - Call your local BRP dealership | Includes 20 to 20b

204560259

Unavailable

36

SENSOR LEVER - Call your local BRP dealership

270600051

Unavailable

37

Fuel Filter, Bosch

219700368

$39.99

38

Elastic Stop Nut 5 mm

232551200

$1.47

39

Flat Washer 5 mm, Stainless

234052400

$2.85

40

Gasket

293250088

$14.99

41

C-Ring, 9 Studs

275500679

$77.49

42

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

43

Circlip 5 mm

293370002

$5.50
