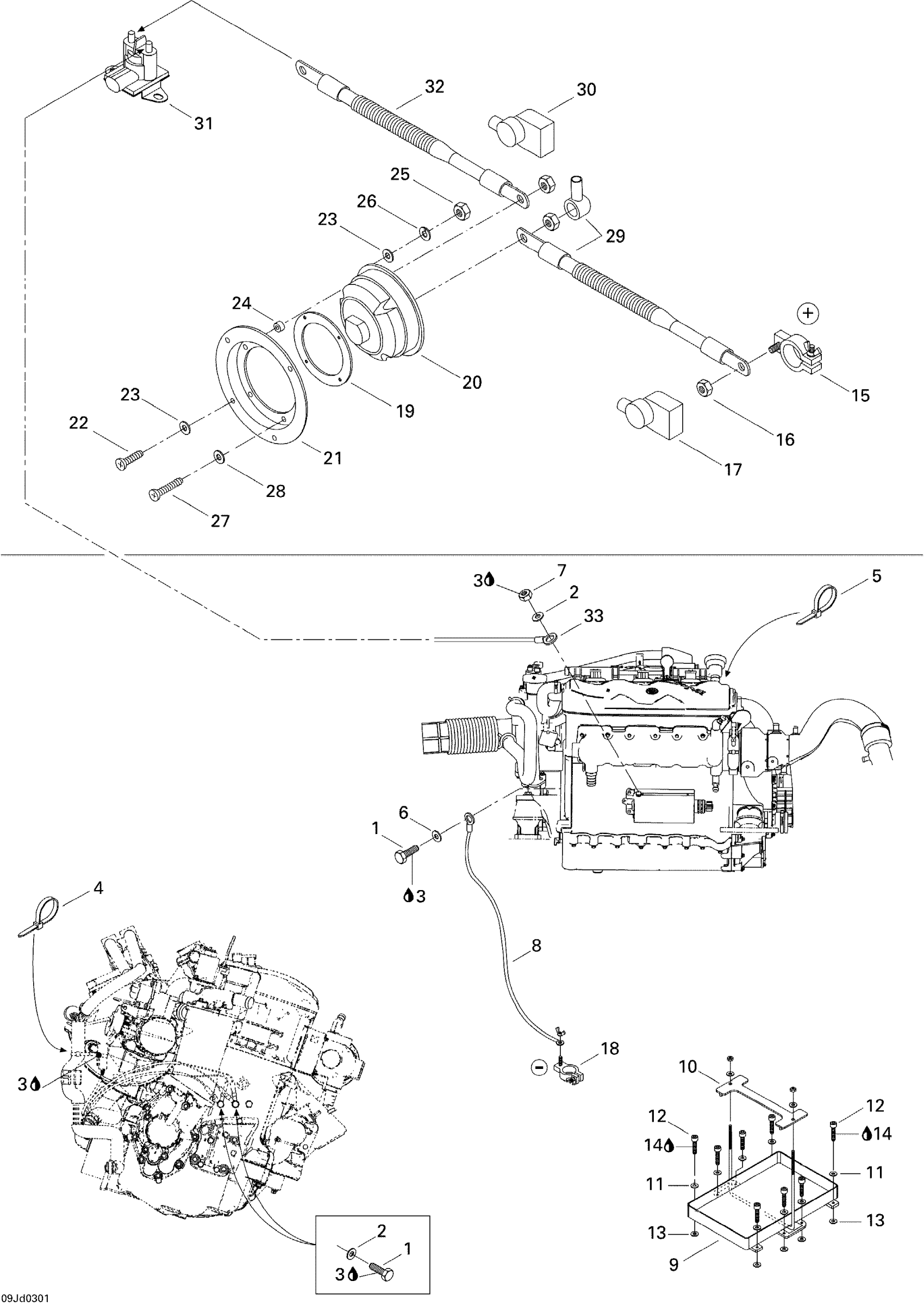

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2

Stainless Flat Washer M6

234061600

$0.33

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

Tie-Rap 180 mm

414115200

$0.11

5

Tie Wrap 142 mm

293750002

$1.25

6

Flat Washer M6, Stainless

234062600

$0.77

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

9

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

10

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

11

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

12

Socket Head Screw M6 X 25

205062560

$1.69

13

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

14

Loctite 243, 10 ml

293800060

$21.49

15

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

16

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

17

RED BOOT - Call your local BRP dealership

204470269

Unavailable

18

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

19

SWITCH ADAPTOR - Call your local BRP dealership

204470813

Unavailable

20

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

21

SWITCH SUPPORT - Call your local BRP dealership

204470259

Unavailable

22

SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership

205455060

Unavailable

23

Flat Washer M5, Stainless

234051600

$0.77

24

NYLON SPACER - Call your local BRP dealership

204470330

Unavailable

25

Hex. Nut M5

232051600

$1.15

26

Helical Lock Washer M5

234151601

$1.15

27

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

28

Flat Washer 4 mm, Stainless

234041600

$1.15

29

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

30

RED BOOT - Call your local BRP dealership

204470269

Unavailable

31

Starter Relay

278003012

$42.49

32

RED CABLE - Call your local BRP dealership

204470799

Unavailable

33

RED CABLE - Call your local BRP dealership

204470798

Unavailable
