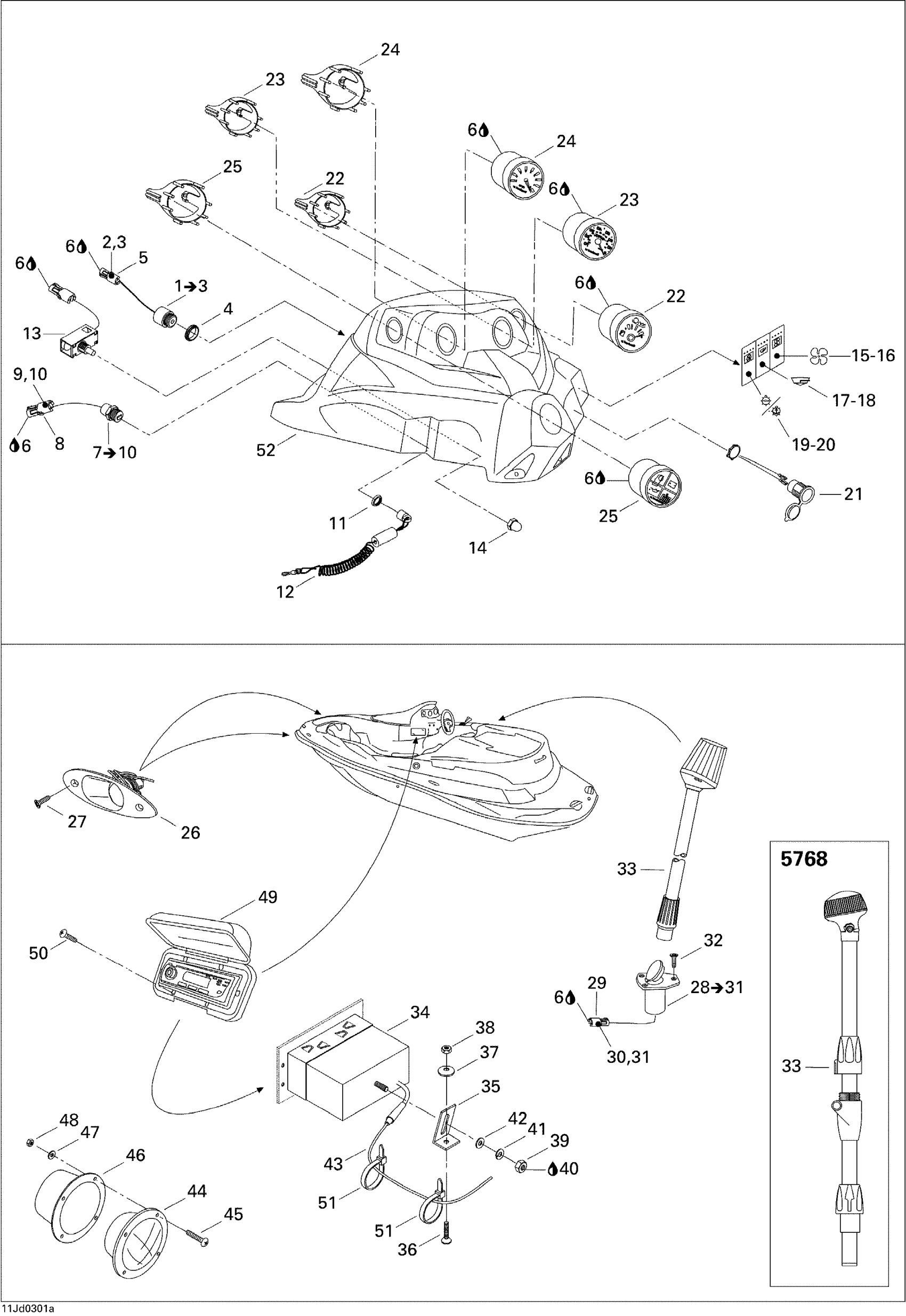

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Electrical Accessories 1 Diagram

#

Description
Price

1

BUZZER ASS?Y - Call your local BRP dealership | INCLUDES 1 TO 3

278000881

Unavailable

2

Male Terminal | XT Models

278000222

$3.19

3

Wire Seal

278000218

$4.39

4

Buzzer Nut

278000707

Unavailable

5

Female Housing, 2 Circuits

278000217

$9.59

6

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

7

Safety Switch This part replaces 278002325.

278002773

$114.99

8

Male Housing, 3 Circuits

278000273

$9.59

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Safety Nut (DESS Switch)

278002963

$3.28

12

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

13

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

14

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

15

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

16

Gasket

204470132

Unavailable

17

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

18

Gasket

204470132

Unavailable

19

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

20

Gasket

204470132

Unavailable

21

DC Outlet

710001248

$37.99

22

Fuel Gauge

204470775

Unavailable

23

Speed Gauge

204470776

Unavailable

24

Tachometer

204470777

Unavailable

25

ENGINE WARNING GAUGE - Call your local BRP dealership

204470778

Unavailable

26

LATERAL LIGHT - Call your local BRP dealership

202000455

Unavailable

27

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

28

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

29

Female Housing, 2 Circuits

278000217

$9.59

30

Male Terminal | XT Models

278000222

$3.19

31

Wire Seal

278000218

$4.39

32

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

33

Rear Light Pole | Models With Tower

204470842

Unavailable

33

Rear Light Pole | Models Without Tower, Includes 39 to 41

204470792

Unavailable

34

Compact Disc Radio

204470682

Unavailable

35

RADIO SUPPORT - Call your local BRP dealership

204470837

Unavailable

36

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

37

Flat Washer M6, Stainless

234062600

$0.77

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

Hex. Nut M5

232051600

$1.15

40

Loctite 243, 10 ml

293800060

$21.49

41

Helical Lock Washer M5

234151601

$1.15

42

Flat Washer 5 mm, Stainless

234052600

$0.77

43

Antenna

204470380

Unavailable

44

Black, Speaker

204470818

Unavailable

45

Phillips Screw M4 X 30

250000144

Unavailable

46

Speaker Protector

204470809

Unavailable

47

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

48

Elastic Stop Nut M4

232541600

$1.15

49

Radio Cover

204470535

Unavailable

50

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

51

Tie Wrap 94 mm | 4X4

293750001

$1.03

52

Upper Dashboard Ass’Y

204470797

Unavailable
