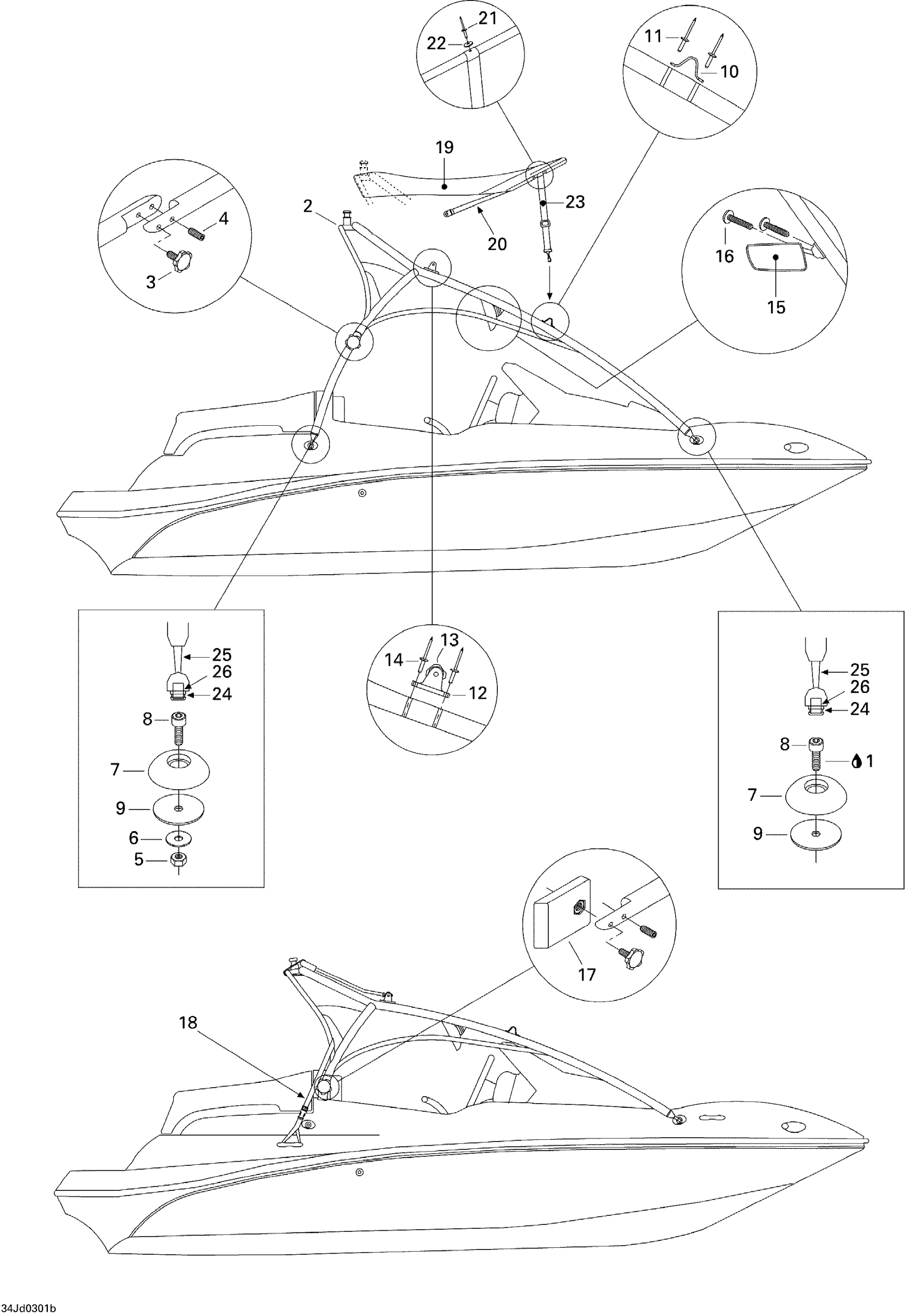

Sea-doo Sportster 4 TEC, 5768/5770, 2003 09- Tower and Bimini Top Diagram

#

Description
Price

1

Loctite 243, 10 ml

293800060

$21.49

2

Tower

204071824

Unavailable

3

Fluted Knob

204071433

Unavailable

4

SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership

204100094

Unavailable

5

LOCK NUT 1/2? - Call your local BRP dealership

204100131

Unavailable

6

FENDER WASHER - Call your local BRP dealership

204100132

Unavailable

7

Support Tower

204071816

Unavailable

8

Socket Head Screw 1/2-13 X 2”

204100130

Unavailable

9

Mount Gasket

204071823

Unavailable

10

STRAP EYE - Call your local BRP dealership

204071845

Unavailable

11

RIVET 5/32 X 3/8 SS - Call your local BRP dealership

204130057

Unavailable

12

BIMINI BRACKET - Call your local BRP dealership

204071846

Unavailable

13

Knob, Black

204071847

Unavailable

14

RIVET 3/16 X 1/2 SS - Call your local BRP dealership

204130058

Unavailable

15

SKI MIRROR - Call your local BRP dealership This part replaces 204071420.

295100386

Unavailable

16

PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership

204100129

Unavailable

17

Spacer

204071829

Unavailable

18

TOWER STRAP - Call your local BRP dealership

204071830

Unavailable

19

Bimini Top

204071840

Unavailable

20

Bimini Frame

204071841

Unavailable

21

Pop Rivet 3/16"

293150039

$1.49

22

Not Available As Spare Part - Friction Washer

Unavailable

23

FRONT STRAP - Call your local BRP dealership

204071842

Unavailable

24

Turret

204071927

Unavailable

25

Pivot Screw

204100140

Unavailable

26

Bushing

204130082

Unavailable

27

BIMINI TOP BOOT - Call your local BRP dealership

204071843

Unavailable
