Description

Price

1

Backrest Ass'y | Includes items 1 to 2

204612271

Unavailable

2

Pop Rivet 3/16"

293150005

$0.52

3

Dart

293730021

$7.79

4

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

5

Pop Rivet 3/16"

293150043

$2.09

6

Phillips Screw M5 X 35

208653560

$2.22

7

Flat Washer 5 mm, Stainless

234052400

$2.85

8

Hex. Elastic Nut M5 | X

232551600

$1.15

9

Seat Ass’Y

204612631

Unavailable

10

LH Armrest Ass’y | Port Side

204612273

Unavailable

10

RH Armrest Ass’y | Standboard

204612274

Unavailable

11

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

12

Stainless Flat Washer M6

234061600

$0.33

13

Pop Rivet 3/16"

293150043

$2.09

14

Elbowrest Ass'y

204612275

Unavailable

15

Cushion Cover Ass’y

204612536

Unavailable

16

Dart

293730021

$7.79

17

Staple

293730005

Unavailable

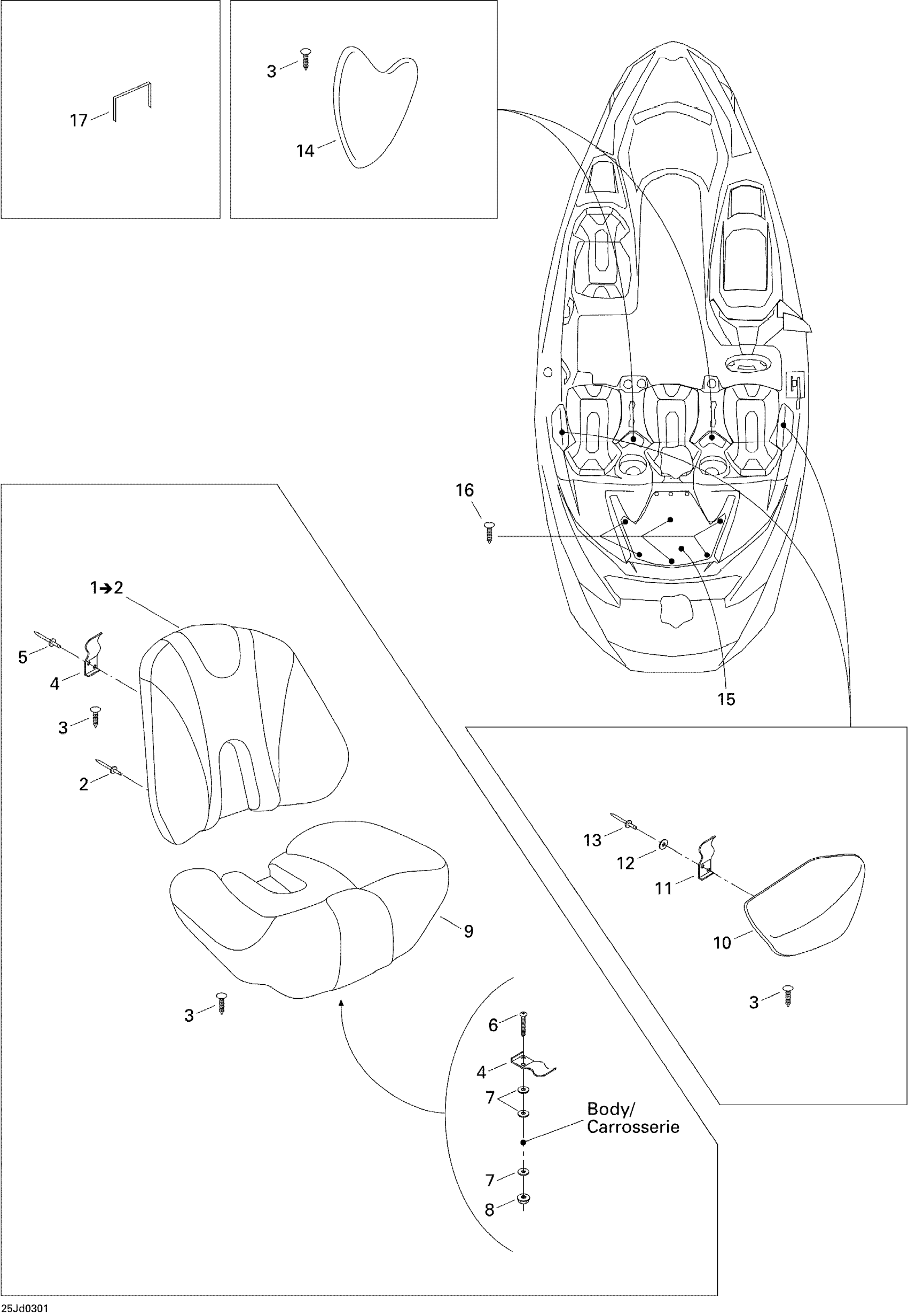

Sea-doo Sportster 4 TEC, 5768/5770, 2003 09- Seats Diagram

Backrest Ass'y | Includes items 1 to 2

Pop Rivet 3/16"

Dart

SEAT SUPPORT - Call your local BRP dealership

Pop Rivet 3/16"

Phillips Screw M5 X 35

Flat Washer 5 mm, Stainless

Hex. Elastic Nut M5 | X

Seat Ass’Y

LH Armrest Ass’y | Port Side

RH Armrest Ass’y | Standboard

SEAT SUPPORT - Call your local BRP dealership

Stainless Flat Washer M6

Pop Rivet 3/16"

Elbowrest Ass'y

Cushion Cover Ass’y

Dart

Staple
