Partiron

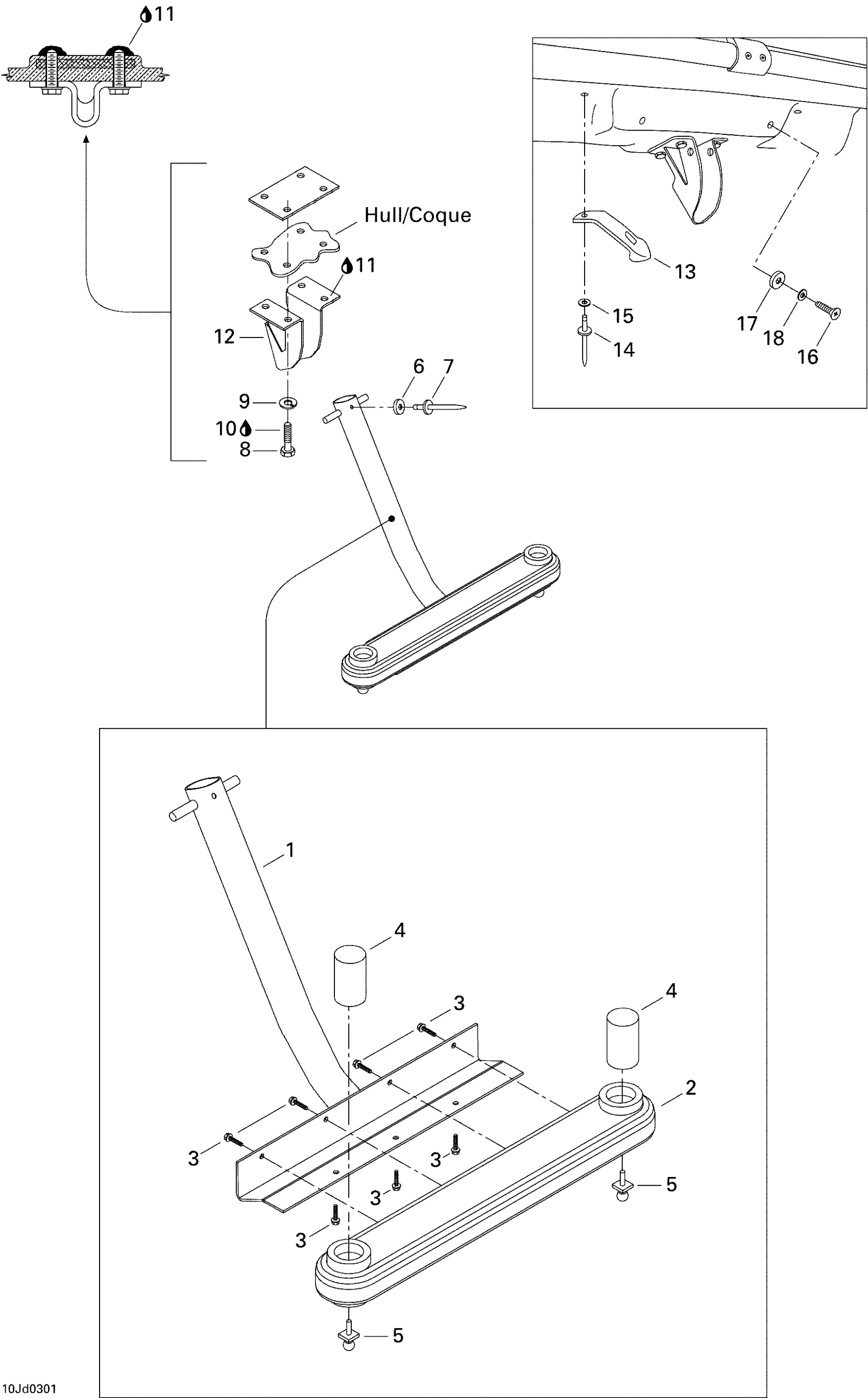

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Rear Ladder Diagram

#

Description
Price

1

STEP, WELD - Call your local BRP dealership

204060811

Unavailable

2

Step

291001279

Unavailable

3

Flange Screw K40 X 14

241641460

Unavailable

4

Cap

291001280

Unavailable

5

RETAINING KNOB - Call your local BRP dealership

293000085

Unavailable

6

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

7

Pop Rivet 3/16"

293150043

$2.09

8

Hex. Screw M8 X 30

207183060

$1.58

9

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

10

Loctite 243, 10 ml

293800060

$21.49

11

Silicone Sealant 51388, 300 ml

296000309

$36.99

12

Ladder Bracket

204060829

Unavailable

13

Hood Latch

570027100

$13.49

14

Pop Rivet 3/16"

293150013

$1.37

15

Flat Washer 5 mm, Stainless

234052600

$0.77

16

Phillips Screw M3.5 X 13

202000204

Unavailable

17

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

18

Flat Washer M3, Stainless

234032600

$0.55
