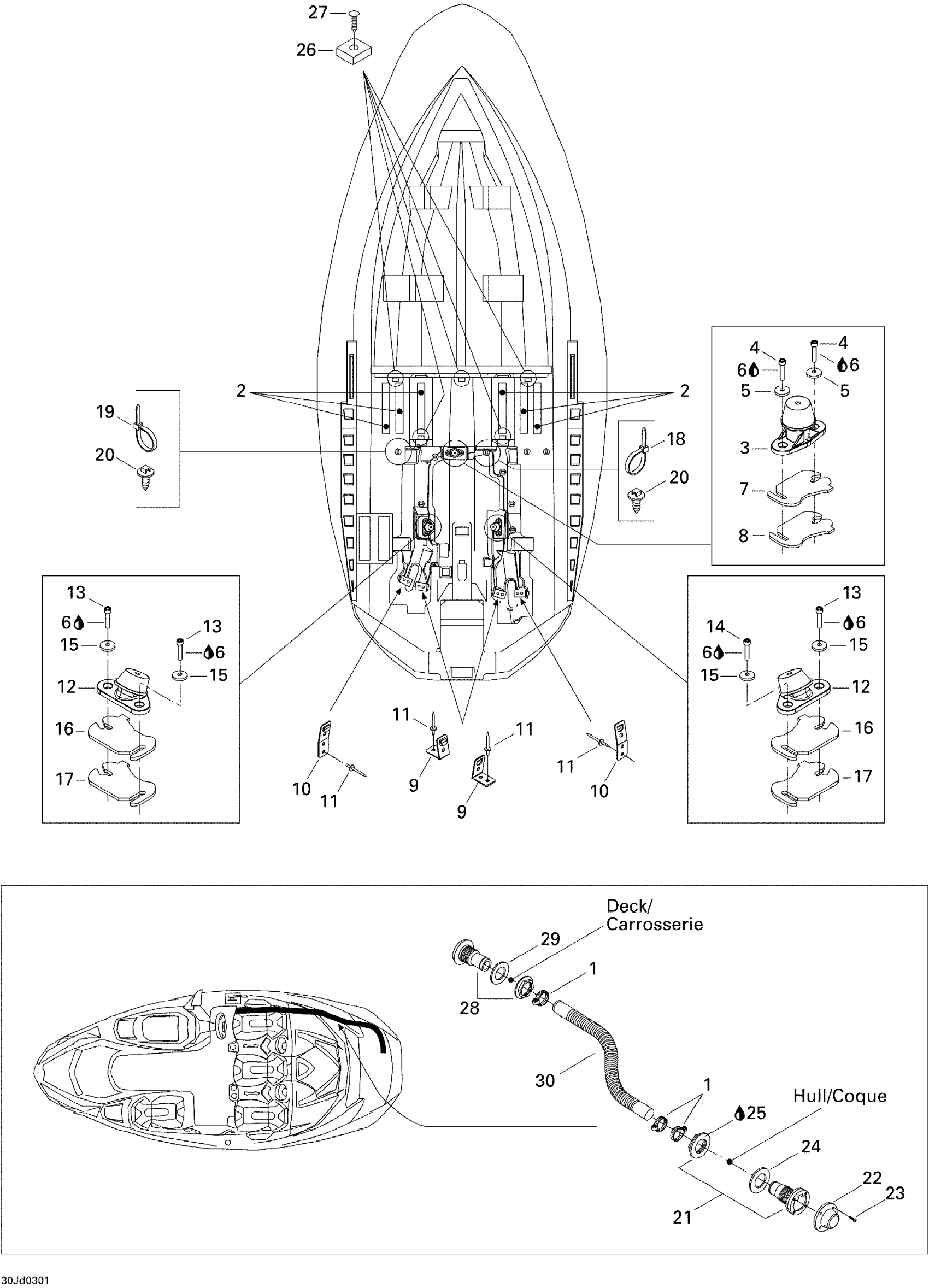

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Lower Hull Diagram

#

Description
Price

1

Norma Clamp

293650074

$17.05

2

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

3

Engine Support Ass'y

270001096

$97.99

4

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

5

Cone Washer

250200018

$5.61

6

Loctite 243, 10 ml

293800060

$21.49

7

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

8

Shim 1.3 mm

270000762

$12.99

9

Strap Clip 90°

204060017

Unavailable

10

Strap Clip

293850030

$11.12

11

Pop Rivet 3/16"

293150088

$0.99

12

Engine Support Ass'y

270001081

$109.99

13

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

14

Socket Head Screw M8 X 45

205084560

$3.59

15

Cone Washer

250200018

$5.61

16

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

17

Shim 1.3 mm

270000762

$12.99

18

Tie Wrap 368 mm

293750008

$1.04

19

Tie-Rap 180 mm

414115200

$0.11

20

Mount Dart

293730040

$1.04

21

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

22

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

23

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

24

GASKET - Call your local BRP dealership

292800106

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

$36.99

26

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

27

Black, Dart

293730006

$0.99

28

FITTING - Call your local BRP dealership

293710060

Unavailable

29

GASKET - Call your local BRP dealership

292800106

Unavailable

30

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable
