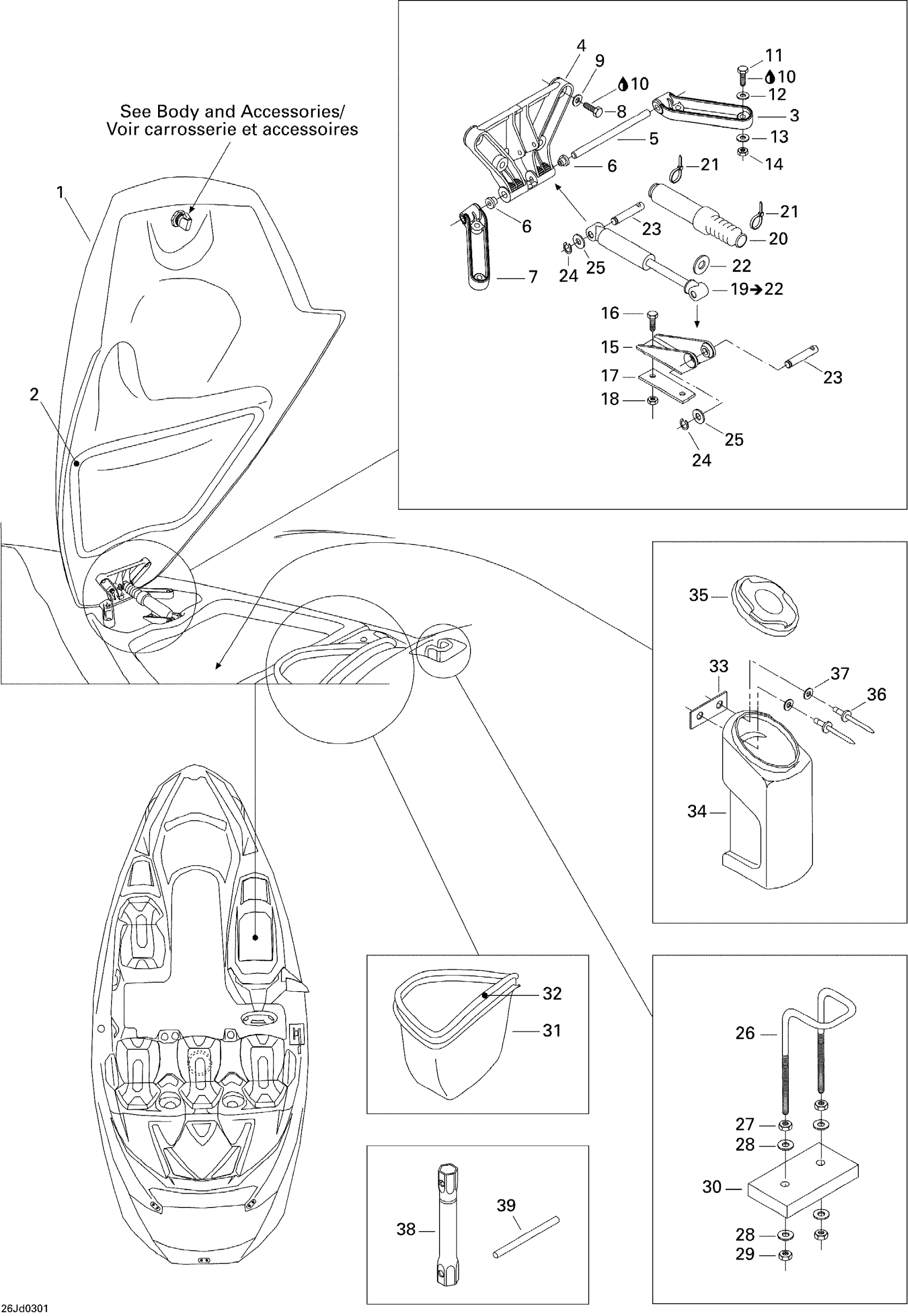

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Front Storage Compartment Diagram

#

Description
Price

1

STORAGE ASS?Y - Call your local BRP dealership

204620251

Unavailable

2

Seal Tray 1000Mm Long

219704368

$13.99

3

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

4

COVER HINGE - Call your local BRP dealership

269700038

Unavailable

5

AXLE - Call your local BRP dealership

269700024

Unavailable

6

CUSHION - Call your local BRP dealership

293350016

Unavailable

7

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

8

Hex. Forming Screw M6 X 20

207162060

$1.29

9

Stainless Flat Washer M6

234061600

$0.33

10

Loctite 243, 10 ml

293800060

$21.49

11

Hex. Screw M6 X 35

270063560

Unavailable

12

Stainless Flat Washer M6

234061600

$0.33

13

Flat Washer M6, Stainless

234062600

$0.77

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

SHOCK SUPPORT - Call your local BRP dealership

291000855

Unavailable

16

Hex. Screw M6 X 25

207162560

$1.47

17

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

18

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Shock-Gas This part replaces 269501864.

269501993

$56.99

20

BELLOW - Call your local BRP dealership

291000919

Unavailable

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

Washer

211200034

Unavailable

23

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

24

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

25

Stainless, Flat Washer 8 mm

234081600

$0.55

26

Hook

204620151

Unavailable

27

Hex. Nut M6

232061600

$1.15

28

Flat Washer M6, Stainless

234062600

$0.77

29

Hex. Elastic Stop Nut M6

232561600

$1.15

30

REINFORCEMENT PLATE - Call your local BRP dealership

204620270

Unavailable

31

GLOVE BOX - Call your local BRP dealership

269501121

Unavailable

32

NEOPRENE SEAL 1M/3.28FT - Call your local BRP dealership

204130049

Unavailable

33

GASKET - Call your local BRP dealership

293250037

Unavailable

34

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

35

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

36

Pop Rivet 3/16"

293150008

$0.50

37

Flat Washer 5 mm, Stainless

234052600

$0.77

38

Socket Wrench

529035731

Unavailable

39

Steel Bar

204630051

Unavailable
